7in video internal unit plug-in supply - K40912


ELVOX Door entry / Exclusive / Exclusive

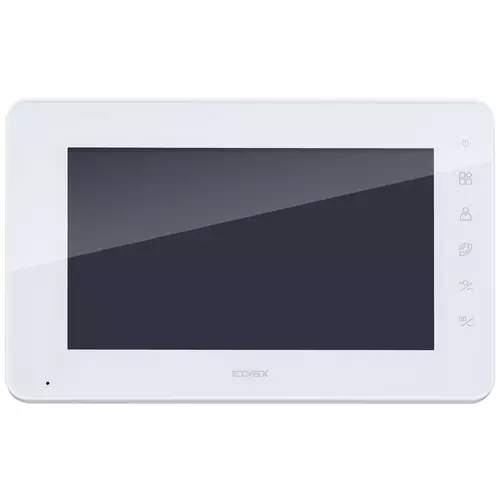

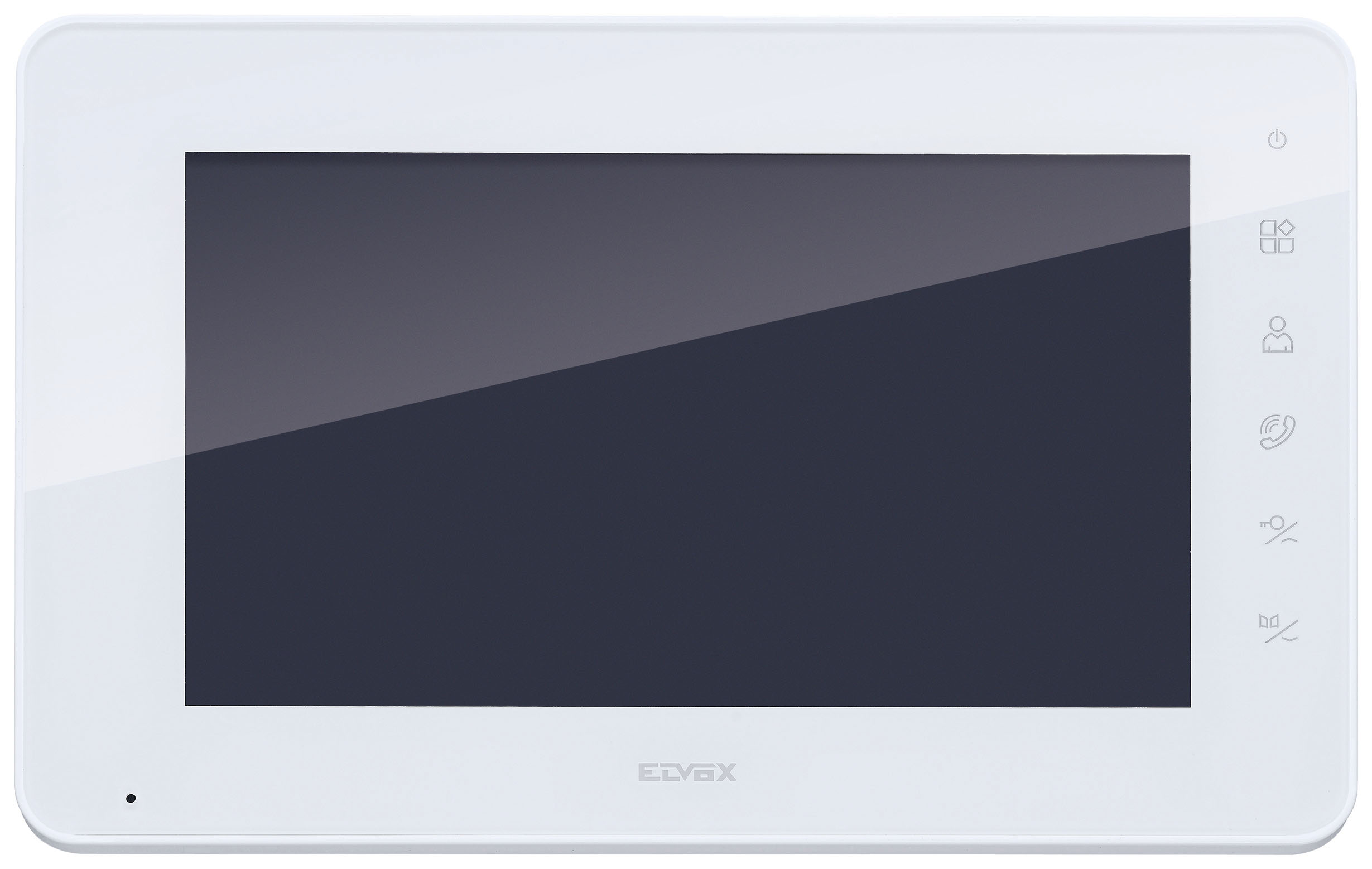

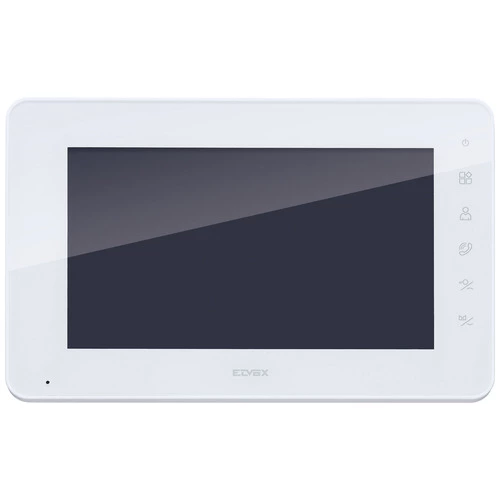

7in video internal unit plug-in supply

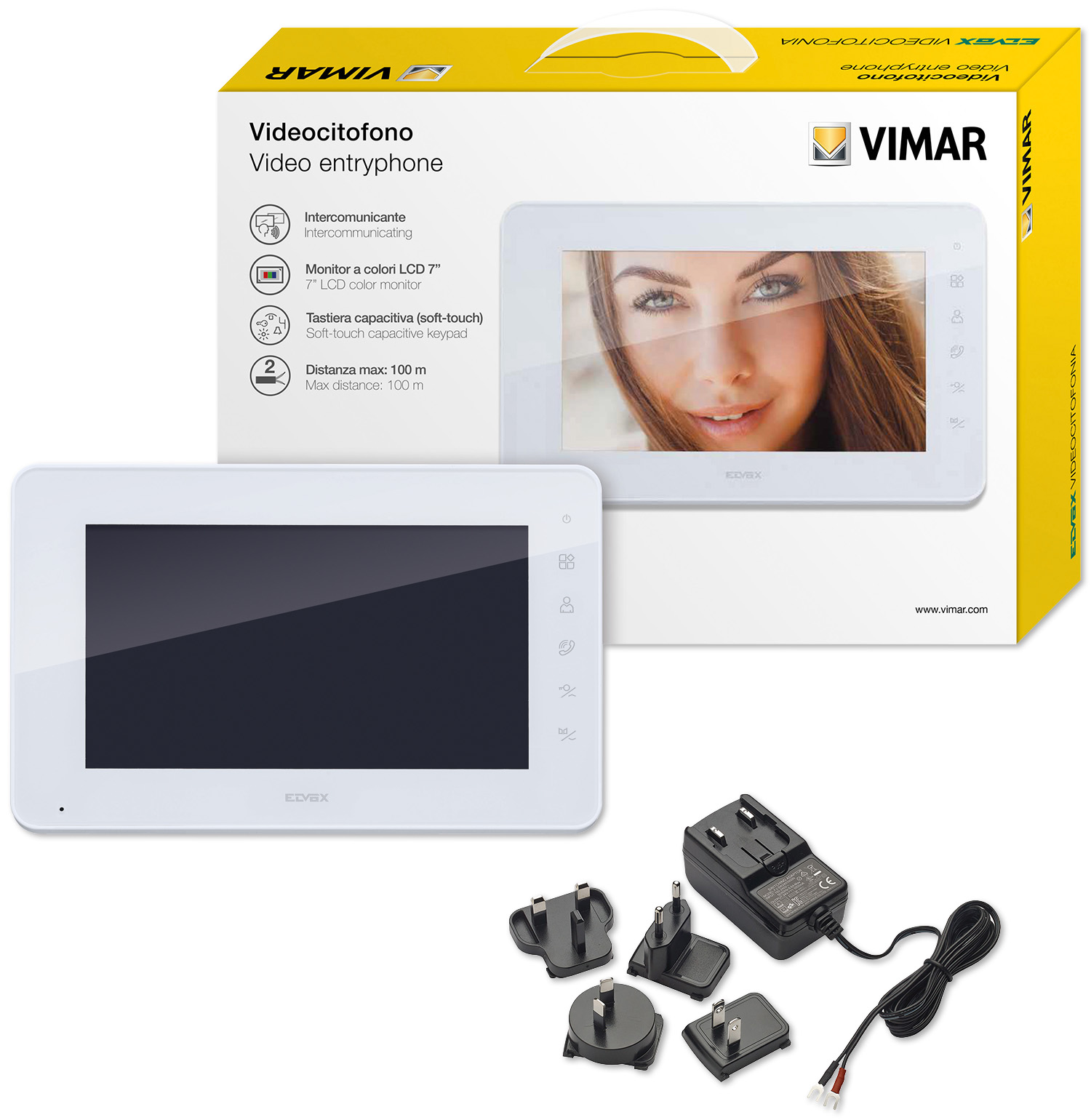

Additional hands-free LCD 7in monitor with capacitive keypad for video door entry kit, 1 24 Vdc 1 A supply unit with interchangeable plugs (EU, BS, US, AU), complete with surface mounting fixing brackets

  • 7˝ monitor with power supply unit; can be teamed with video entryphone kits K40910, K40911, K40915 or K40916
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function
  • Polished and shiny dirt-proof surfaces

Product Status
3 - Active

Class group
Communication technique
Monitor door communication

00. CE Marking - EU

19. NOM - Mexico

28. NSW / RCM - Australia

37. Marking - Morocco

Minimum order quantity: 1 NR


Barcode Qty 1 NR
1 NR
27.5x6.2x19 [cm]
779.5 [g]
Barcode Qty 8 NR
8 NR
56.4x28.8x23 [cm]
6,920 [g]
Question: What are the dimensions of the monitor fixing bracket?
Answer: The dimensions of the internal monitor fixing bracket are 9.6 cm by 5.6 cm

Didn't find the answer you were looking for?

Ask a question


Codice QR scheda articolo


Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
