One-family kit 7in video plug-in supply - K40910

Pdf

K40910
ELVOX Door entry system / Other video door entry systems / Video / Video kits

One-family kit 7in video plug-in supply

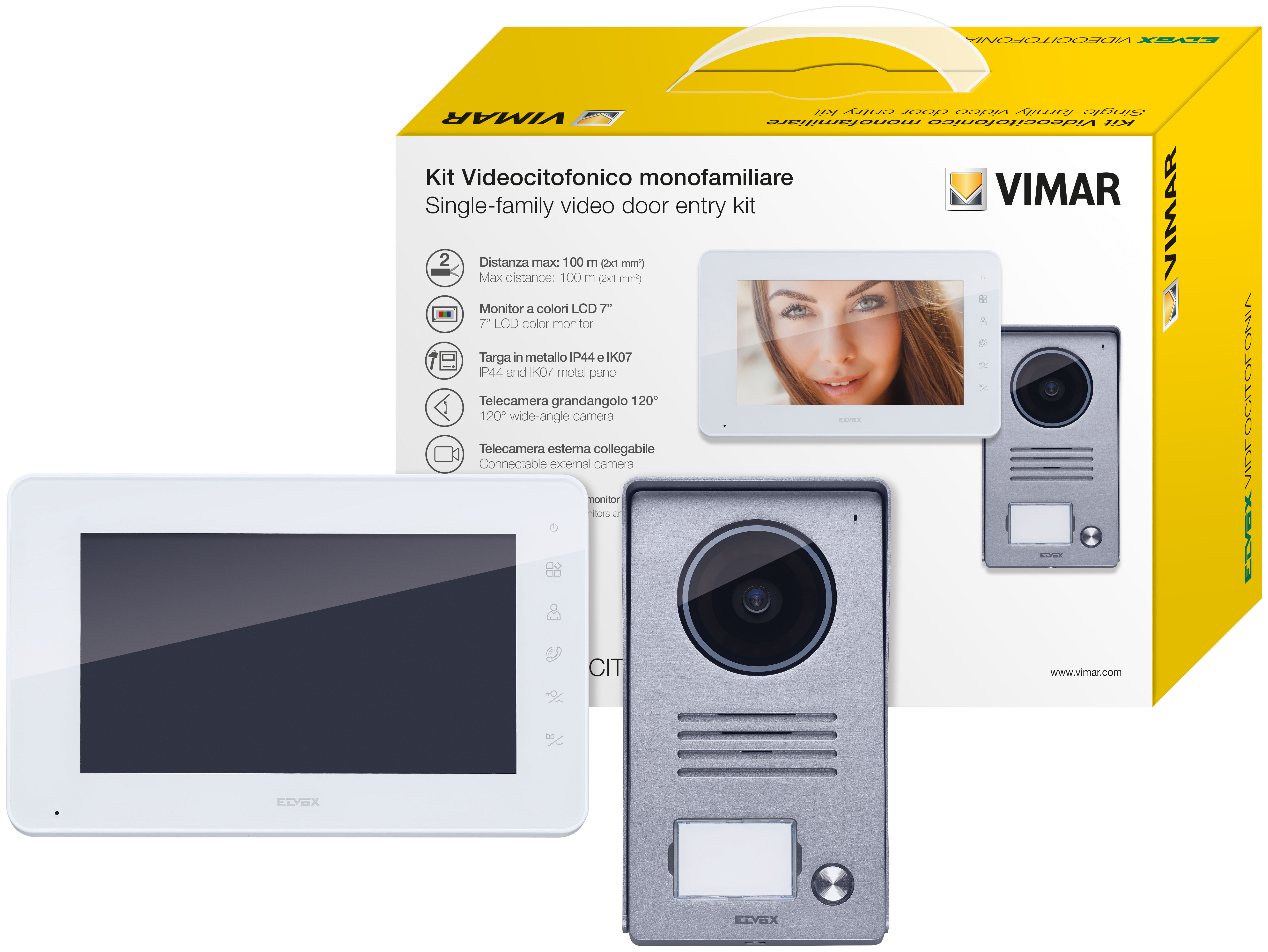

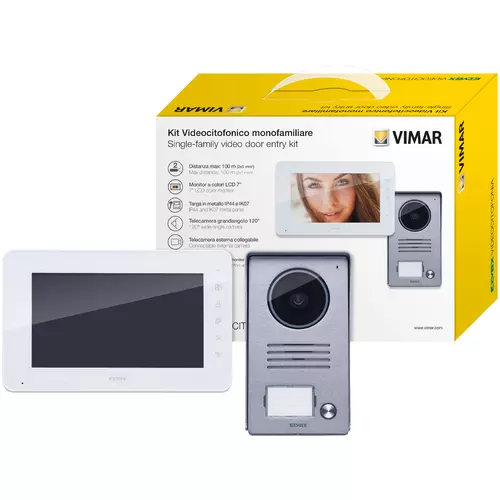

Video door entry kit containing 1 hands-free 7in LCD video entryphone with capacitive keypad, 1 1-button audio/video entrance panel with rainproof cover, 1 24 Vdc 1 A supply unit with interchangeable plugs (EU, BS, US, AU)complete with surface mounting fixing brackets

  • The kits are ready to use and do not require any particular programming; maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Can be connected to an external camera for video surveillance
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function

Product Status
3 - Active

You may also be interested in

Sheets, Manuals, Documentation

Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177,80 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

00. CE Marking - EU

19. NOM - Mexico

35. RCM - Australia

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406306241
1 NR
26.5x10.8x20 [cm]
1,403.5 [g]
Barcode Qty 4 NR
8013406307248
4 NR
45.5x28.3x23.2 [cm]
6,040 [g]
Question: Can other devices be added to kit K40910?
Answer: Yes. The system is expandable and up to 3 monitors (including the one in the kit) can be connected for each dwelling, along with 2 external entrance panels (including the one in the kit). Please remember that in the event of additional devices, such as monitors or entrance panels, you will need to modify/reconfigure the addresses according to the instructions provided in the manual.
Question: Can I replace the plug power supply unit supplied with a DIN rail?
Answer: Definitely, you can use art. 40103 taking care you arrange one for each monitor.
Question: Do I get an acoustic confirmation at the entrance panel when I make a call?
Answer: The entrance panel ringtone rings to provide acoustic confirmation of the call; if you cannot hear it, you need to check that the volume on the entrance panel speaker hasn’t be set to zero.
Question: Can I open the gate (or perform actuation controls) with the monitor switched off?
Answer: No, to control actuations, a call from the entrance panel or alternatively the monitor self-start is necessary.
Question: Can an external push button be connected to control the electrical lock (gate opening)?
Answer: No, this function is not envisaged.
Question: Can an additional ringtone be connected?
Answer: No, this function is not envisaged.
Question: Can the number of ringtone cycles during a call be modified?
Answer: No, the number of cycles cannot be modified, but the volume and melody can be modified (among the 6 available for selection).
Question: Can normal entryphones be connected to the KIT?
Answer: No, this function is not envisaged.

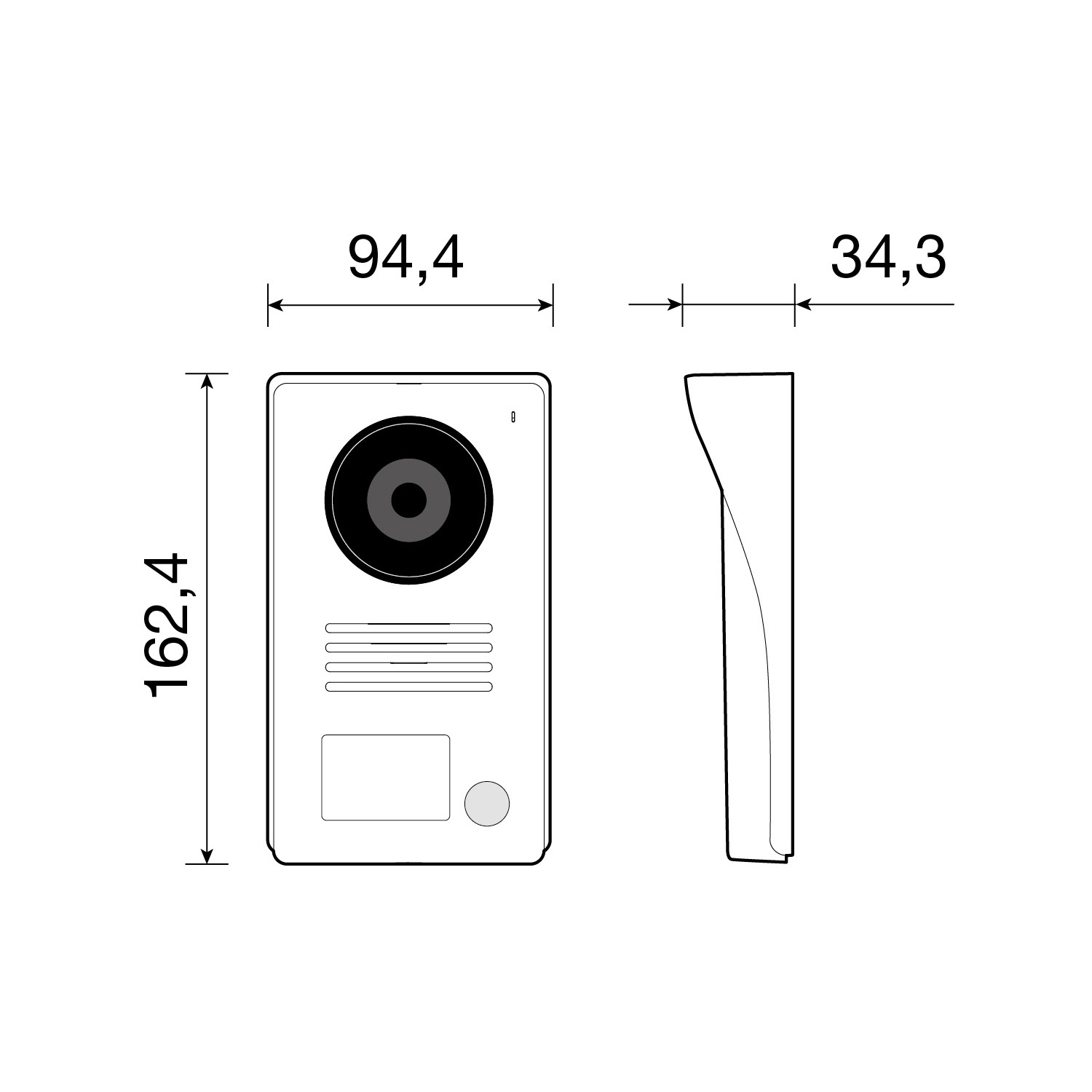

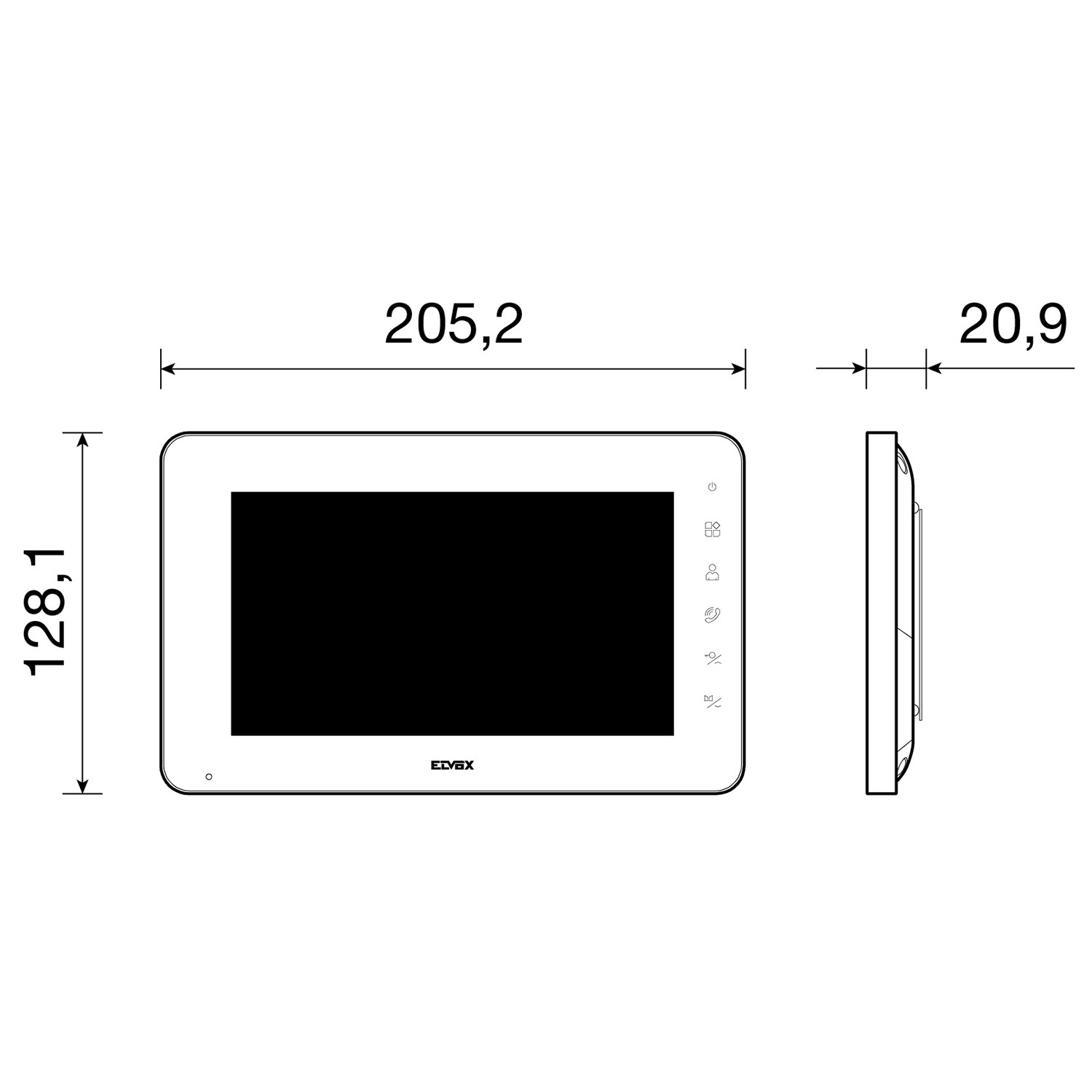

Question: What are the dimensions of the monitor fixing bracket?
Answer: The dimensions of the internal monitor fixing bracket are 9.6 cm by 5.6 cm
Question: Can the call be remote managed from a smartphone?
Answer: No, kit K40910 does not offer this possibility. For remote management from a smartphone you should opt for K40945.
Question: Can remote management of calls from a smartphone be activated by adding a K40947 to K40910?
Answer: No, this isn’t possible.
Question: Can an external camera be inserted?
Answer: Yes, a CCTV camera (optional) can be installed at the CCTV and GND terminals of the outdoor station The Vimar code is 46CAM.136B.8 Maximum cable length: 100 m with SYV75-3/RG59 cable˝
Question: Which cable should I use for the connection?
Answer: The cable to use for the connections depends on the distances. Depending on the distances to cover between the external entrance panel and the last internal video entryphone, you should identify the cross-section of the cable, specifically: Minimum cross sectional area up to 50m • 0.75 mm2 Minimum cross sectional area up to 100m •1 mm2 Distances over 100 m cannot be covered Maximum cable length for electrical lock control and voltage-free contact control: 30 m.
Question: At what height should the external entrance panel be installed?
Answer: Greater performance is ensured with the installation of the entrance panel at a height of approximately 1.6 m.
Question: Can external cameras connected to the KIT be consulted without a call at the entrance panel?
Answer: Yes, simply perform the monitor self-start and the camera can be consulted from the monitor by following the consultation sequence (both in entrance panel call and in self-start), which is: -CAM1 (entrance panel camera 1)-CCTV1 (optional camera 1) -CAM2 (entrance panel camera 2)-CCTV2 (optional camera 2).The sequence of display of the entrance panel cameras or cameras outside the control is chosen on the monitor. This sequence cannot be modified so the first image shown remains the one from the entrance panel.
Question: What kind of external camera can I connect to this kit?
Answer: The Vimar 46CAM.136B.8 camera can be connected to the CCTV and GND terminals of the outdoor station; Maximum length: 100 m with SYV75-3/RG59 cable.
Question: Can a handset be added to kit K40910 instead of a second monitor?
Answer: No, only another monitor can be added to kit K40910
