IP55 cover for V70006 - V72106

Pdf
V72106

Enclosures and mounting boxes / Junction flush mounting boxes / Covers

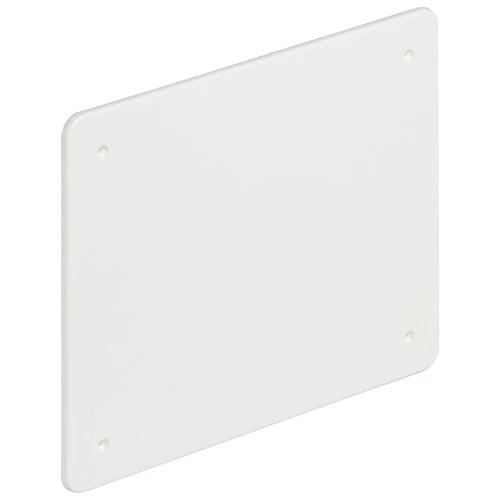

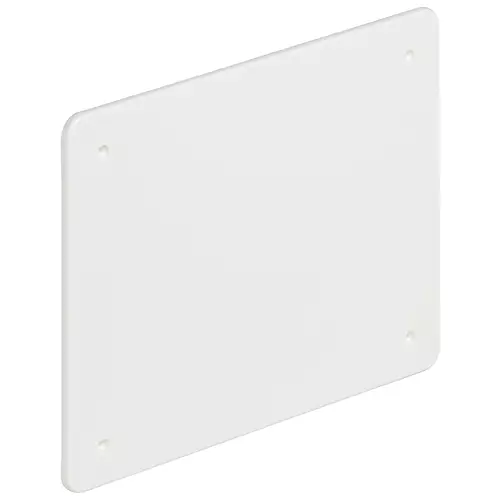

IP55 cover for V70006
IP55 cover for V70006 flush mounting junction box, white

Product Status
3 - Active

You may also be interested in

Class group
Connection devices
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
0 mm
Length
179,00 mm
For box-/housing length
154,00 mm
Width
220,00 mm
For box-/housing width
195 mm
Depth
4,50 mm
Shape
Rectangular
Type of fastening
Screw cap
Model
Construction protective cover
Material
Plastic
Halogen free
Yes
Colour
White
With screws
Yes
Sealable
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352590328
1 NR
22x17.9x8.2 [cm]
121.8 [g]
Barcode Qty 20 NR
8007352590335
20 NR
27x23x12.5 [cm]
2,583 [g]
