Smart systems&products / Smart climate control / Surface mounting components / Non-modular components

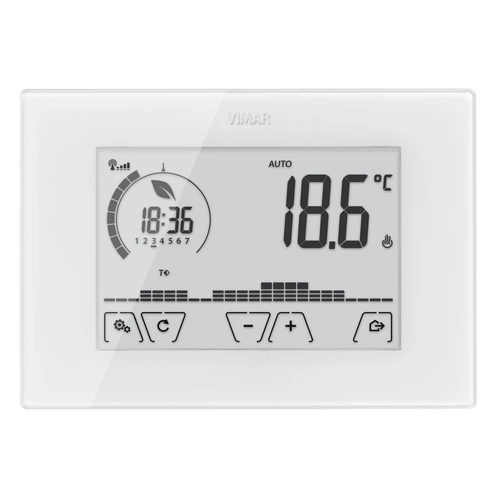

Surf.Wi-Fi-touch-thermostat white
Electronic Wi-Fi touchscreen thermostat for local control and advanced management of temperature (heating and air-conditioning) in ON/OFF and PID modes, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for external temperature sensor, change-over relay output 5(2) A 230 V~, power supply 230 V~ 50/60 Hz, white LED backlighting, for surface mounting
Product Status
9 - Discontinued
| Question: | Is the touchscreen thermostat 02907 battery operated? |
|---|---|
| Answer: | No. It needs to be powered at the mains voltage of 230 V~, 50-60Hz |
| Question: | Can I connect boiler-based central heating and a pellet stove to the thermostat? |
| Answer: | The device has available one change-over relay output 5(2) A 230 V to operate any circulation pumps, burners and solenoid valves. You will need to assess what type of control the other utilities require. |
| Question: | Can the touchscreen thermostat 02907 be fitted in a flush mounting box? |
| Answer: | It can be installed directly onto the wall or over 2- and 3-module flush mounting boxes. We recommend surface mounting at a height of 1.5 m above floor level, in a suitable position for the correct detection of the room temperature, avoiding installation recesses<(>,<)> behind doors or curtains or areas affected by heat sources or atmospheric factors. |
| Question: | What is the difference between thermostat code 02907 and timer-thermostat code 02911? |
| Answer: | Thermostat (02907) incorporates daily and weekly programming functions limited to use via APP (not local) whereas timer-thermostat 02911 also offers local daily and weekly programming functions as well as remote ones. |
| Question: | Can the thermostat still be operated if there is a temporary failure in the Internet? |
| Answer: | The device continues to operate normally as a thermostat; the only limitation is that it cannot be reached via APP. |
| Question: | Can the touchscreen thermostat 02907 manage both hot and cold air? |
| Answer: | It manages heating and air conditioning in PID and ON/OFF mode. |
| Question: | The thermostat measures one degree more than the actual temperature. |
| Answer: | By working on the ˝temperature Offset˝ value inside the ˝Advanced operating parameters˝ you should be able to modify the temperature value read by the product. |
| Question: | Does the product have a modbus rs485 or similar open protocol which allows for integrations? |
| Answer: | The product does not provide the possibility of being integrated with third-party devices using any type of standard protocol (e.g. modbus RS485). |
