08459.11
System infrastructure / Netsafe structured wiring / 8000 / Devices

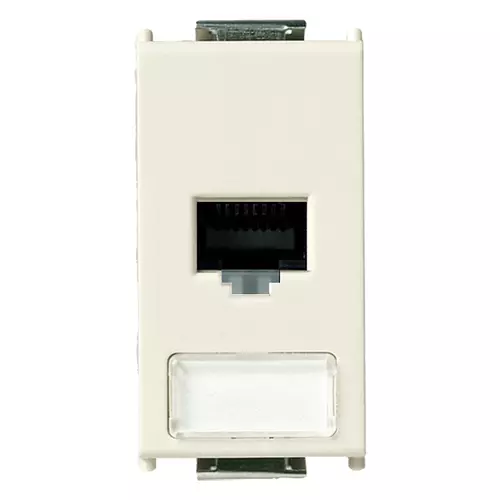

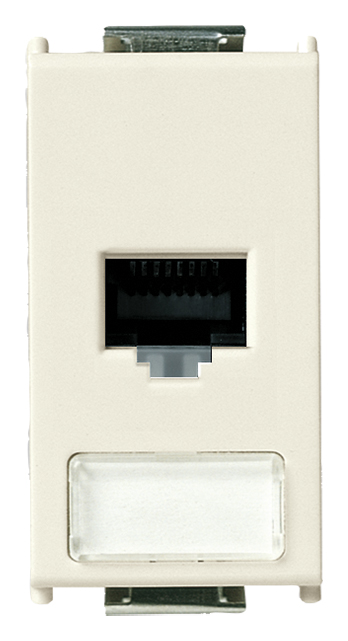

RJ45 Cat5e Netsafe UTP outlet
RJ45 socket with Netsafe connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals without tool use - special module
Product Status
3 - Active
Class group
Installation material for data and telecommunication networks
Installation material for data and telecommunication networks
Class
Modular connector
Modular connector
Model
Bus (jack)
Bus (jack)
Type of connector
RJ45 8(8)
RJ45 8(8)
Screened
No
No
Category
5E
5E
Connection type
Crimp
Crimp
Special tool necessary
No
No
Suitable for round cable
Yes
Yes
Suitable for flat cable
No
No
Suitable for litz wire conductor
No
No
Suitable for solid conductors
No
No
Colour
Other
Other
AWG-range
23 - 26
23 - 26
Minimum order quantity: 10 NR
Barcode
8007352463073
1 NR
5.1x4.3x5.3 [cm]
22.8 [g]
8007352463080
10 NR
26.9x11.6x4.9 [cm]
302.6 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
