RJ45 Cat6 Netsafe UTP 110 outlet - 08459.6

08459.6
System infrastructure / Netsafe structured wiring / 8000 / Devices

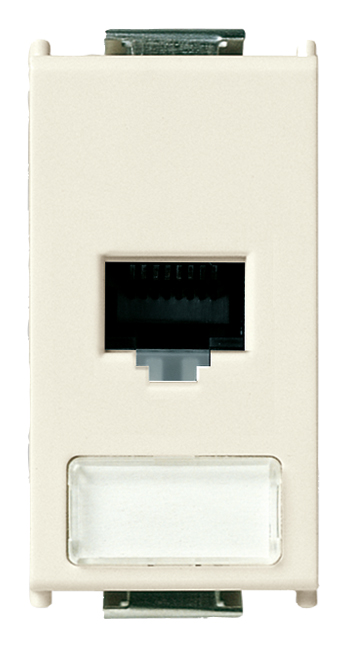

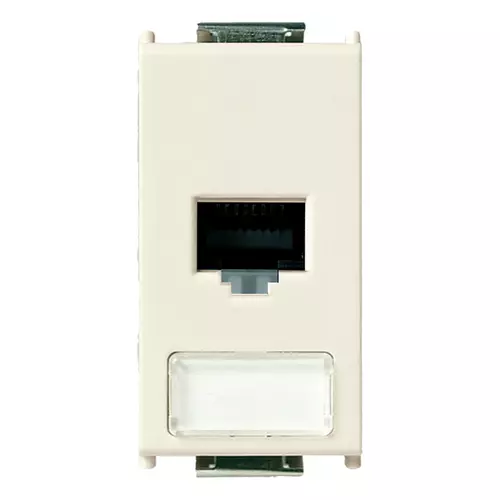

RJ45 Cat6 Netsafe UTP 110 outlet
RJ45 outlet with Netsafe Cat. 6 connector, unshielded, T568A/B unversal wiring, 8-contact, 110-type insulation-piercing terminals

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (301 kb)

---

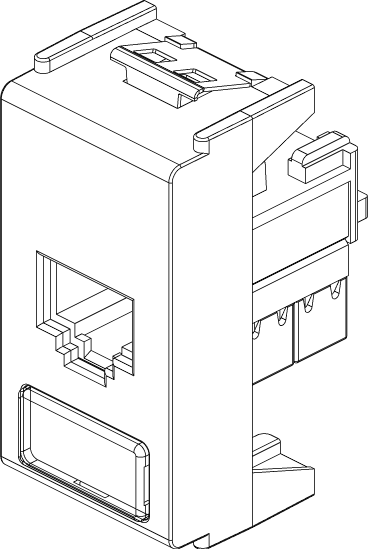

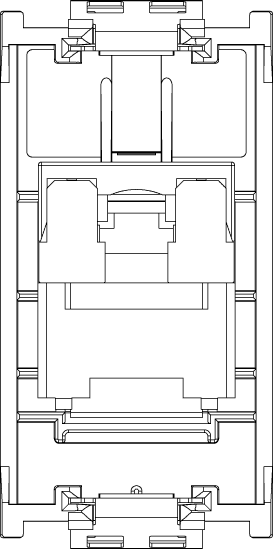

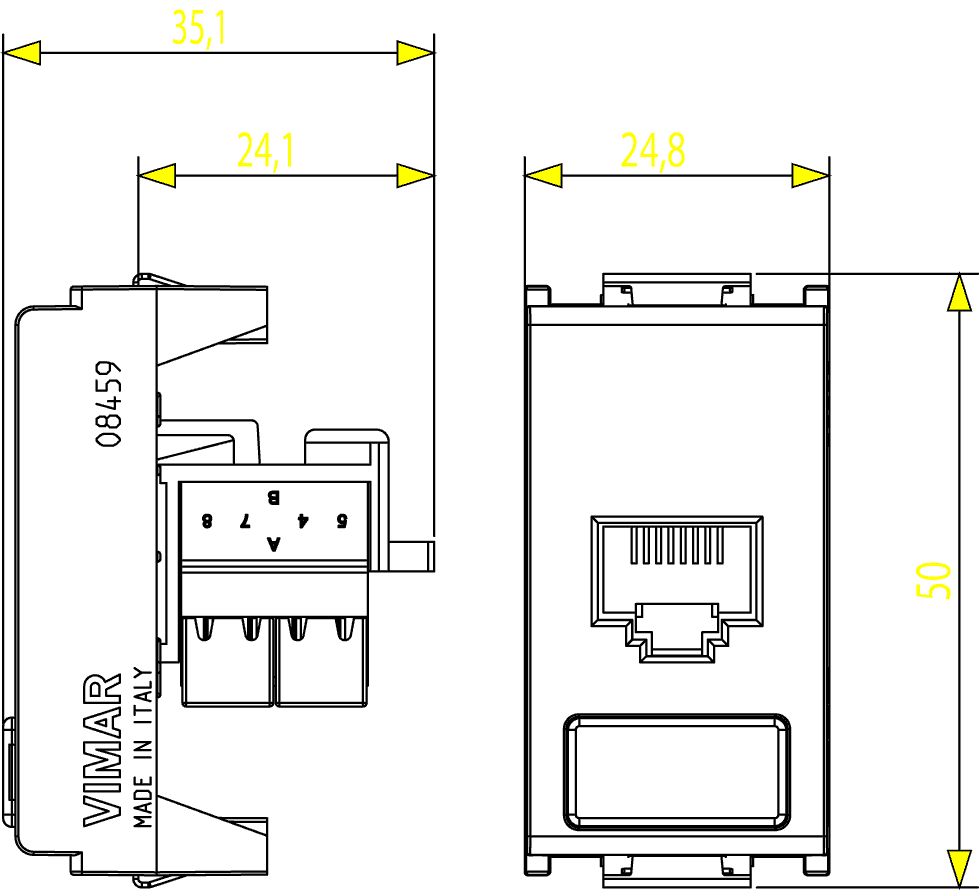

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation material for data and telecommunication networks

Class
Modular connector

Model
Bus (jack)

Type of connector
RJ45 8(8)

Screened
No

Category
6

Connection type
110

Special tool necessary
Yes

Suitable for round cable
Yes

Suitable for flat cable
Yes

Suitable for litz wire conductor
No

Suitable for solid conductors
No

Colour
Other

AWG-range
22 - 26

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352256149

1 NR

6x2.8x5.3 [cm]

21.6 [g]

8007352256156

10 NR

14.4x13.1x6 [cm]

268.33 [g]
