09013.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

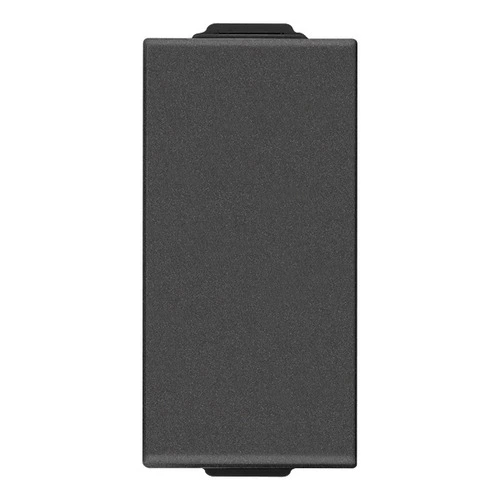

1P 16AX reversing switch carbon matt
1P 16 AX 250 V~ reversing switch, carbon matt. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
Product Status
3 - Active
You may also be interested in
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Intermediate switch
Intermediate switch
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Lacquered
Lacquered
Surface finishing
Matt
Matt
Colour
Anthracite
Anthracite
RAL-number (similar)
7016
7016
Label space/information surface
Yes
Yes
Function lighting
Control and orientation
Control and orientation
Type of lighting
Other
Other
Nominal voltage
250 V
250 V
Rated current
16,00 A
16,00 A
Feedback-signal contact
No
No
Connection type
Screwed terminal
Screwed terminal
Washing machine switch
No
No
Device width
22,30 mm
22,30 mm
Device height
47,00 mm
47,00 mm
Device depth
39,60 mm
39,60 mm
Built-in depth
26,80 mm
26,80 mm
00. CE Marking - EU
13. SNI-MGI - Indonesia
29. QCERT - Colombia
37. Marking - Morocco
37. Marking - Morocco
Minimum order quantity: 10 NR
Barcode
8007352657793
1 NR
4.1x2.8x5.3 [cm]
31.6 [g]
8007352657809
10 NR
14.4x9x6 [cm]
353.2 [g]
8007352657816
160 NR
37.5x30x13.5 [cm]
5,984 [g]
