TV-FM-SAT single conn. 3outs carbon matt - 09303.CM

Pdf
09303.CM

Neve Up / Devices / 3-output TV-RD-SAT socket outlets

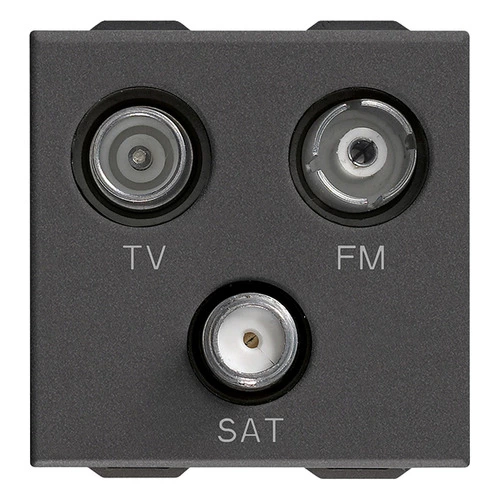

TV-FM-SAT single conn. 3outs carbon matt
TV-Radio FM-SAT coaxial socket outlet, 5-2400 Mhz, single connection, demixed, 3 outputs with male connector (TV) and female connector (FM Radio) and type F (SAT), 1 dB connection attenuation, carbon matt - 2 modules. Allows the passage of DC current and control signals (24 V 500 mA max)

Product Status
3 - Active

You may also be interested in

Class group
Antenna and satellite technique
Class
Antenna socket
Model
End socket
Mounting method
Flush mounted (plaster)
Cover
None
Suitable for remote power supp
Yes
Frequency
5 - 2400 MHz
RAL-number (akin)
7016
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352666696
1 NR
5.1x4.3x5.3 [cm]
77.9 [g]
Barcode Qty 5 NR
8007352666702
5 NR
14.4x11.6x6 [cm]
831.8 [g]
Barcode Qty 60 NR
8007352666719
60 NR
36.5x33x13.5 [cm]
4,999 [g]
