TV-RD-SAT through-line male outlet carbo - 09300.10.CM

09300.10.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

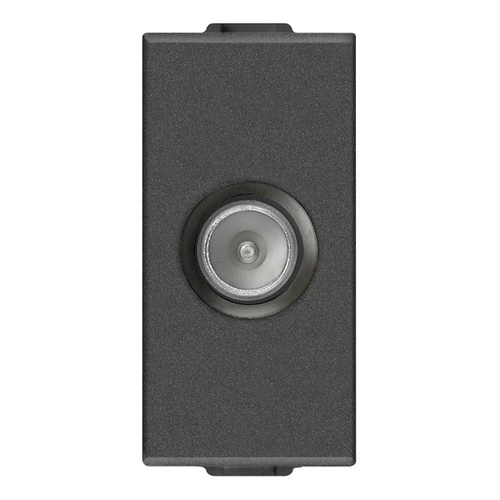

TV-RD-SAT through-line male outlet carbo
TV-RD-SAT coaxial socket outlet, 5-2400 Mhz, feed-through, with male connector, 10 dB connection attenuation, carbon

Product Status
3 - Active

You may also be interested in

09300.01.CM - TV-RD-SAT single conn.male outlet carbon

09303.CM - TV-FM-SAT single conn. 3outs carbon matt

09318.CM - F-type TV outlet carbon matt

09313.CM - TV IEC single connection outlet carbon m

09302.01.CM - TV-RD-SAT single conn.outlet 2outs carbo

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Mounting method
Flush-mounted

Cover
None

Suitable for remote power supply
No

Colour
Anthracite

RAL-number (similar)
7016

Surface protection
Lacquered

Surface finishing
Matt

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352666504

1 NR

4.1x2.8x5.3 [cm]

50.4 [g]

8007352666511

10 NR

14.4x9x6 [cm]

541.6 [g]

8007352666528

160 NR

37.5x30x13.5 [cm]

9,027.6 [g]
