RJ45 Cat6ANetsafe FTP outlet carbon matt - 09339.16.CM

Pdf
Vimar - 09339.16.CM - RJ45 Cat6ANetsafe FTP outlet carbon matt
Vimar - 09339.16.CM - RJ45 Cat6ANetsafe FTP outlet carbon matt
09339.16.CM

Net Safe / Copper / RJ/EDP socket outlets

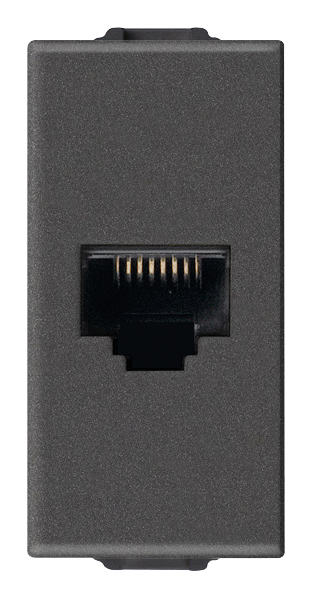

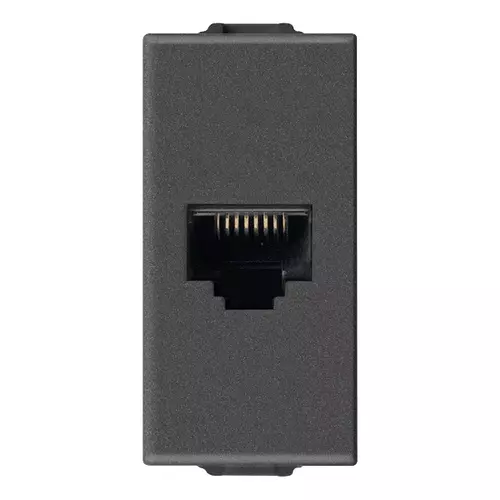

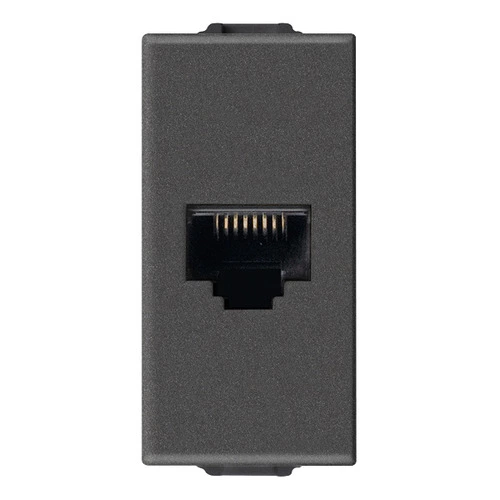

RJ45 Cat6ANetsafe FTP outlet carbon matt
RJ45 socket outlet with Netsafe Cat connector. 6A, shielded, T568A/B universal wiring, 8 contacts, tool-free insulation-piercing terminals, carbon matt

Product Status
3 - Active

You may also be interested in

09338.9.CM
09338.9.CM - RJ45 cat5e Netsafe UTP outlet carbon mat
09339.6.CM
09339.6.CM - RJ45 Cat6 Netsafe UTP 110 outlet carbon
09339.14.CM
09339.14.CM - RJ45 Cat6 Netsafe FTP outlet white

Sheets, Manuals, Documentation

Drawings

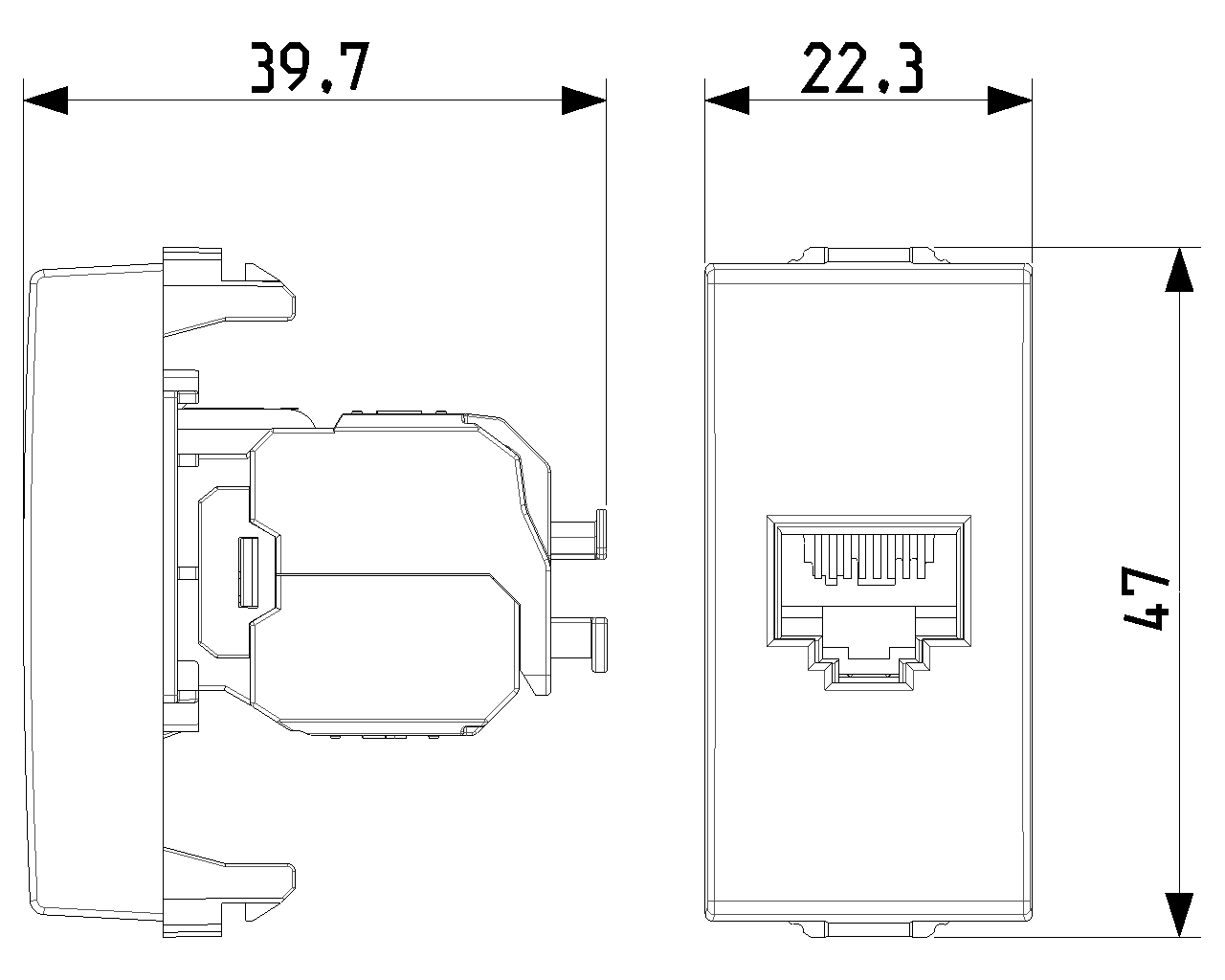

view encumbered art. 09339.16.CM
PNG DXF

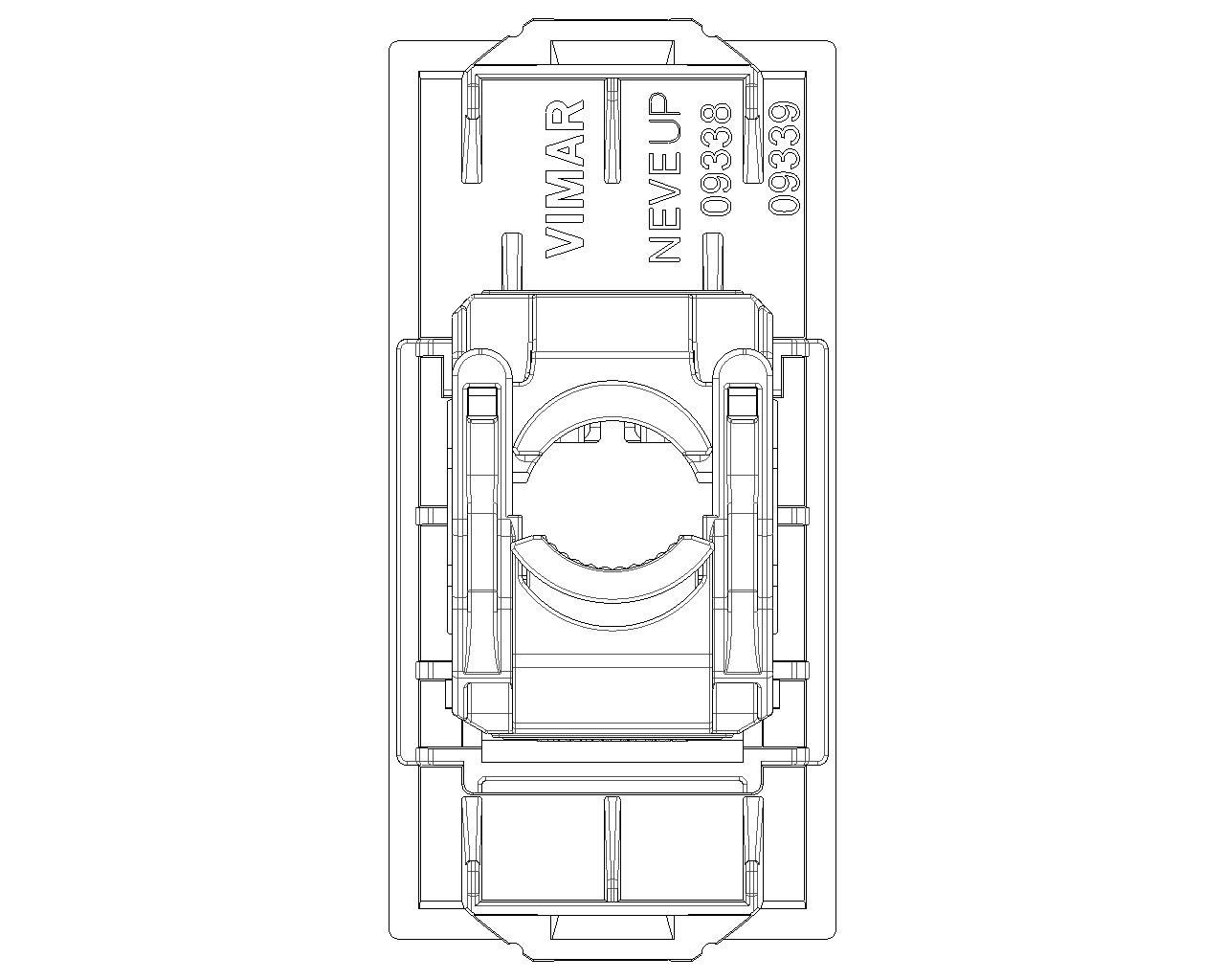

rear view art. 09339.16.CM
PNG DXF

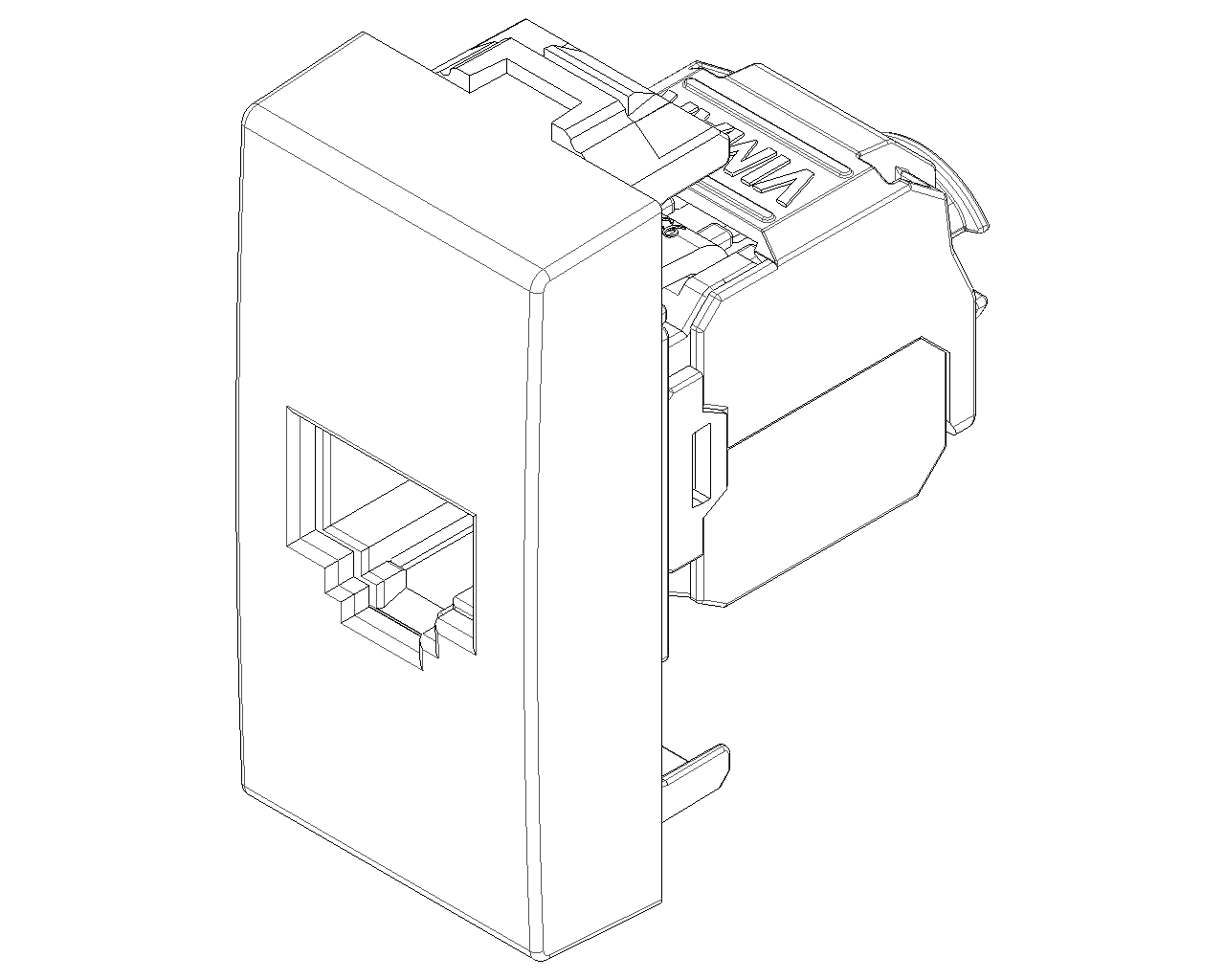

3D view art. 09339.16.CM
PNG DXF
Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
Yes
Category
6A (IEC)
Connection type
Crimp
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for solid core
No
Colour
Grey
AWG-range
23 - 26

00. CE Marking - EU

10. EAC Eurasian Customs Union

24. FORCE Certificate

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352667082
1 NR
6x2.8x5.3 [cm]
32.6 [g]
Barcode Qty 10 NR
8007352667099
10 NR
14.4x13.1x6 [cm]
377.4 [g]
Barcode Qty 200 NR
8007352667105
200 NR
50.5x20x28 [cm]
7,988 [g]
