2P+E 16A universal outlet for DIN rail - 09967.1

Pdf
Vimar - 09967.1 - 2P+E 16A universal outlet for DIN rail
Vimar - 09967.1 - 2P+E 16A universal outlet for DIN rail

09967.1
System infrastructure / Enclosures and control units / Switchboards / Shared accessories

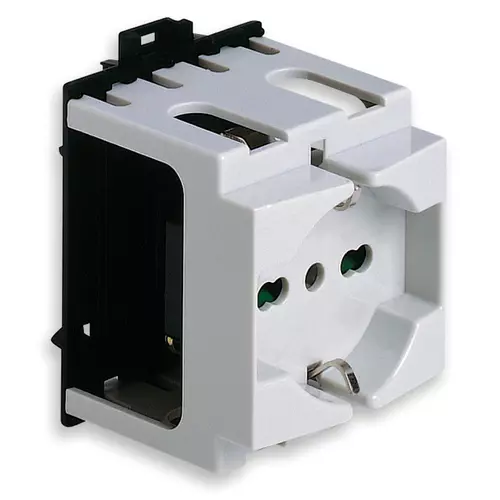

2P+E 16A universal outlet for DIN rail
2P+T 16 A 250 V~ universal SICURY socket outlet, Italian standard P40, for installation on DIN rail (60715 TH35), occupies 3 modules size 17.5 mm, depth 56 mm, RAL 7035 grey

Product Status
3 - Active

Drawings

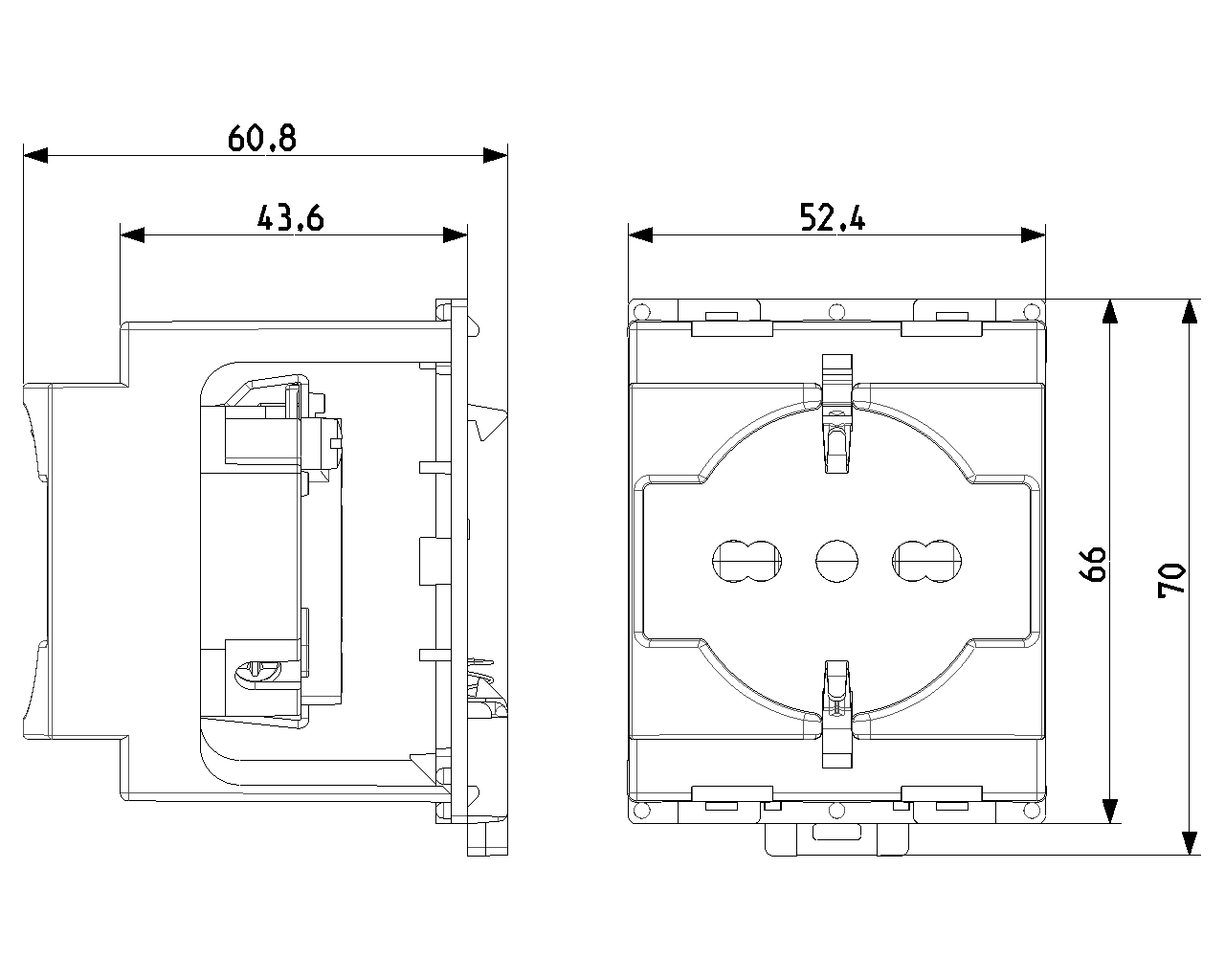

view encumbered art. 09967.1
PNG DXF

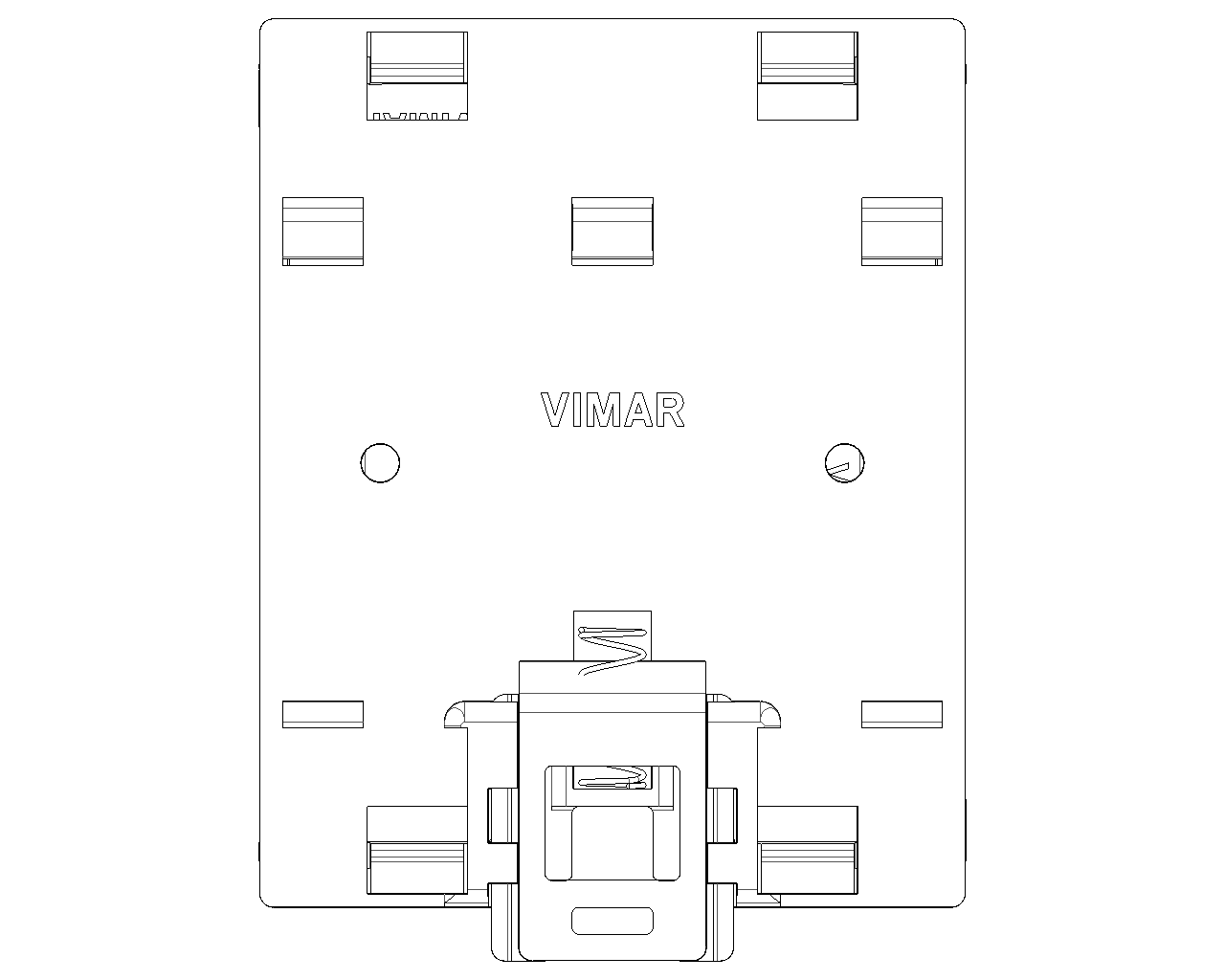

rear view art. 09967.1
PNG DXF

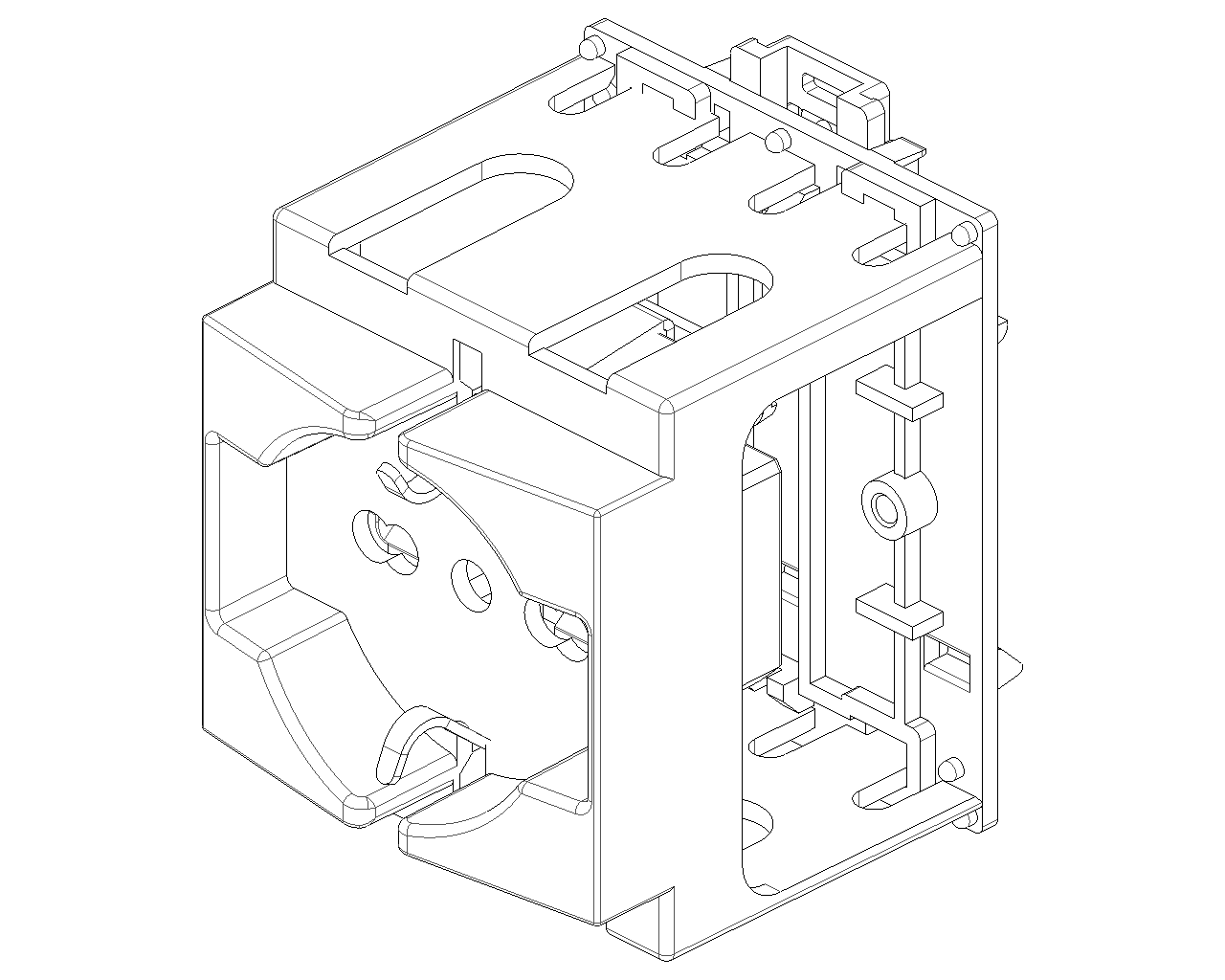

3D view art. 09967.1
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device height
45,00 mm
Device depth
53,00 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352621565
1 NR
5.2x7x6 [cm]
70.556 [g]
Barcode Qty 20 NR
8007352621572
20 NR
29.8x26.2x6.5 [cm]
1,630.92 [g]
