Plate 3M transponder white diamond IP55 - 0K21666.70.02

Pdf
Vimar - 0K21666.70.02 - Plate 3M transponder white diamond IP55
Vimar - 0K21666.70.02 - Plate 3M transponder white diamond IP55
0K21666.70.02

Eikon TACTIL / Cover plates / Crystal cover plates

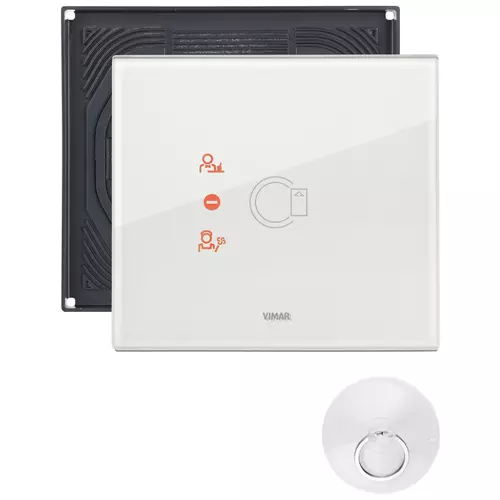

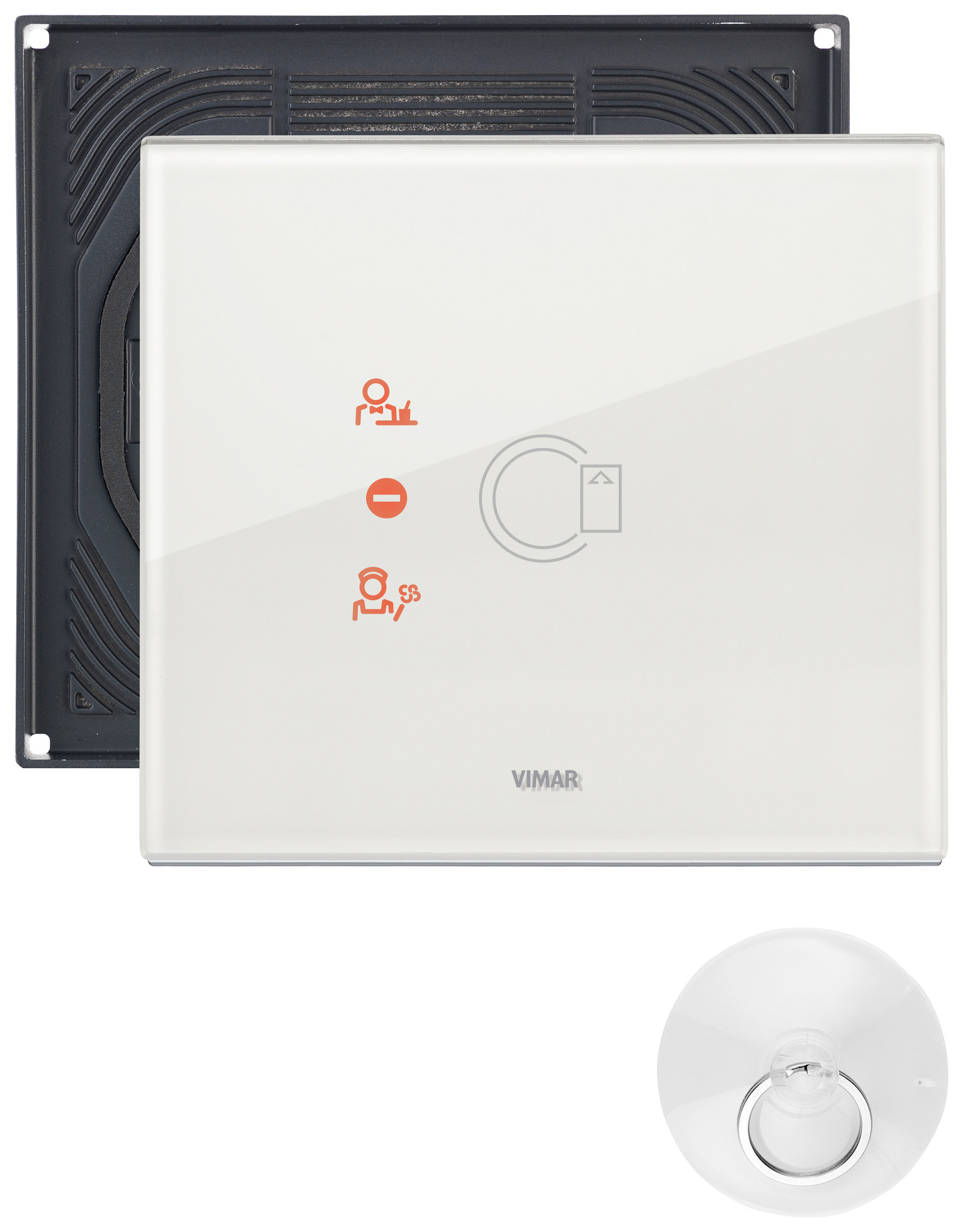

Plate 3M transponder white diamond IP55

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 0K21666.70.02
PNG DXF
rear view art. 0K21666.70.02
PNG DXF
3D view art. 0K21666.70.02
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal
Number of units horizontal
1
Number of units vertical
3
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP55
Type of fastening
Clamp mounting
Depth
17,40 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352691988
1 NR
15.5x17.3x4.7 [cm]
335 [g]
