Plate 3Mtransp.NR cryst.black diam.IP55 - 0K21666.76.03

Download as PDF PDF Add to portfolio
Immagine 0K21666.76.03
download product photo

0K21666.76.03
Smart systems&products / KNX / EIKON / Cover plates

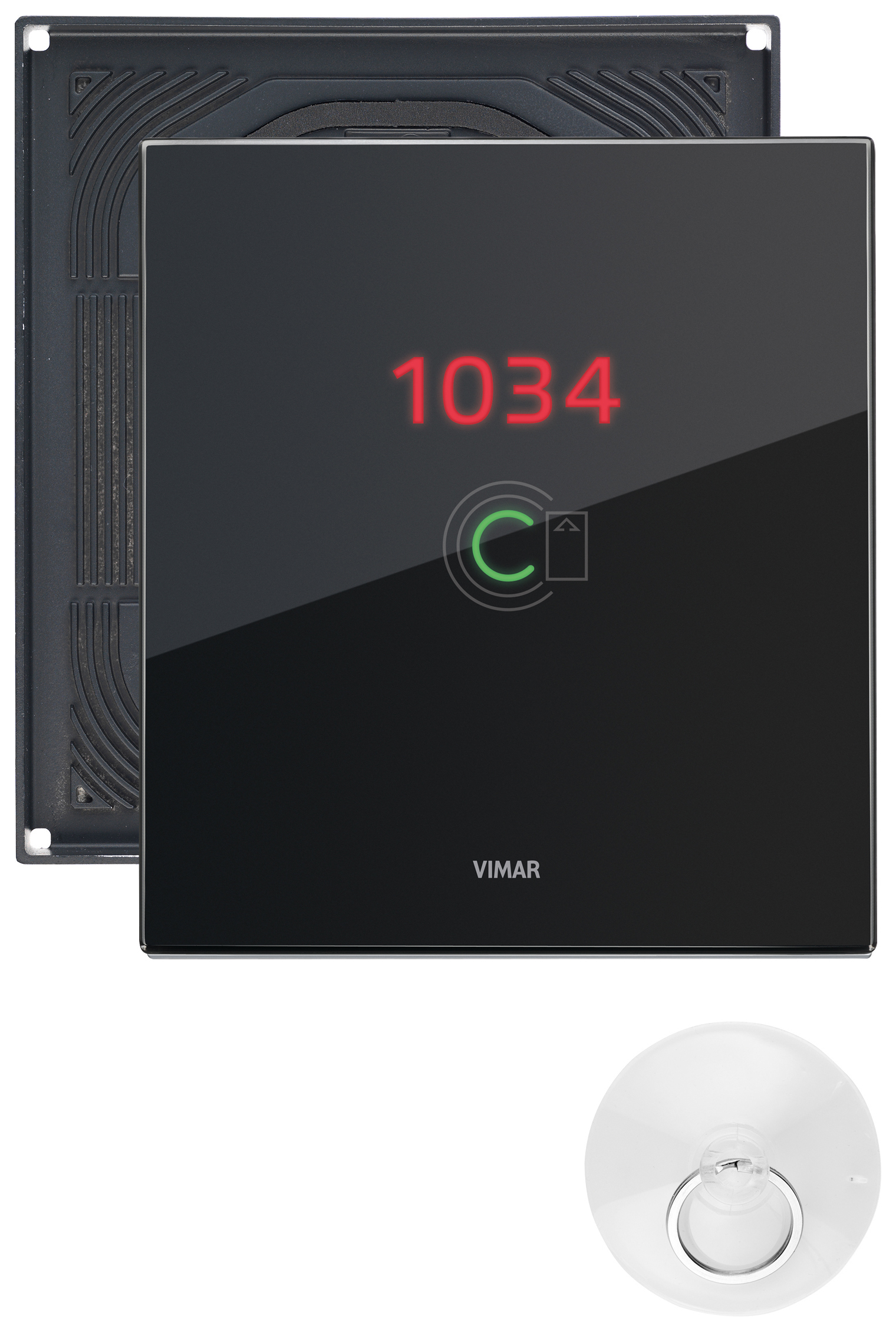

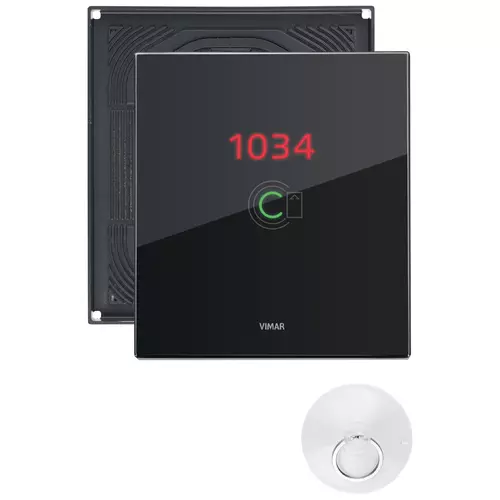

Plate 3Mtransp.NR cryst.black diam.IP55
3-module vertical electronic cover plate for IP55 vertical external transponder reader, door bell function not active, complete with IP55 mounting frame, to be completed with room number labels 21846, plate glass, diamond black

Product Status
3 - Active

You may also be interested in

21457.1
21457.1 - Vert. outdoor transponder reader KNX NR
21846
21846 - Stickers numbers sequence
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Vertical
Number of device inserts horizontal
1
Number of device inserts vertical
3
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Glass
Material quality
Acrylic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Black
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP55
Type of fastening
Clamp mounting
Width
111,50 mm
Height
123,50 mm
Depth
11,300 mm
Built-in width
49,90 mm
Diameter bore hole (opening)
0,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352692046
1 NR
15.5x17.3x4.7 [cm]
335 [g]
