RGB dimmer 120V white - 14138.120

Pdf
14138.120

Plana / Devices / Electronic devices

RGB dimmer 120V white
RGB dimmer 120 V~ 60 Hz for: RGB LED lamps, RGB electronic transfomers, ON/OFF and brightness control with built-in push button or from peripheral NO push buttons, colour control via rotary potentiometer, visible in darkness, white. Not for Isoset enclosures

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Other
Applicable with button
Yes
Applicable with movement senso
No
Applicable with presence indic
No
Applicable with time switch/ti
No
Applicable with transmission b
No
Applicable with infrared butto
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9003
Transparent
No
Suitable for degree of protect
IP40
Nominal voltage
120,00 - 120,01 v
Frequency
60,00 - 60,01 HZ
Control voltage
120,00 - 120,01 v

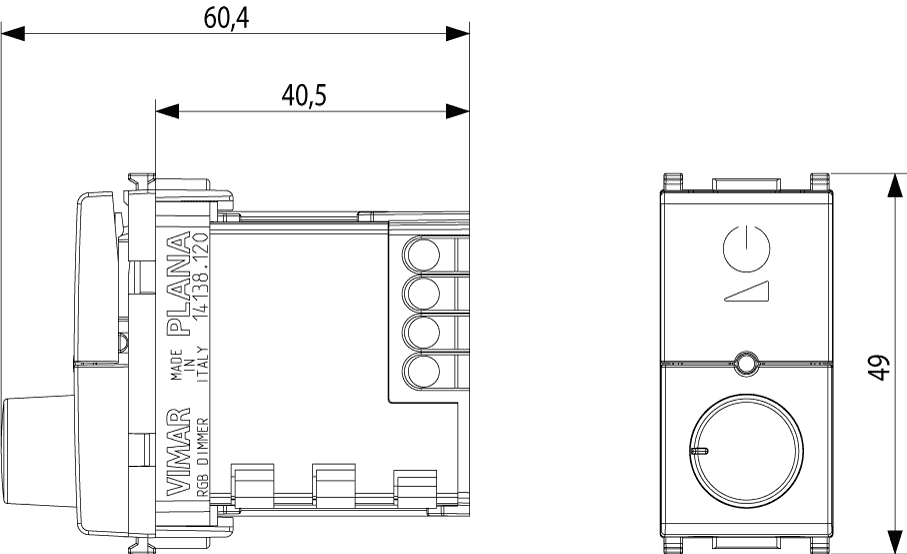

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
60,40 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352498389
1 NR
5.2x3.9x6.2 [cm]
59.9 [g]
Barcode Qty 5 NR
8007352498396
5 NR
14.4x11.6x6 [cm]
342.9 [g]
