RJ45 Cat5e Netsafe UTP outlet white - 14338.8

Pdf

14338.8
System infrastructure / Netsafe structured wiring / PLANA / Devices

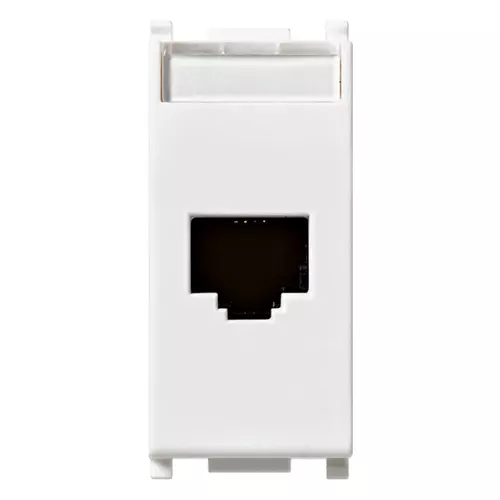

RJ45 Cat5e Netsafe UTP outlet white
RJ45 outlet with Netsafe connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals, white

Product Status
3 - Active

Sheets, Manuals, Documentation

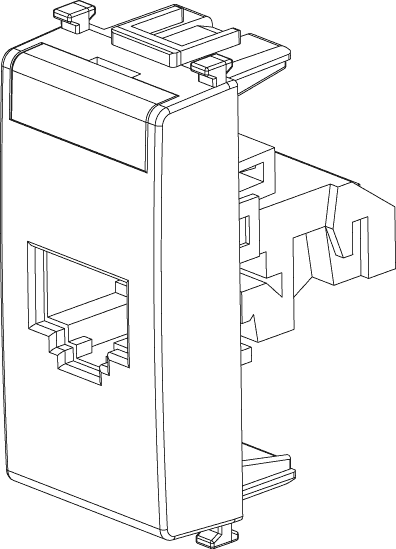

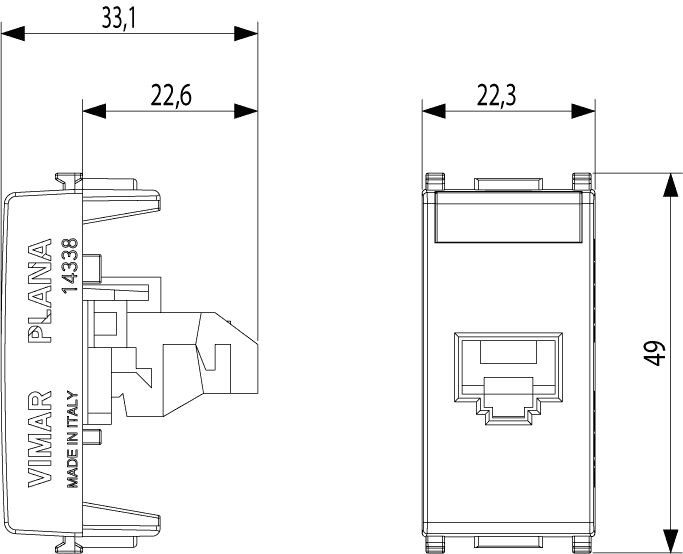

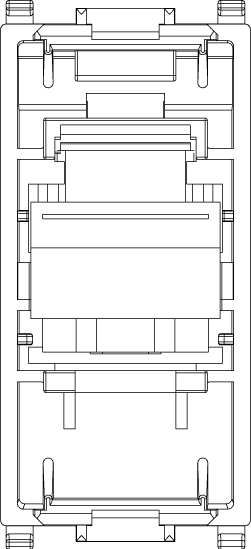

Drawings

Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
5E
Connection type
Crimp
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
No
Suitable for solid conductors
No
Colour
White
AWG-range
23 - 24

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352116207
1 NR
5.1x2.8x5.3 [cm]
17.27 [g]
Barcode Qty 10 NR
8007352116214
10 NR
14.4x11.6x6 [cm]
221.27 [g]
Barcode Qty 120 NR
8007352625976
120 NR
36.5x33x13.5 [cm]
3,075.3 [g]
