14594.0
Wiring devices / View Wireless wiring devices / PLANA / Devices

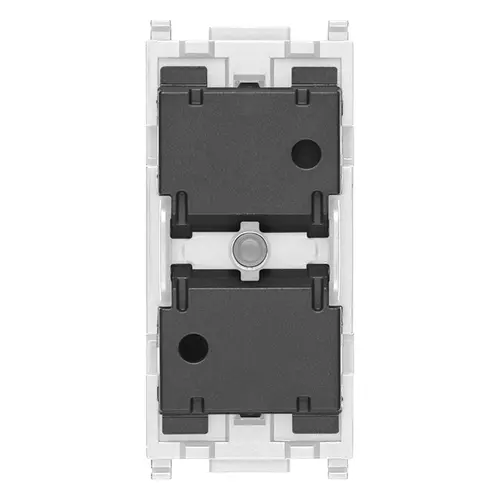

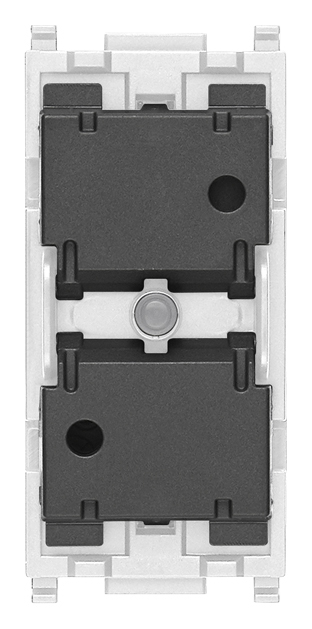

Rolling shutter IoT connected mechanism
View Wireless connected electronic control device for 1 roller shutter with slat orientation and change-over relay output for cosφ 0,6 motor 2 A 100-240 V~ 50/60 Hz, local or remote control, double technology with Bluetooth® wireless technology 5.0 standard for the realization of View Wireless mesh system andZigbee 3.0 standard, 1 input for external push button to recall a scenario, favourite position recall function, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, to be completed with two interchangeable 1-module Plana half-buttons
- Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
- Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub
- Compatible with SmartThings hub
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (940 kb)
- Foglio istruzioni Full (509 kb)
- Feuille d’instructions Full (509 kb)
- Hoja de instrucciones Full (507 kb)
- Full instructions sheet (504 kb)
- Φυλλάδιο οδηγιών Full (652 kb)
- Anweisungsblatt Full (507 kb)
- ورقة الإرشادات Full (576 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)

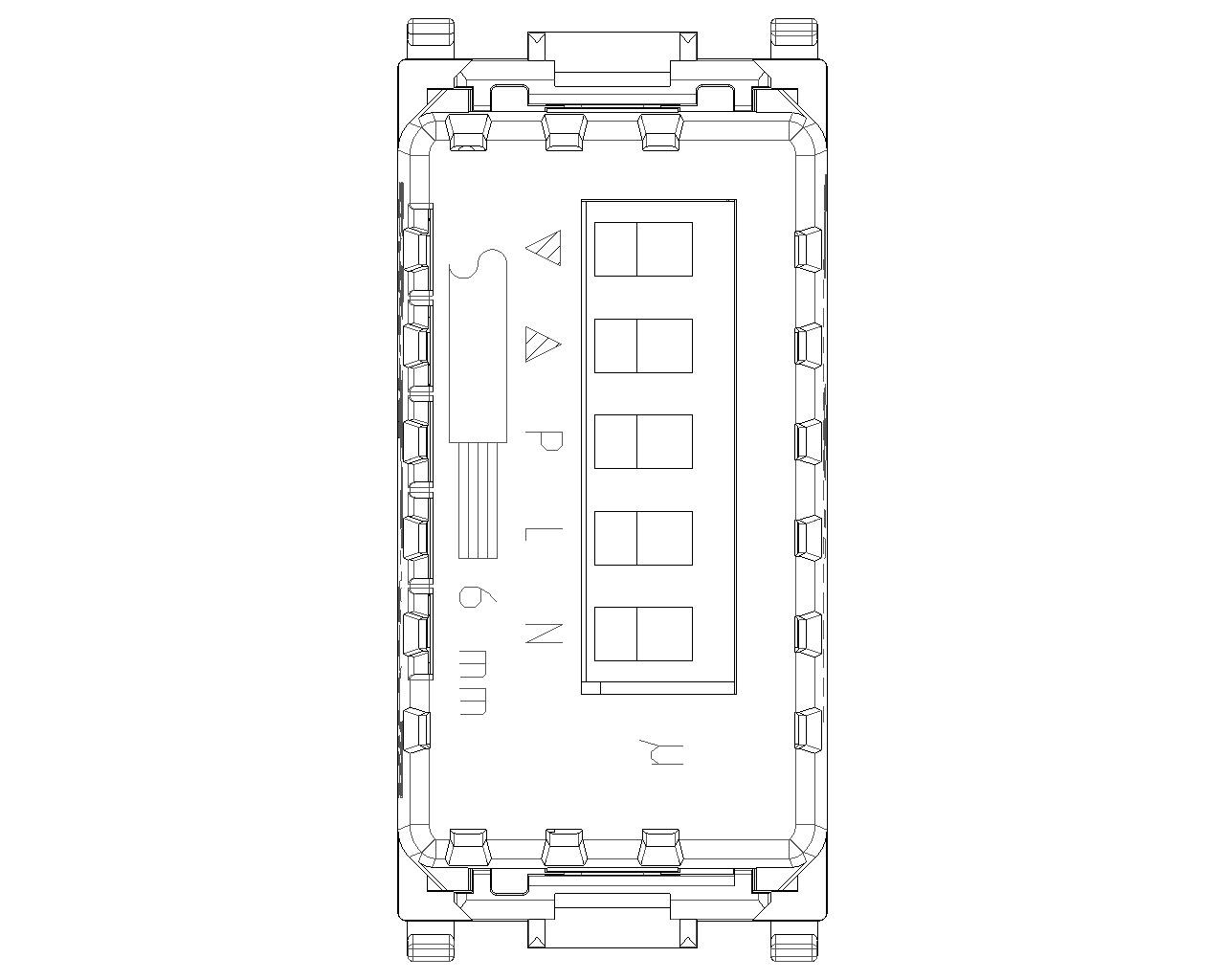

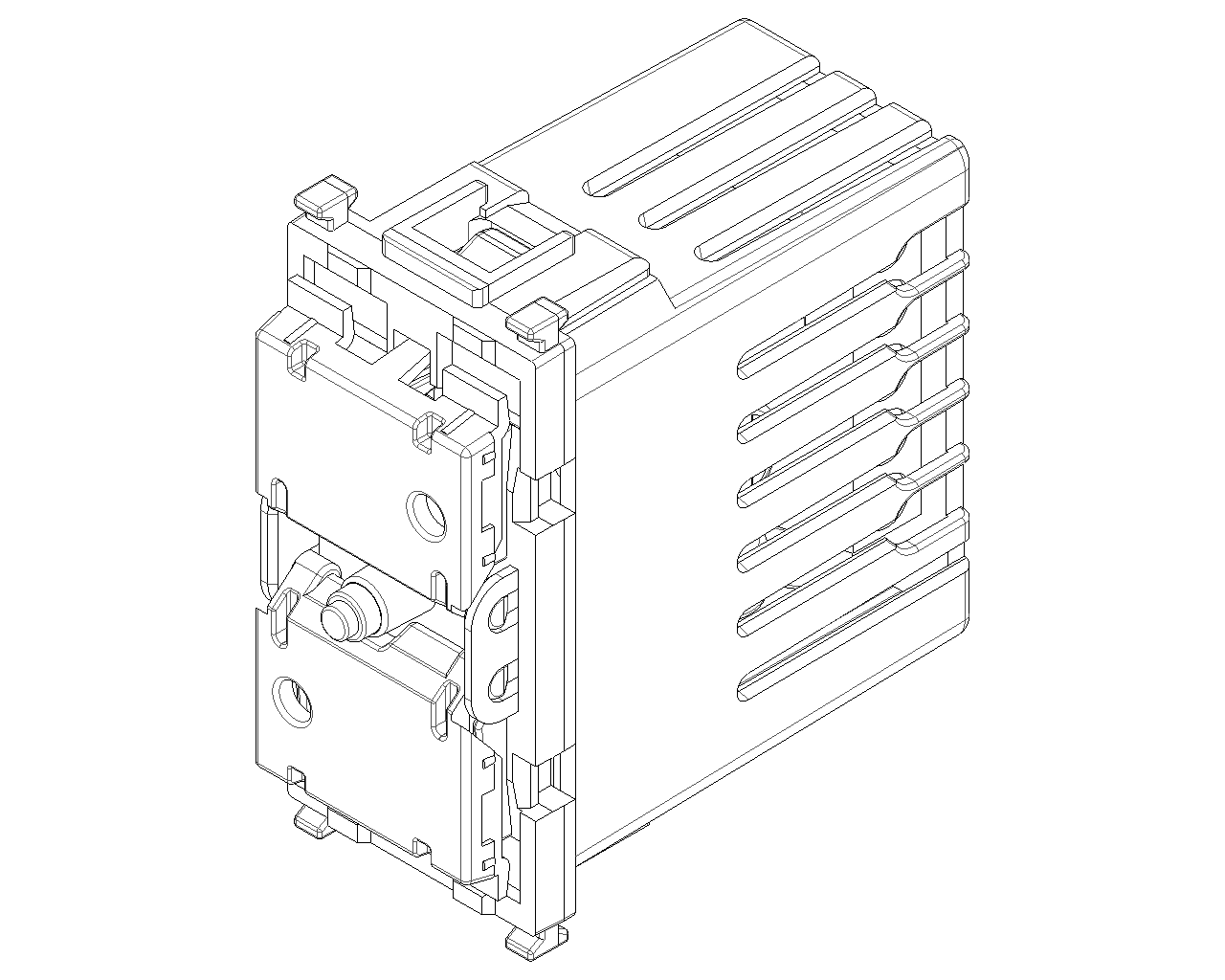

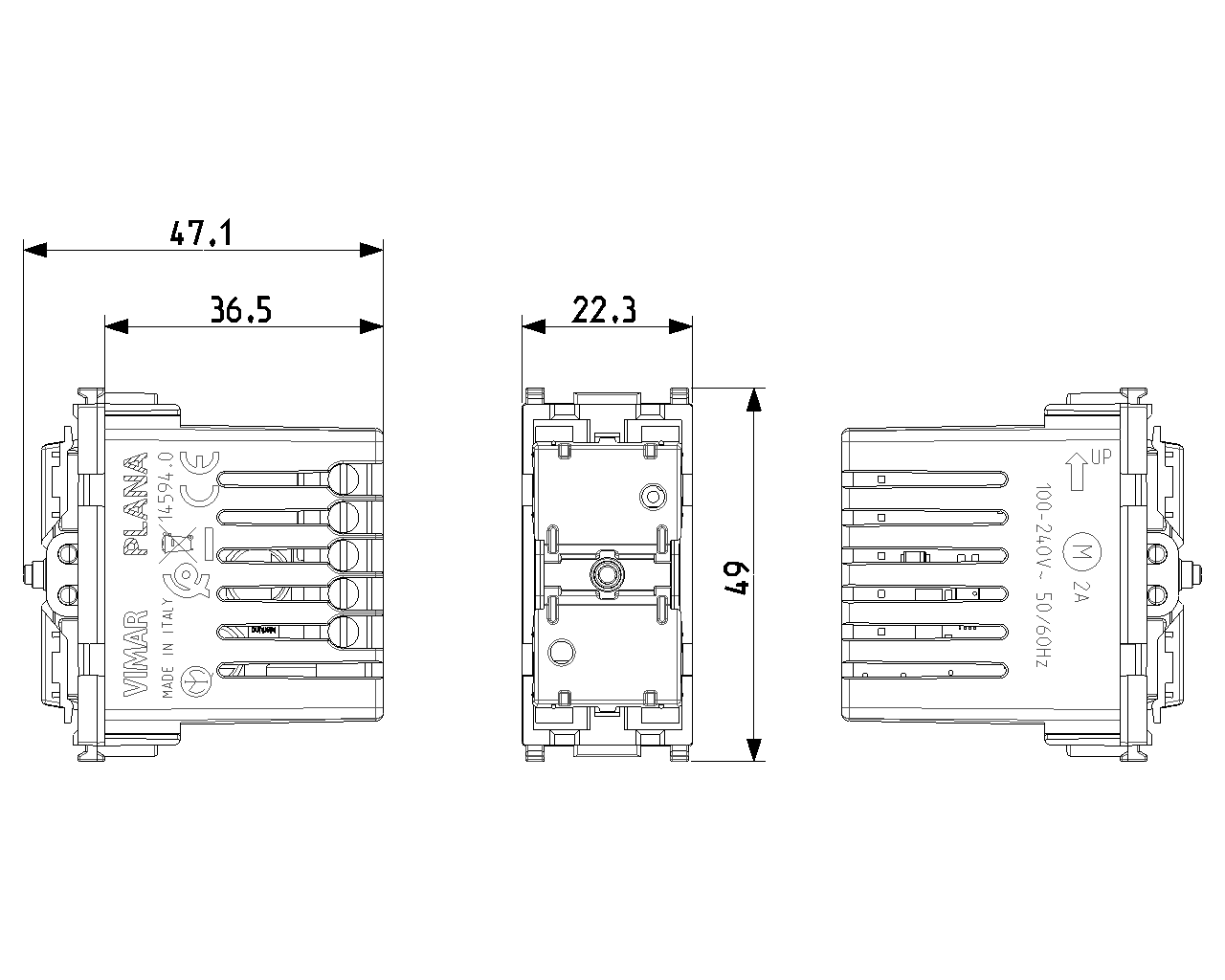

Drawings
Installation bus systems
Shutting actuator for bus system
No
No
Yes
No
No
Zigbee
Built-in installation
0
Yes
Yes
29. QCERT - Colombia
37. Marking - Morocco
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
92. RoHS UAE
Barcode
| Question: | After I have set the device as Zigbee, how can I reset the device to Bluetooth mode? |
|---|---|
| Answer: | The procedure allowing the conversion of the operating mode/technology on the product in question can be found inside the ˝VIEW Wireless˝ App in the menu: ˝Actions -> Manage device˝. |
| Question: | Can the product in question be used for roller shutters without adjustable slats? |
| Answer: | The product in question, if used in BLE (Bluetooth Low Energy) mode and configured using the VIEW Wireless App, envisages on this application the possibility of setting the device to operate as ˝roller shutter without slats˝. |
| Question: | Is there a substantial difference between product 14594 and 14594.0? |
| Answer: | The only difference between 14594 and 14594.0 is that the first code also envisages the integrated button covers, making it already directly ready for installation. |
