IoT connected gateway 2M Silver - 14597.SL

Pdf
14597.SL

Plana Silver / Devices / Radiofrequency

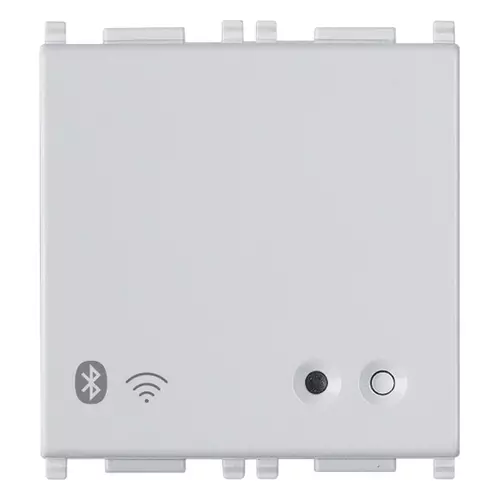

IoT connected gateway 2M Silver
View Wireless gateway, Bluetooth® wireless technology 4.2 Wi-Fi, RGB LED, 100-240 V 50/60 Hz power supply, Silver - 2 modules

  • Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology

Product Status
3 - Active

You may also be interested in

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No
Degree of protection (IP)
IP40

19. NOM - Mexico

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352628625
1 NR
5.7x5.3x7.7 [cm]
62.5 [g]
Barcode Qty 70 NR
8007352628632
70 NR
39.5x30x17 [cm]
4,746 [g]
Question: How many devices can I install in a Wireless system?
Answer: The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597
Question: Which App is dedicated to system configuration?
Answer: The system can be configured using the View Wireless App.
Question: Is gateway code 14597-16497-19597-20597 compulsory or can I install it and remove it at a later date?
Answer: To allow the system to be managed via the VIEW App, the presence of gateway code 14597-16497-19597-20597 is compulsory.
Question: In which App can you create system scenarios?
Answer: Solely in the VIEW App
Question: If I use gateway code 14597-16497-19597-20597, should the devices be configured in BLE or in Zigbee technology?
Answer: In the presence of gateway code 14597-16497-19597-20597, the devices have to work in BLE mode (default mode)
Question: How do you reset the devices?
Answer: Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product.
Question: Is an Internet connection necessary to transfer the connected system from the installer to the administrator (system delivery)?
Answer: Yes, the presence of a general-purpose Internet connection is necessary, but you do not necessarily have to be in the same WiFi network in which the gateway is configured.
Question: Is Energy meter art.02963 compatible/configurable with Zigbee technology?
Answer: Product 02963 is not designed to support Zigbee technology. Operation is envisaged solely for BLE technology, so it needs the dedicated system gateway code 14597-16497-19597-20597.
Question: To control a roller shutter via App, do I only need the module code 14594-16494-19594-20594 with the gateway art. 14597-16497-19597-20597?
Answer: The control is designed to control the roller shutter/slat using the on-board keys and via a wireless connection. The device has the possibility of being controlled with two different radio standards (exclusive to one another): Bluetooth mesh (default) or Zigbee. The Bluetooth mesh network implies the presence of gateway 20597-19597-16497-14597 and management will occur via the VIEW App, whereas when using Zigbee technology a Zigbee 3.0 gateway is required (such as Amazon Echo Plus, Echo Show or Echo Studio) with related management via Amazon App.
Question: Using the Alexa assistant, fitted with Zigbee hub, can I control the Vimar connected 1-way switch via the Amazon App or do I also need the gateway art. 14597-19597-20597-16497?
Answer: If you want to use the IoT connected simple actuator or roller shutters with Alexa (fitted with built-in ZigBee Hub), you do not need the Vimar gateway as the configuration and management of our products will be governed directly by Alexa’s ZigBee hub via the dedicated Amazon App;
