Plate 2M BS techn. polished gold - 14647.24

Pdf

14647.24
Wiring devices / Traditional wiring devices / PLANA / Cover plates

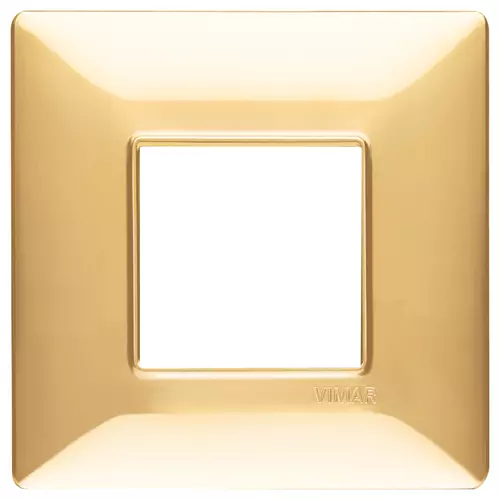

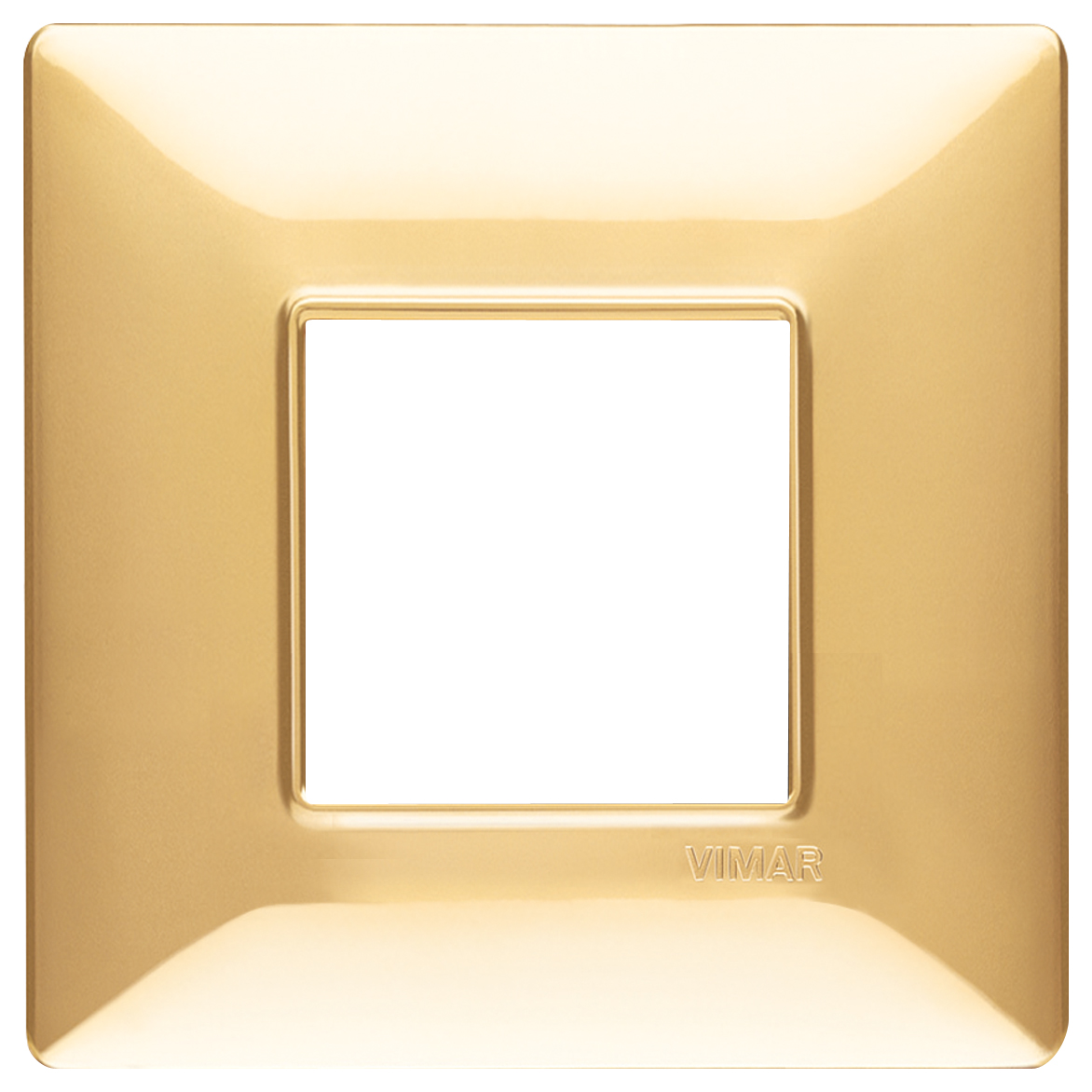

Plate 2M BS techn. polished gold
2-module cover plate, British Standard, technopolymer, polished gold

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Glossy
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95,00 mm
Height
95,00 mm
Depth
9,00 mm
Built-in width
95,00 mm
Built-in height
95,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352371651
1 NR
14.5x9.5x0.9 [cm]
19 [g]
Barcode Qty 10 NR
8007352376144
10 NR
11.7x9.8x10.3 [cm]
236.8 [g]
