IP55 cover 3M +screws white - 14943.01

Pdf
Vimar - 14943.01 - IP55 cover 3M +screws white
Foto gallery #1
Foto gallery #2
Vimar - 14943.01 - IP55 cover 3M +screws white

14943.01
System infrastructure / Enclosures and control units / Protected&watertight series / Isoset - watertight&protected

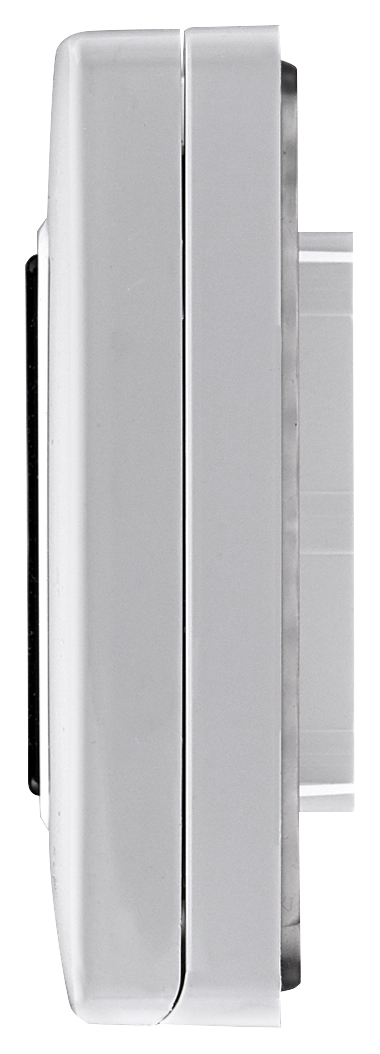

IP55 cover 3M +screws white
3-module cover, with screws, for Eikon and Plana series, for 3-module flush mounting boxes, IP55, white

  • Suitable for wiring series: Eikon, Arké, Plana
  • Isoset enclosures and boxes, Protected and watertight series / IP55 covers Products resistant to dust and water jet ingress from all directions The IP55 protection degree is guaranteed with the cover closed
  • The door also provides a locking system for easier opening and closing
  • The door consists of an anti-UV membrane
  • Captive screws on the power and switching module frame, the frame is not hooked onto the box before screwing

Product Status
3 - Active

Drawings

view encumbered art. 14943.01
PNG DXF
rear view art. 14943.01
PNG DXF
3D view art. 14943.01
PNG DXF
Class group
Connection material (electrotechnical)
Class
Equipment carrier for insulated walls
Material
Plastic
Mounting surfaces
Other
With full insulating materials
Yes

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 2 NR

Barcode

Barcode Qty 1 NR
8007352153981
1 NR
12.2x8.5x2.2 [cm]
103.23 [g]
Barcode Qty 2 NR
8007352153998
2 NR
24.4x8.5x2.2 [cm]
206.47 [g]
Barcode Qty 20 NR
8007352154001
20 NR
28.4x24.4x11.9 [cm]
2,222.33 [g]
Barcode Qty 120 NR
8007352650039
120 NR
59.5x38.5x26.5 [cm]
14,844 [g]
Question: Can it be installed in a 3-module flush mounting box?
Answer: The product in question is designed to be installed in 3-module flush mounting box art. V71303
