16104.B
Wiring devices / Traditional wiring devices / IDEA / Devices

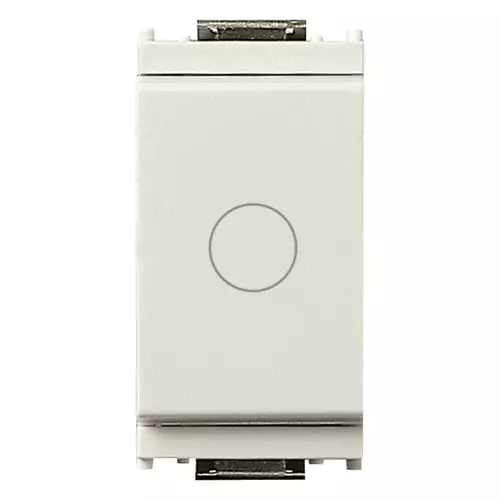

1P NC 16A push white
1P NC 16 A 250 V~ push button (OFF), white
Product Status
3 - Active

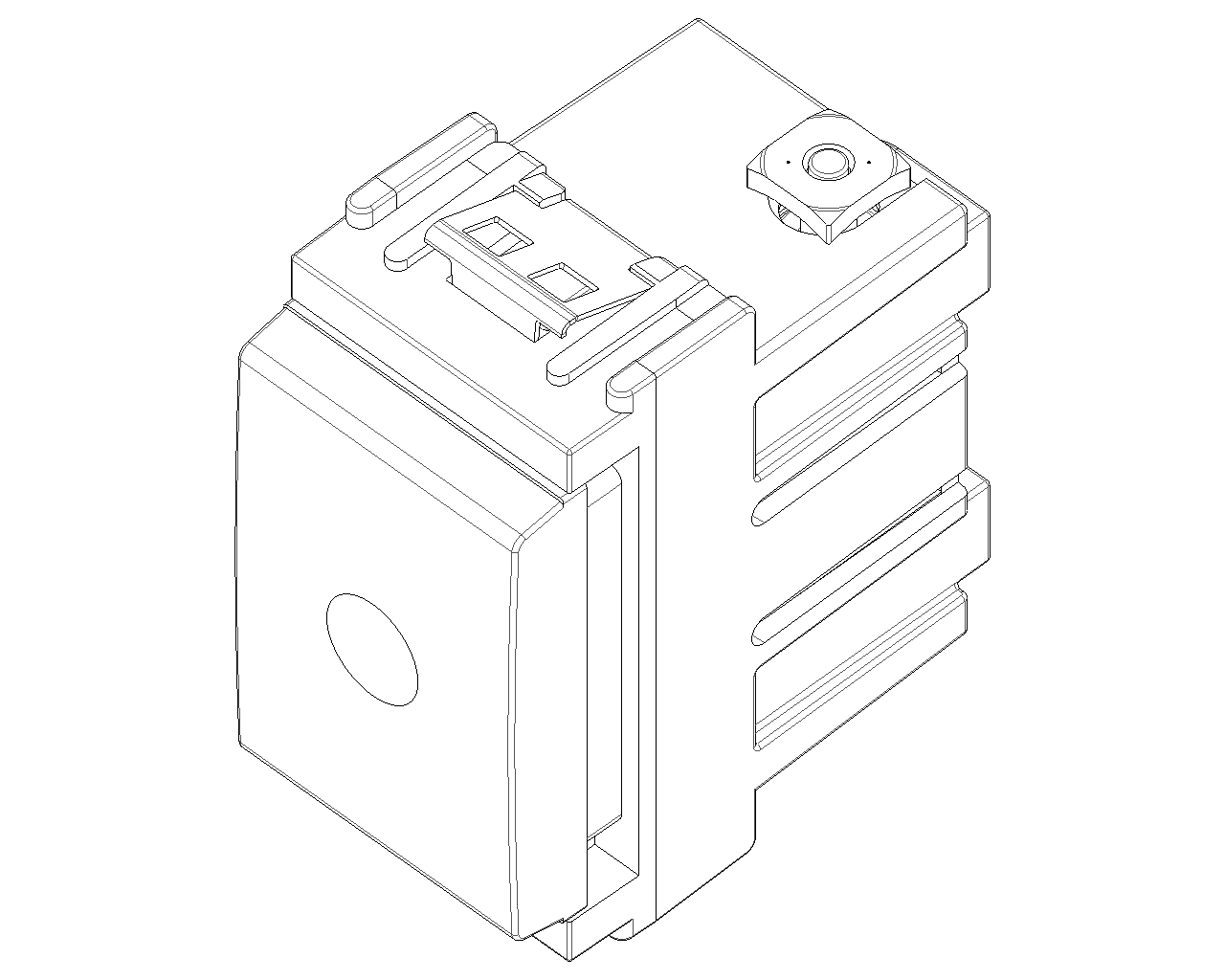

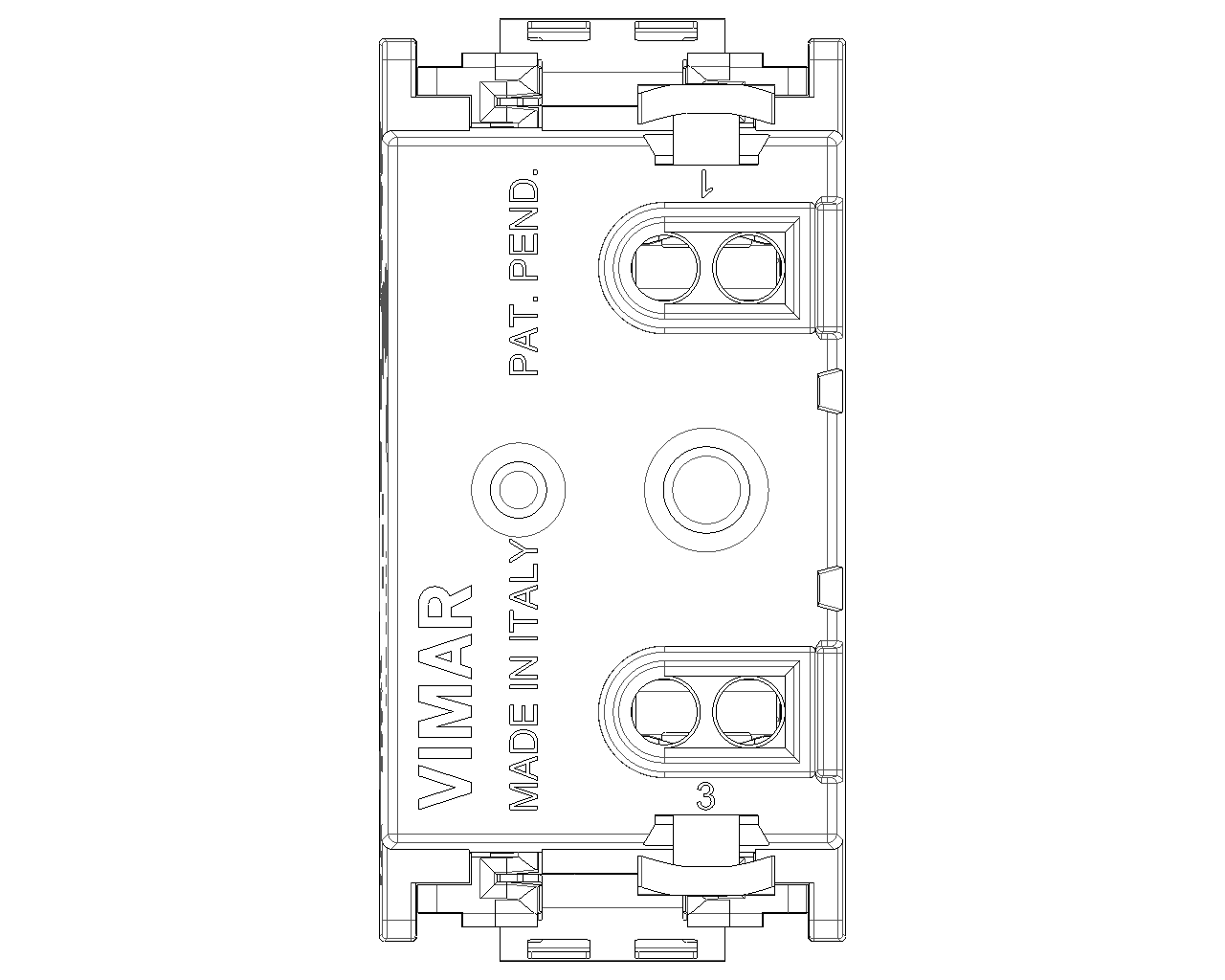

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Push button
Push button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Model
Single push button
Single push button
Method of operation
Push button
Push button
Number of rockers
1
1
Number of modules (module system)
100
100
Number of poles
1
1
Nominal voltage
250 V
250 V
Rated current
16,00 A
16,00 A
With lighting
No
No
Feedback-signal contact
No
No
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9001
9001
Transparent
No
No
Label space/information surface
Yes
Yes
Suitable for degree of protection (IP)
IP40
IP40

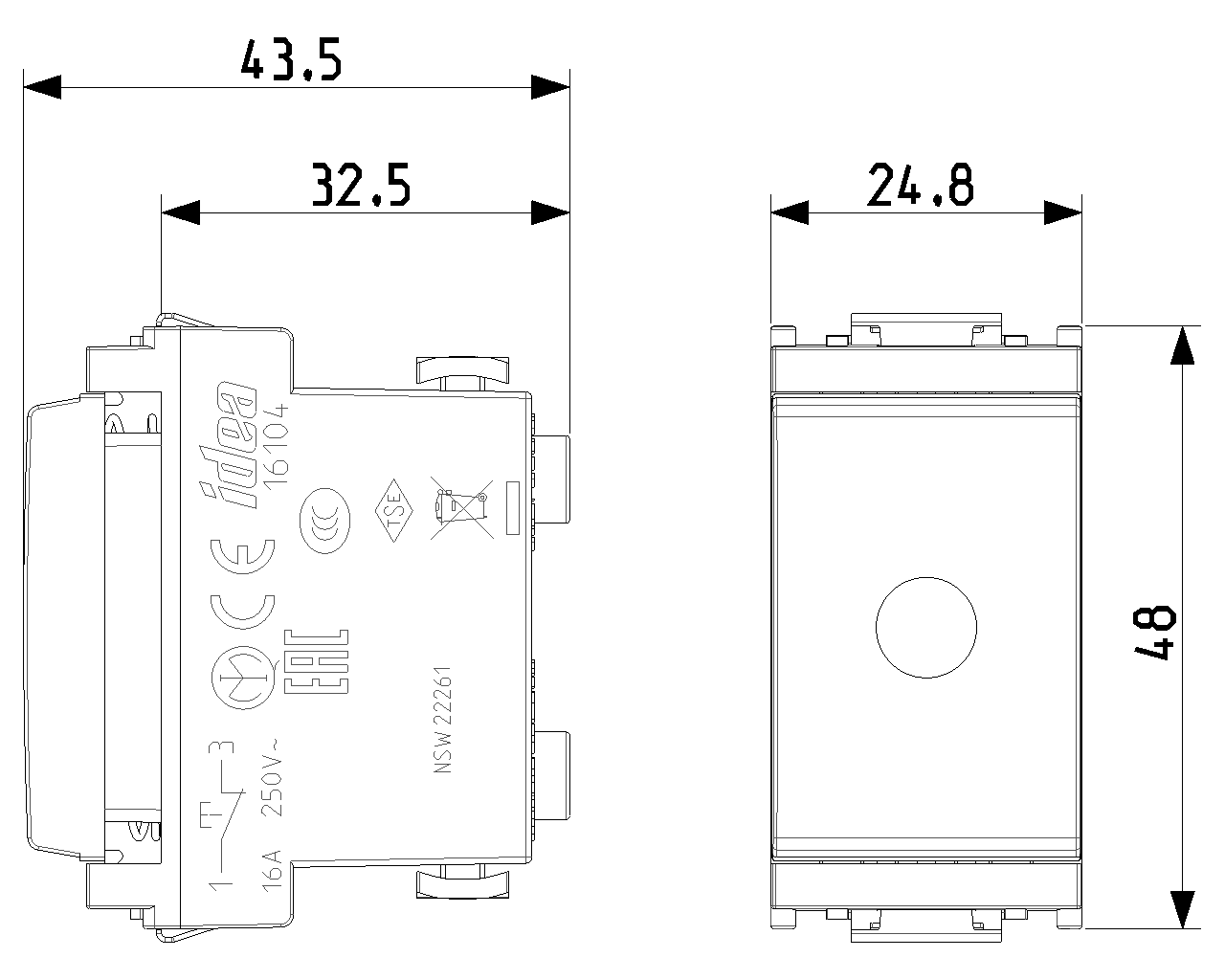

Device width
24,80 mm
24,80 mm
Device height
50,10 mm
50,10 mm
Device depth
42,50 mm
42,50 mm
00. CE Marking - EU
01. IMQ - Italy
14. TSE - Turkey
19. NOM - Mexico
20. IQC - Argentina
37. Marking - Morocco
Minimum order quantity: 20 NR
Barcode
8007352067349
1 NR
5.1x2.8x5.3 [cm]
28.4 [g]
8007352067356
20 NR
27x11.6x6 [cm]
640.07 [g]
