Blank module smooth front white - 16542.B

Pdf
Vimar - 16542.B - Blank module smooth front white
Vimar - 16542.B - Blank module smooth front white

16542.B
Wiring devices / Traditional wiring devices / IDEA / Blank module

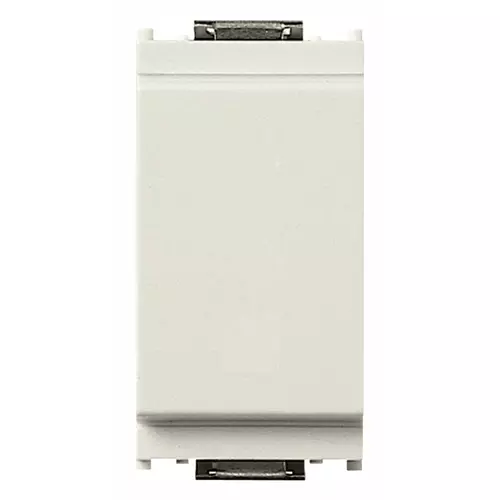

Blank module smooth front white
Blank cover, smooth front, white

Product Status
3 - Active

Drawings

view encumbered art. 16542.B
PNG DXF
rear view art. 16542.B
PNG DXF
3D view art. 16542.B
PNG DXF
Class group
Domestic switching devices
Class
Push button
Method of operation
Other
Number of modules (module system)
100
Nominal voltage
0 V
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Device width
24,80 mm
Device height
50,20 mm
Device depth
20,50 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352082366
1 NR
2.5x5x2 [cm]
5.6 [g]
Barcode Qty 10 NR
8007352146068
10 NR
31x5.2x2 [cm]
58.53 [g]
Barcode Qty 100 NR
8007352083455
100 NR
28.2x11.1x10 [cm]
685.33 [g]
Barcode Qty 1,000 NR
8007352263376
1,000 NR
57.5x22.5x30 [cm]
7,385.33 [g]
