Classic plate 21M technopolymer grey - 19661.72

Pdf

19661.72
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

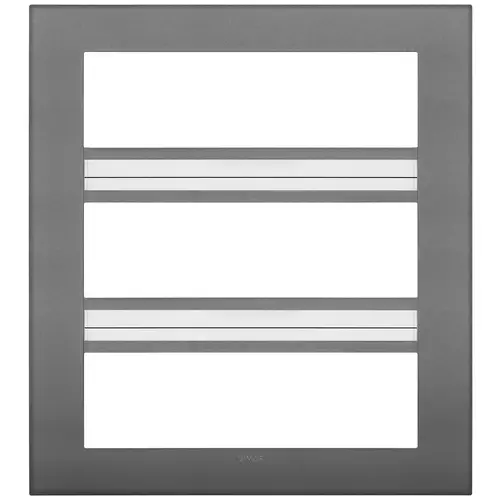

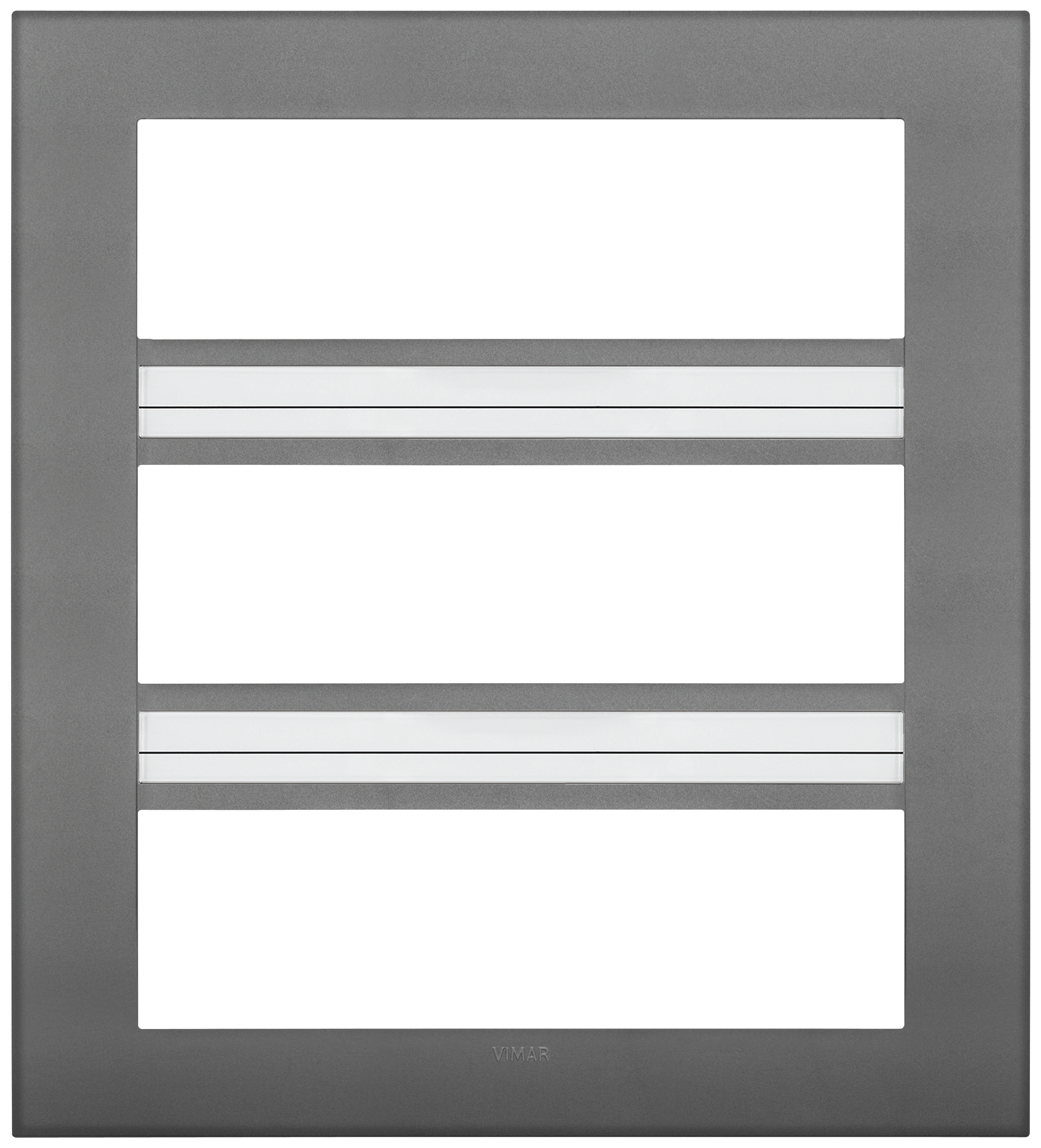

Classic plate 21M technopolymer grey
21-module Classic cover plate, technopolymer, grey

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
21
Mounting direction
Horizontal and vertical
Number of units horizontal
7
Number of units vertical
3
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
3
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting

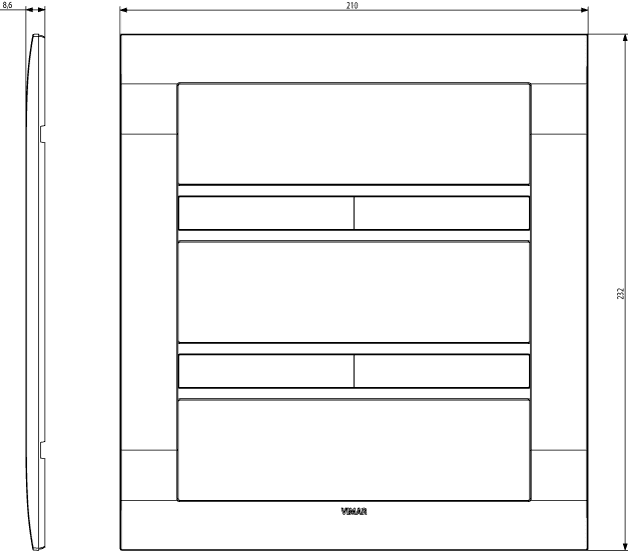

Width
210,00 mm
Height
232,00 mm
Depth
8,60 mm
Built-in width
210,00 mm
Built-in height
232,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352439740
1 NR
21x23.2x0.9 [cm]
75 [g]
Barcode Qty 5 NR
8007352439757
5 NR
25.2x23.3x8.7 [cm]
514.4 [g]
