RJ45 Cat6 Netsafe UTP outlet grey - 20339.13

Pdf
20339.13

Net Safe / Copper / RJ/EDP socket outlets

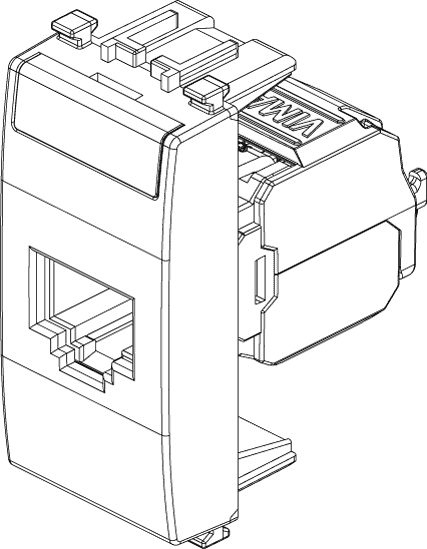

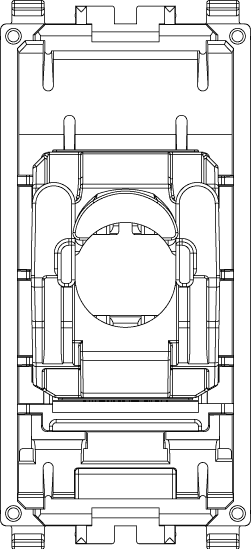

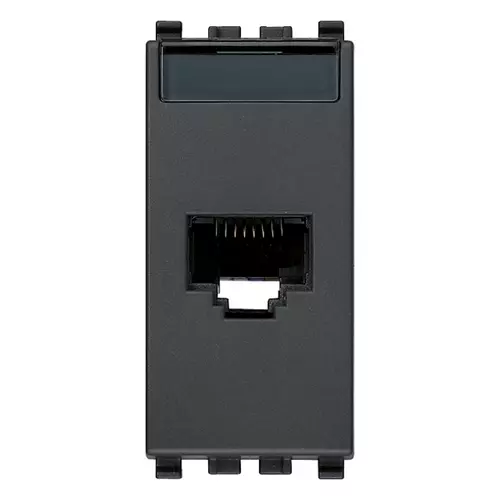

RJ45 Cat6 Netsafe UTP outlet grey
RJ45 outlet with Netsafe connector, Cat. 6, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals without tool use, grey

Product Status
3 - Active

Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
6
Connection type
Crimp
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
Yes
Suitable for litz wire conductor
No
Suitable for solid core
No
Colour
Other
AWG-range
23 - 26

00. CE Marking - EU

10. EAC Eurasian Customs Union

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352463431
1 NR
5.1x4.3x5.3 [cm]
19.8 [g]
Barcode Qty 10 NR
8007352463448
10 NR
26.9x11.6x4.9 [cm]
279.4 [g]
Barcode Qty 200 NR
8007352637399
200 NR
47.5x27x29 [cm]
5,888 [g]
