Connected NFC/RFID outer switch white - 20462.B

Pdf
20462.B

Eikon white / Devices / Radiofrequency

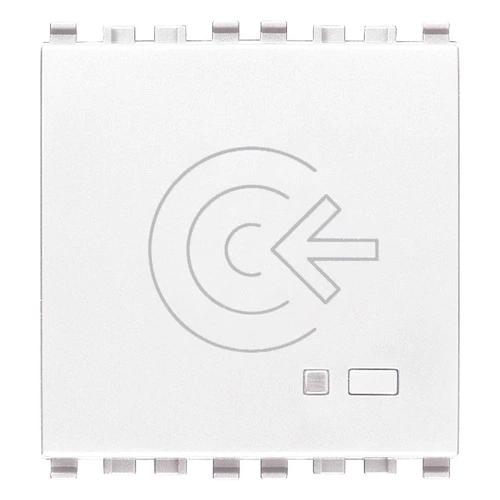

Connected NFC/RFID outer switch white
NFC/RFID smart card landing reader, card configuration using View Wireless App, Bluetooth technology standard, IoT technology on Bluetooth technology 5.0 standard for the creation of View Wireless mesh system, 1 relay output NO 16 A 120-240 V~ 50/60 Hz, 1 DND input, LED with brightness control, 100-240 V~ 50/60 Hz power supply, white - 2 modules

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
Other
Max. number of persons
200
Reading strategy
Code
Signalling
Light signal
Mounting method
Flush mounted (plaster)
Operating voltage at AC 50 Hz
230,00 - 230,01 v
Operating voltage at AC 60 Hz
230,00 - 230,01 v
Operating voltage at DC
0,00 v
Degree of protection (IP)
IP20
Colour
White
Model
Reader
Material
Plastic
Power over Ethernet (PoE)
Other
Width
44,90 mm
Height
49,00 mm
Depth
41,50 mm

37. Marking - Morocco

40. Bluetooth technology

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352659872
1 NR
6x5.4x5.2 [cm]
65 [g]
Barcode Qty 10 NR
8007352663213
10 NR
28.1x13.1x6 [cm]
650 [g]
