Plate 2M marbl.stoneware black Marquina - 22642.53

Pdf

22642.53
Wiring devices / Traditional wiring devices / EIKON / Cover plates

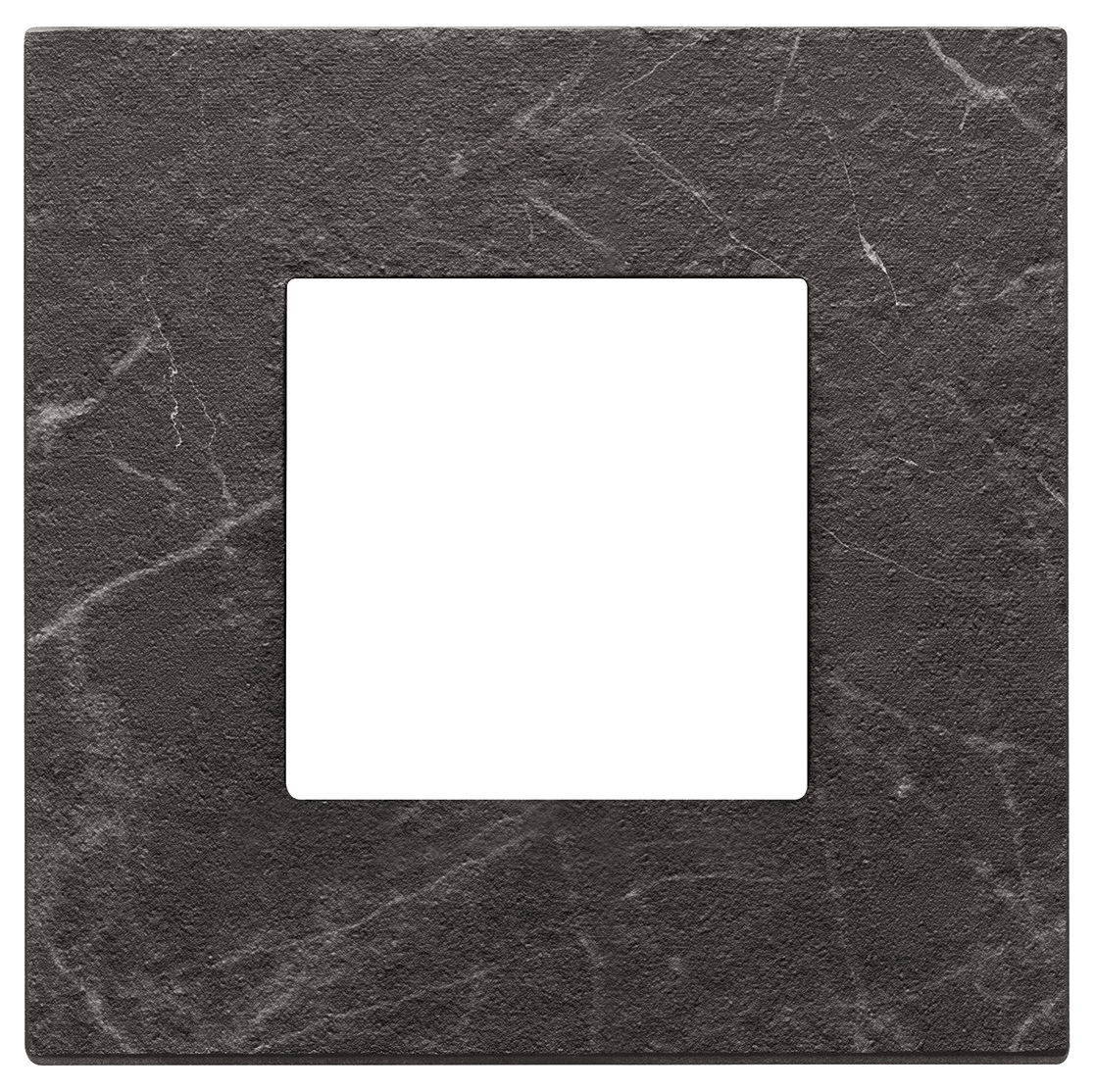

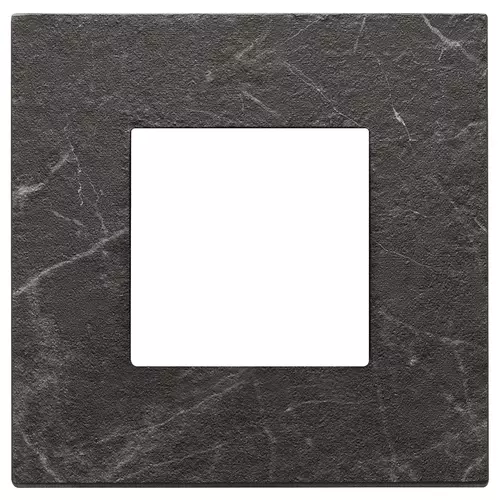

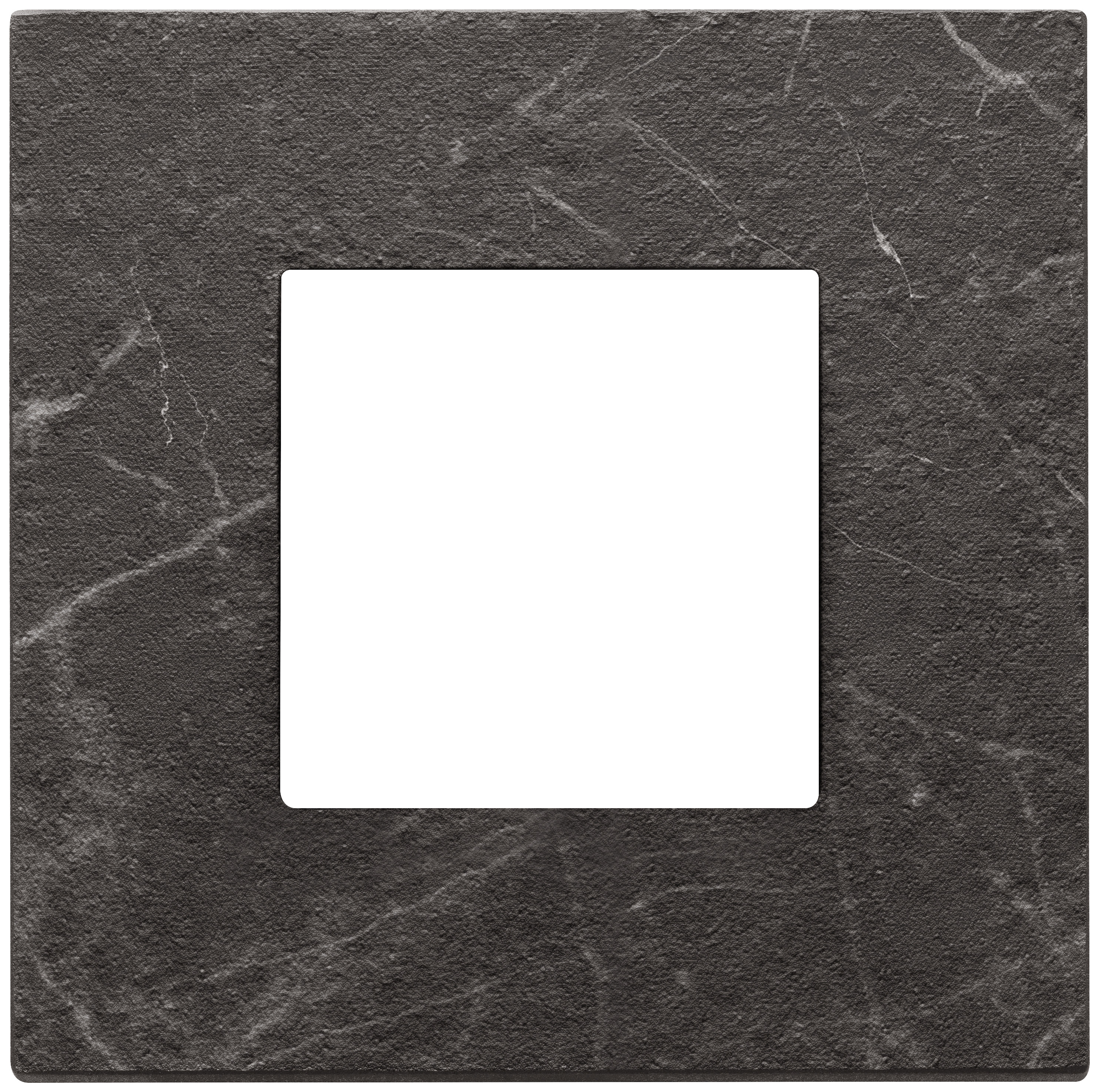

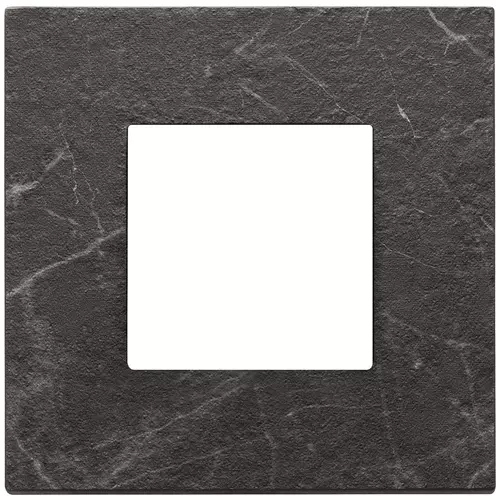

Plate 2M marbl.stoneware black Marquina
2-module cover plate, worked stone, black Marquina

Product Status
3 - Active

You may also be interested in

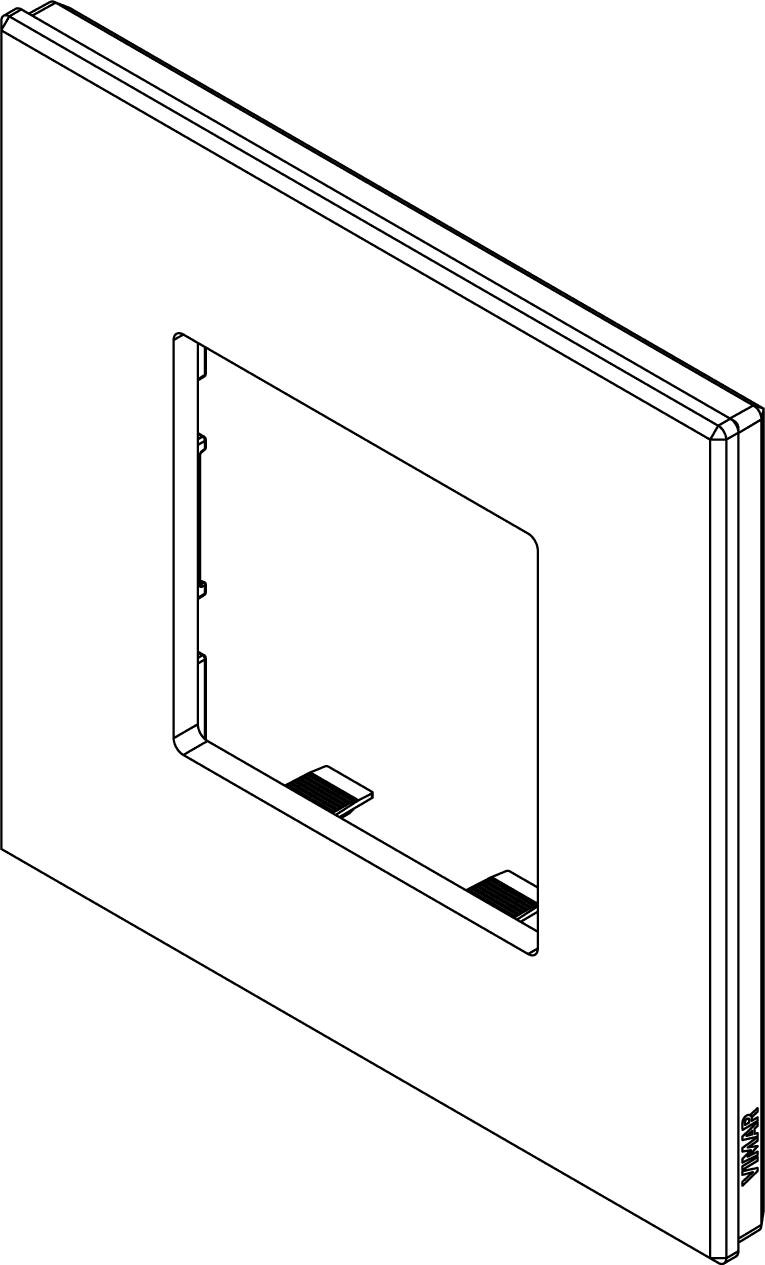

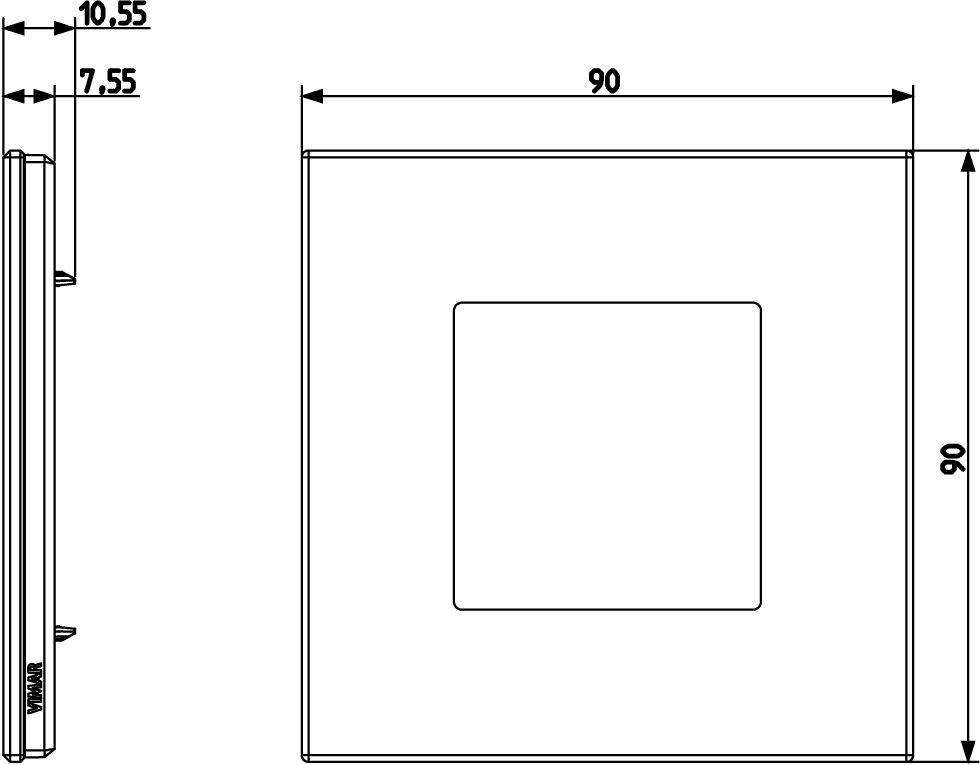

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Other
Material quality
Other
Surface protection
Other
Surface finishing
Matt
Colour
Black
RAL-number (similar)
8022
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
10,55 mm
Built-in width
90,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352610262
1 NR
13.5x14.1x3.9 [cm]
110.8 [g]
