Plate 4M techno white - 30654.00

Pdf
Vimar - 30654.00 - Plate 4M techno white
Vimar - 30654.00 - Plate 4M techno white

30654.00
Wiring devices / Traditional wiring devices / LINEA / Cover plates

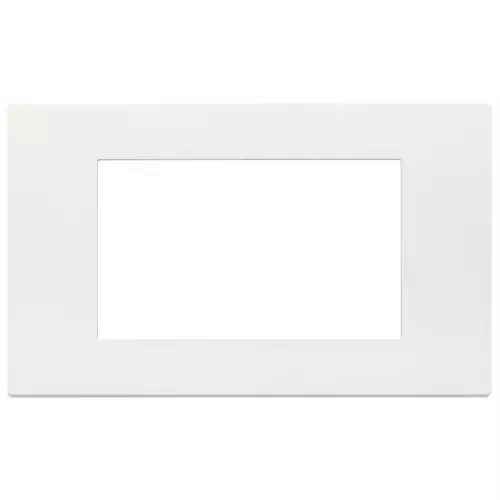

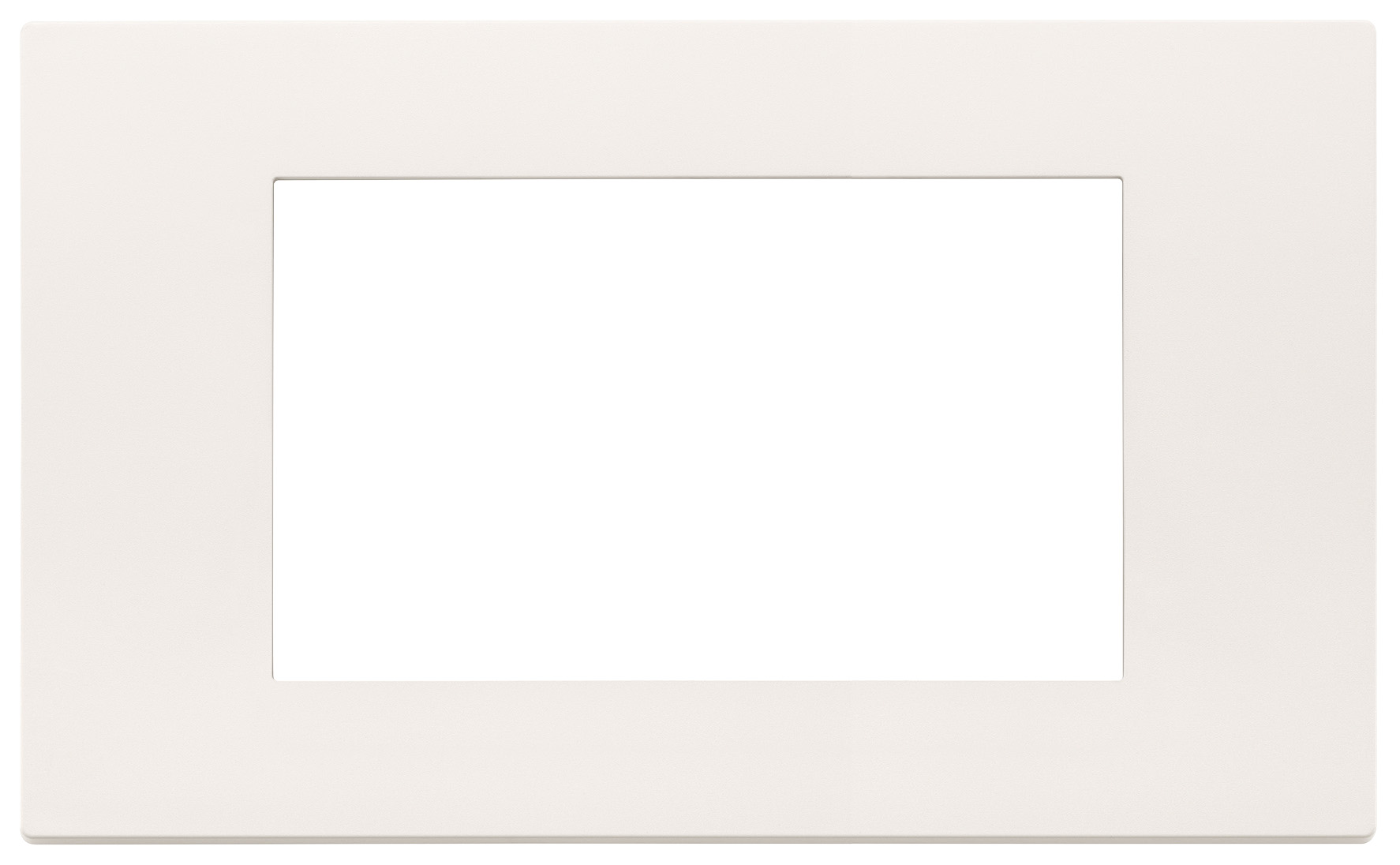

Plate 4M techno white
4-module cover plate, technopolymer, white

Product Status
3 - Active

You may also be interested in

30614
30614 - Frame 4M + screws

Drawings

view encumbered art. 30654.00
PNG DXF
rear view art. 30654.00
PNG DXF
3D view art. 30654.00
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Engage (snap)
Width
146,60 mm
Height
88,00 mm
Depth
10,40 mm
Built-in width
146,60 mm
Built-in height
4,70 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352696051
1 NR
9.7x21x0.9 [cm]
26.715 [g]
Barcode Qty 10 NR
8007352696068
10 NR
21.5x11.5x10.5 [cm]
350 [g]
Barcode Qty 150 NR
8007352696075
150 NR
59x38.5x24 [cm]
6,065 [g]
