Pixel frame+plate 1M anodized grey - 41131.04

41131.04
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Mounting frames/frames

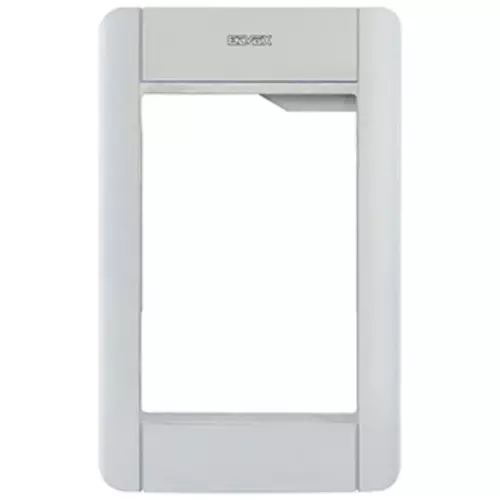

Pixel frame+plate 1M anodized grey

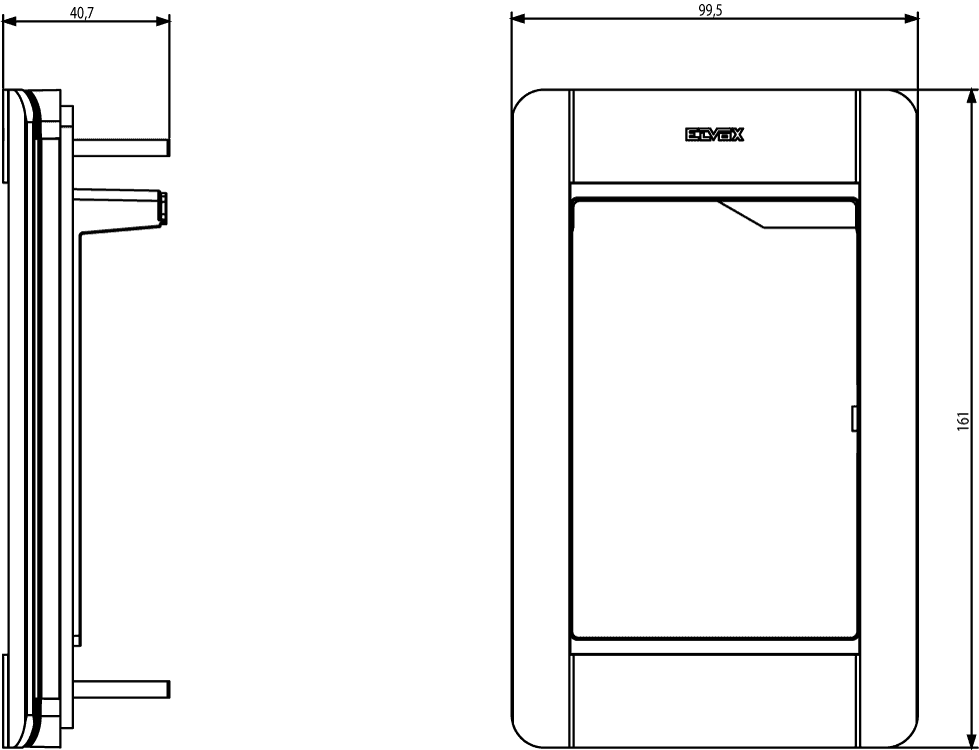

Mounting frame and plate, 1 module, anodized grey. Dimensions 99.5x161 mm

Product Status
3 - Active

You may also be interested in

41141.04 - Pixel rainproof cover 1M anodized grey

9191 - Back box for entrance panels, 1 module

41151.04 - Pixel surface box 1M anodized grey

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (5969 kb)
• Label printer module for entrance panels (2191 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

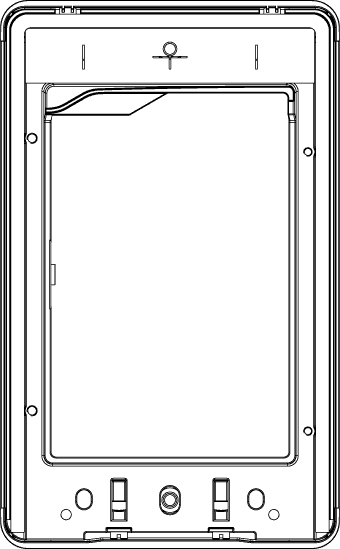

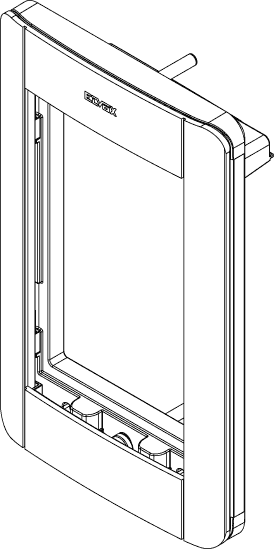

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Mounting element for indoor station door communication

Material
Aluminium

Colour
Grey

Height
161,00 mm

Depth
40,70 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

---

Barcode

8013406271815

1 NR

18.5x12.5x5.5 [cm]

239.6 [g]
