46XVR.ES08
Safety / ELVOX CCTV / AHD / DVR

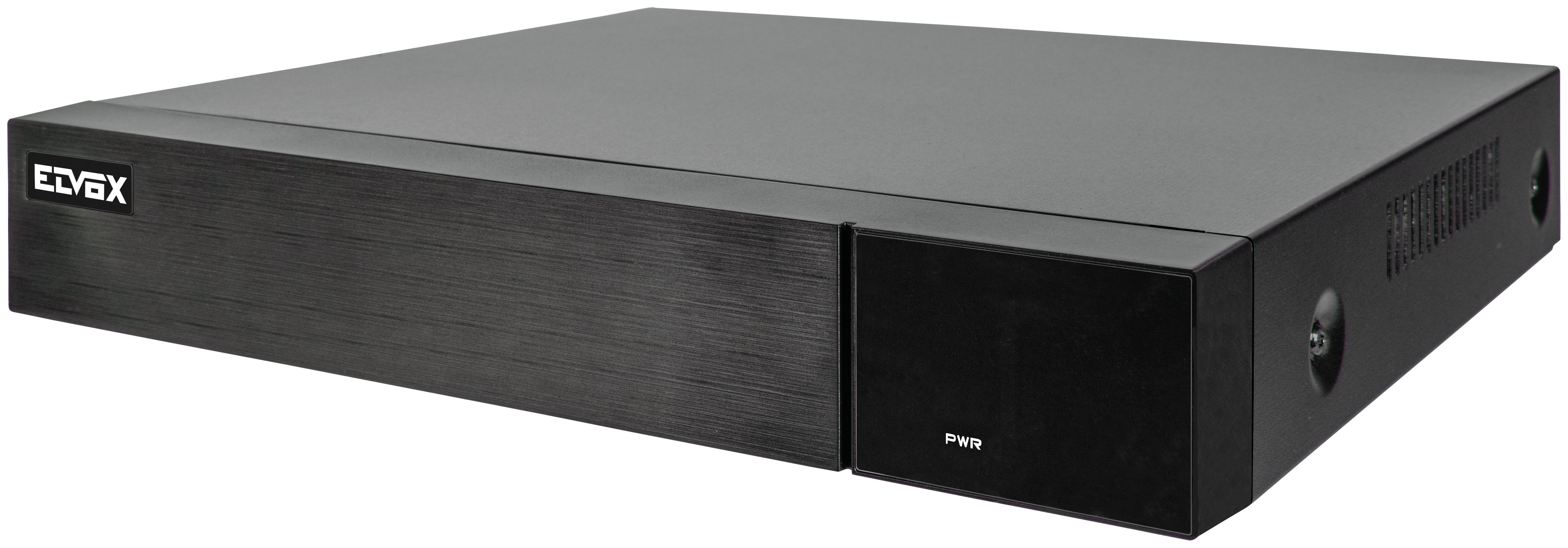

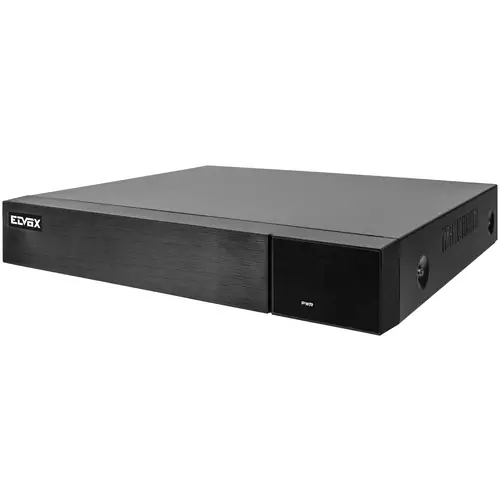

AHD 8-channel XVR - 4K Lite HDD 1TB

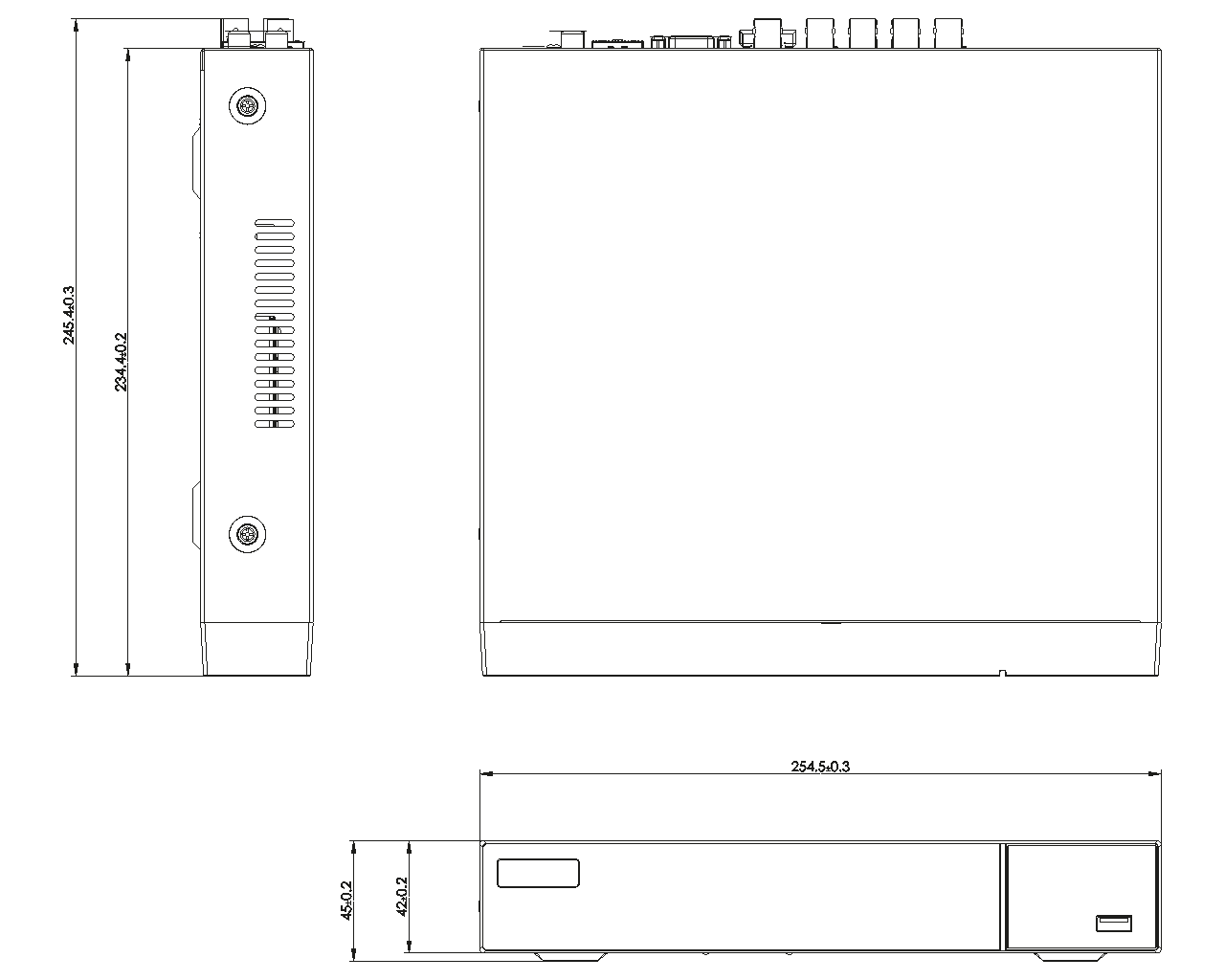

Hybrid XVR with 8 channels AHD/CVBS compatible with 4 additional IP cameras, professional 1 TB HDD, Pentaplex, H.264 and H.265, CsC function, supports AHD up to 5 Mpx (8MpxLite@8fps, 5Mpx Lite, 4 Mpx Lite, 1080p@12fps, 1080p Lite, 720p, WD1 @25 fps) and IP up to 5 MPx (25 fps), 1 in/1 out audio, RS485 port, 2 USB, BNC output (CVBS or SPOT), VGA and HDMI up to Full HD, RJ45 Ethernet, web interface, CVM, remote control and QRCODE. 12 VDC power supply unit included. Dim. 255×222×42 mm

Product Status
3 - Active

You may also be interested in

Class group
Alarm installations, emergency call and signalling
Class
Image storage for video surveillance system
Recording type
Analogue
Device construction
Desktop
Number of hard disc bays
1
Number of preinstalled hard discs
1
Memory capacity per hard disc
1
Max. number of video inputs
8
Max. number of control inputs
0
Number of HDMI connections
1
Number of Mini HDMI connections
0
Number of DVI sockets
0
Number of RJ45 connections
1
Number of inputs DisplayPort (DP)
0
Number of inputs Mini DisplayPort (mDP)
0
Number of D-Sub connections 15-pole
0
Number of BNC connections
8
Number of ports USB-A
0
Number of ports USB-C
2
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With integrated audio analysis
No
Number of ports 1000 Mbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
0
Number of ports PoE
0
Max. PoE power
0 W
Power over Ethernet (PoE)
None
With DVD
No
Redundant power supply
No
Power consumption
15 W
Max. recording resolution
5
Max. data transmission rate
100
Operating system
Linux
Number of pre-licensed cameras
8
RAID 0 capable
No
RAID 1 capable
No
RAID 5 capable
No
RAID 6 capable
No
RAID 10 capable
No
Hot-swappable hard disk capability
No
Width
300 mm
Height
52 mm
Depth
248 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352708518
1 NR
36.5x29.5x9 [cm]
1,470.5 [g]
