EKKO 300D linear kit 24V 3m 300kg

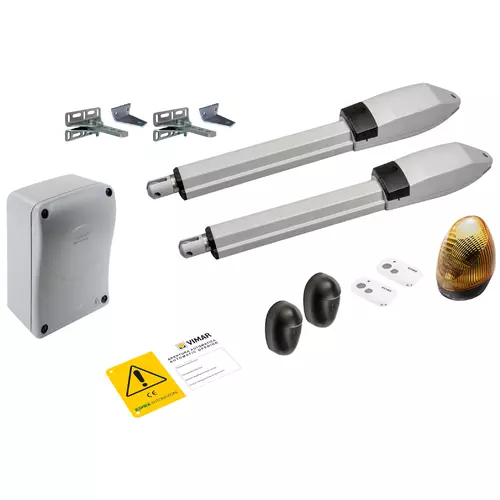

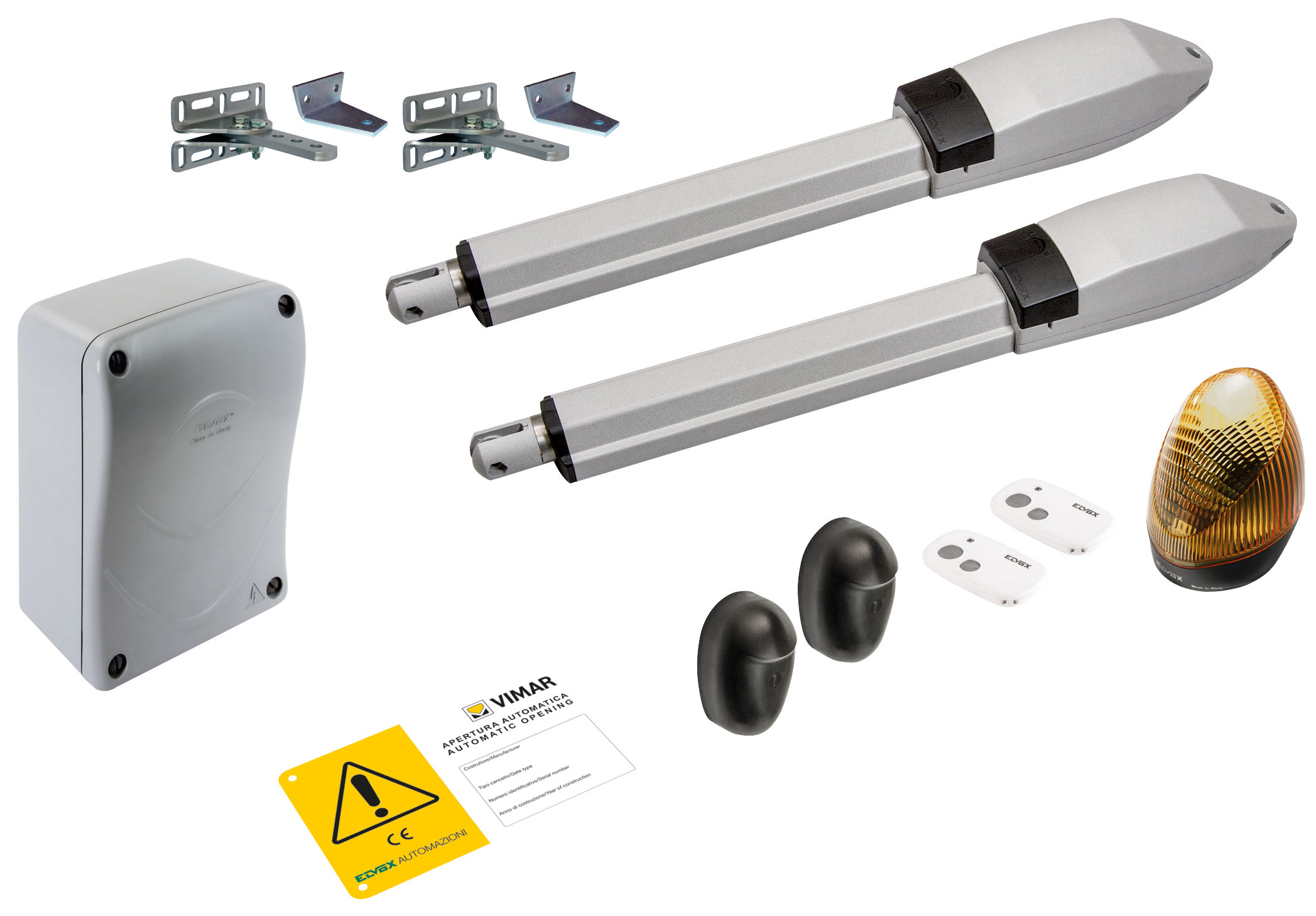

Kit EKKO 300D for swing gates with leaves up to 3 m and 300 kg. Contents: 2 EAM2EKKO 300D non-reversible 24 V electromechanical linear operators, 1 ECA5 24 V display control panel, 1 ELA5 12/24 V LED flashing light with built-in aerial, 2 ETRN2 2-channel 433 MHz rolling code remote controls, 1 EFA3 pair of photocells, 1 ZX20 warning sign. Supply voltage 120 V

Product Status
3 - Active

Kit components

ETRN2 - 2-channel remote control 433MHz rolling

ZX20 - Warning sign

EFA1 - Pair of 12/24V 110mA 180° photocells 15m

ELA5 - Flashing light LED 12/24Vdc

EAM2 - EKKO 300D linear operator 24V 3m 300kg

ECA5 - 24V control panel for EKKO operators

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Quick Guide (1676 kb)
• Multilanguage instructions sheet (1089 kb)
• Manuale installatore (1333 kb)
• Manuel installateur (1340 kb)
• Manual del instalador (1335 kb)
• Installer manual (1306 kb)
• Εγχειρίδιο τεχνικού εγκατάστασης (1279 kb)
• Installationsanleitung (1356 kb)
• Installer manual (1968 kb)

Class group
Drive systems for roller shutters, doors, windows

Class
Swing gate operator

Model
2 wings

Max. width of door/gate wing
3.000 mm

Max. weight of door/gate leaf
800 kg

Drive principle
Electromechanical

Type of current
DC

Motor voltage
24 V

Limit switch
Gate stop

Soft run
Yes

Automatic closing
Yes

Frequency radio receiver
433 MHz

With manual transmitter
Yes

With motor control unit
Yes

With post fittings
Yes

With wing fittings
Yes

With key-switch
No

With radio receiver
Yes

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406231109

1 NR

86x30x32 [cm]

23,174 [g]
