1-family audio kit Voxie 40547+40141 - K40547.E

Pdf
Vimar - K40547.E - 1-family audio kit Voxie 40547+40141
Vimar - K40547.E - 1-family audio kit Voxie 40547+40141
K40547.E

ELVOX Door entry / Due Fili Plus kit / Voxie Series + 1300E panel

1-family audio kit Voxie 40547+40141

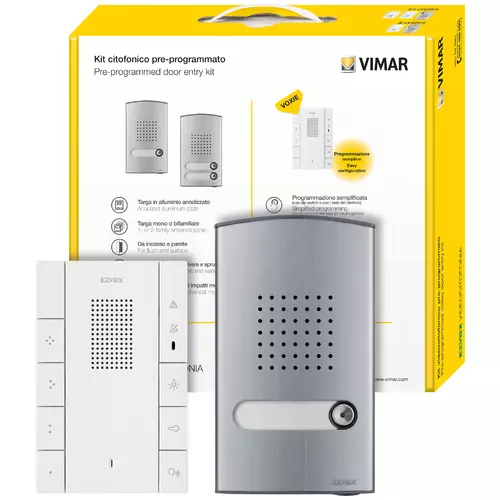

Due Fili Plus one-family entryphone kit, containing: 1 audio electronic unit 40131, 1 1-button audio entrance panel 40141, 1 Voxie hands-free entryphone with 7 buttons 40547, 1 power supply unit 40100

  • Also suitable for refurbishments
  • With Teleloop, optical and acoustic signalling. Crystal-clear sound and visual feedback confirm the activation of the functions, facilitating use for the visually impaired or hearing aid wearers too
  • Simplified configuration with dip switches, push buttons and software
  • Rapid and intuitive functions

Product Status
3 - Active

Kit components

40131
40131 - Audio electronic unit 2F+
40141
40141 - 1-family audio entrance panel
40547
40547 - Voxie interphone 2F+ 7-button white
40100
40100 - Interphone supply unit 2F+ 100-240V 0,6A

You may also be interested in

40598
40598 - Voxie desktop white
Class group
Communication technique
Class
Door station set
With video
No
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
Bus system
Mounting method indoor station
Surface mounted (plaster)
Colour indoor station
White
Mounting method outdoor station
Flush mounted (plaster)
Material outdoor station
Aluminium
Colour outdoor station
Silver
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Opening angle camera
0
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
0,00 mm
Manual adjustable camera
No
Hearing aid compatible
No

00. CE Marking - EU

32. FCC - USA

35. RCM - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352674219
1 NR
36x35.5x9 [cm]
1,408 [g]
Barcode Qty 5 NR
8007352698109
5 NR
49x38.5x37 [cm]
7,040 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
