One-family kit 7in video touch DIN suppl - K40935

Pdf
K40935

ELVOX Door entry / Exclusive / Exclusive

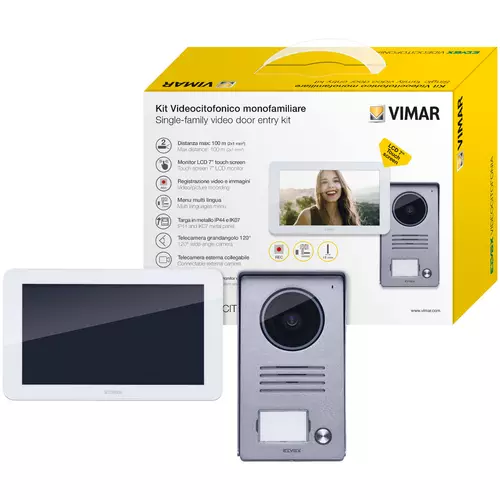

One-family kit 7in video touch DIN suppl
1-family surface mounting video entry kit with: 1 hands-free 7in touch-screen LCD video entryphone, 1 1-button audio/video entrance panel with rainproof cover, 1 40103 supply unit, supplied with fixing bracket

  • The kits are ready to use and do not require any particular programming; maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted (plaster)
Colour indoor station
White
Mounting method outdoor station
Surface mounted (plaster)
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177,80 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

00. CE Marking - EU

28. NSW / RCM - Australia

37. Marking - Morocco

92. RoHS UAE

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406306326
1 NR
26.5x11x20 [cm]
1,294 [g]
Barcode Qty 4 NR
8013406307279
4 NR
46x28x24 [cm]
5,806.5 [g]
