RJ45 Cat5e Netsafe FTP 110 outlet - 08459.5

Pdf
08459.5

Net Safe / Copper / RJ/EDP socket outlets

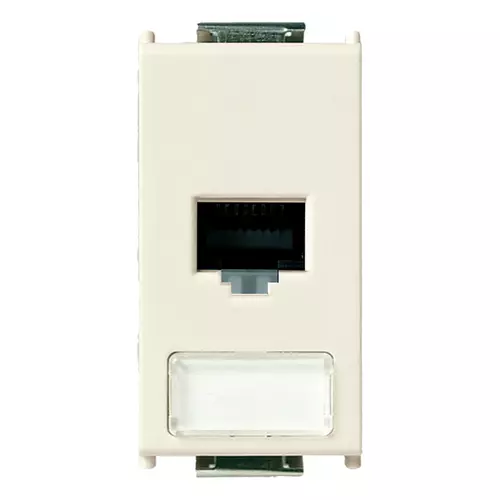

RJ45 Cat5e Netsafe FTP 110 outlet
RJ45 outlet with Netsafe Cat. 5e connector, shielded, T568A/B unversal wiring, 8-contact, 110-type insulation-piercing terminals

Product Status
3 - Active

Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
Yes
Category
5E
Connection type
110
Special tool necessary
Yes
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
No
Suitable for solid core
No
Colour
Other
AWG-range
22 - 26
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352256125
1 NR
6x2.8x5.3 [cm]
28.33 [g]
Barcode Qty 10 NR
8007352256132
10 NR
14.4x13.1x6 [cm]
335.93 [g]
