Shaver supply unit 230V white - 09290

Pdf

09290
Wiring devices / Traditional wiring devices / NEVE UP / Devices

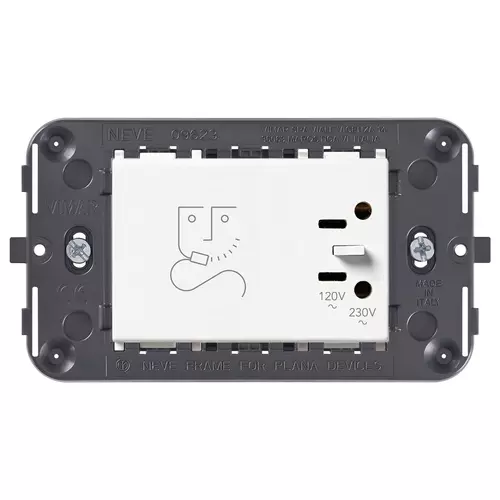

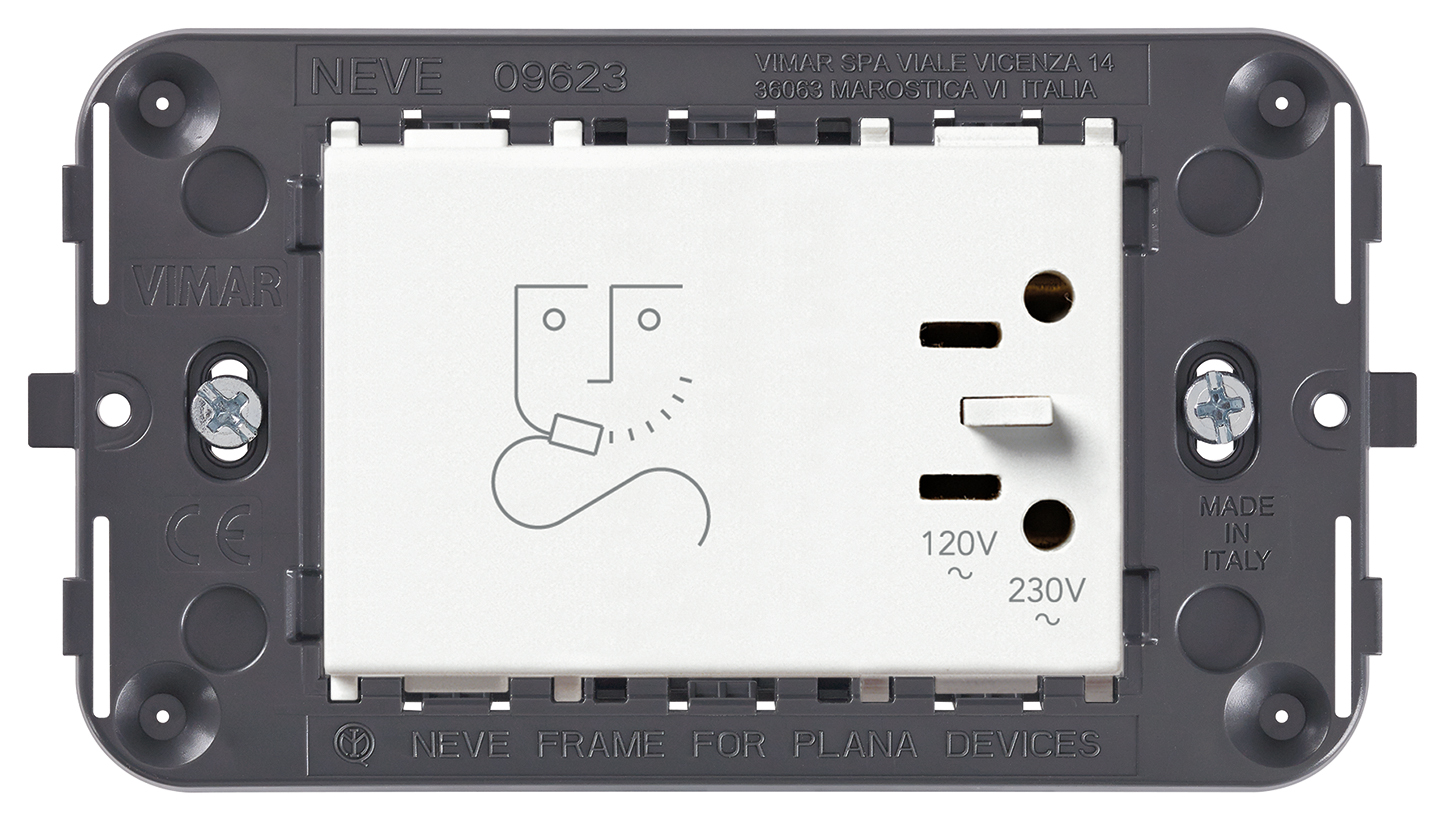

Shaver supply unit 230V white
Shaver socket outlet with 20 VA insulation transformer, 230 V~ 50-60 Hz power supply, 120 V~ output for 2P 15 A 125 V~ American standard non-polarised flat pin plugs and 230 V~ output for 2P 2.5 A europlugs, white - 3 modules

Product Status
3 - Active

You may also be interested in

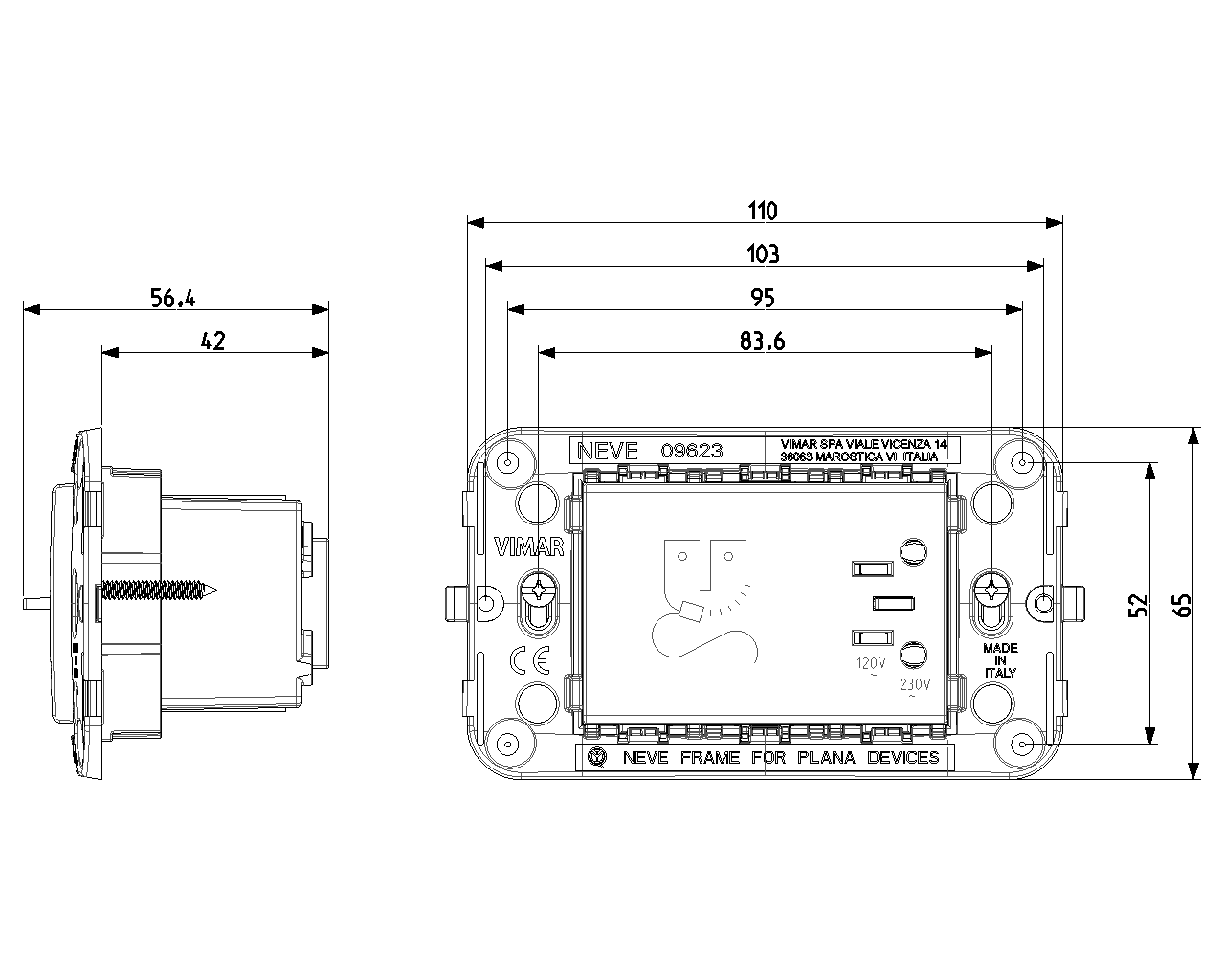

Drawings

Class group
Domestic switching devices
Class
Razor socket outlet
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Mounting method
Flush-mounted
With hinged lid
No
Voltage reversible
No
Nominal voltage low value
230 V
Nominal voltage high value
230 V
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Device width
118,00 mm
Device height
65,00 mm
Device depth
56,40 mm
With built-in installation box
No

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352665705
1 NR
13x8.6x6.85 [cm]
487.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
