Vertical pocket badge switch white - 09465

09465
Wiring devices / Traditional wiring devices / NEVE UP / Devices

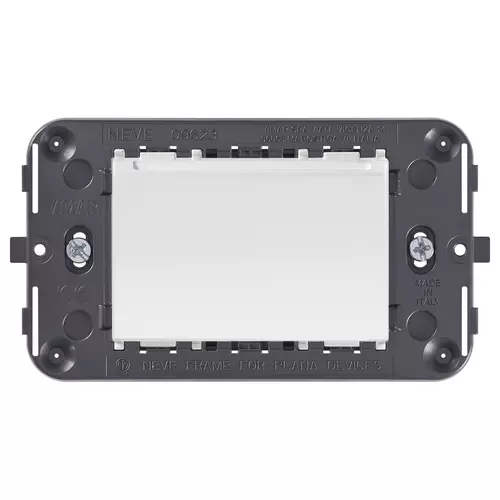

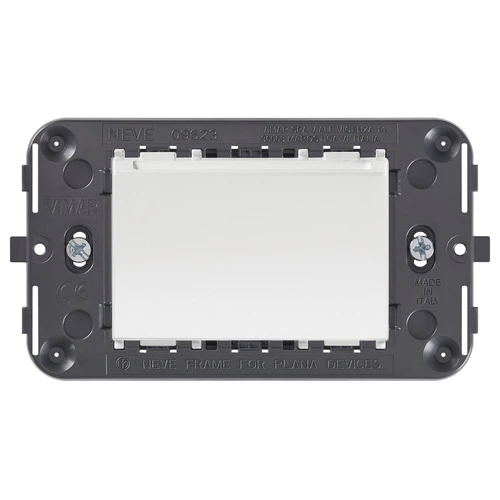

Vertical pocket badge switch white
Electronic badge switch, with vertical pocket, 16 A 250 V~ change-over relay output, 230 V~ 50-60 Hz, 24 V~ 50-60 Hz and 24 VDC (SELV) power supply, white - 3 modules. Supplied without ISO card (badge)

Product Status
3 - Active

You may also be interested in

09026.DND - Button 1M +diffuser DND symb.white

09026.PLS - Button 1M +diffuser PLS symb.white

09052 - 1P NO 10A cord-operated push white

09181 - IR relay-switch 230V white

09257 - 2P+E13ASICURY multistandard outlet white

09290 - Shaver supply unit 230V white

09463 - Vertical badge switch 2M white

09470 - Dial thermostat 100-240V 2M white

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (844 kb)

---

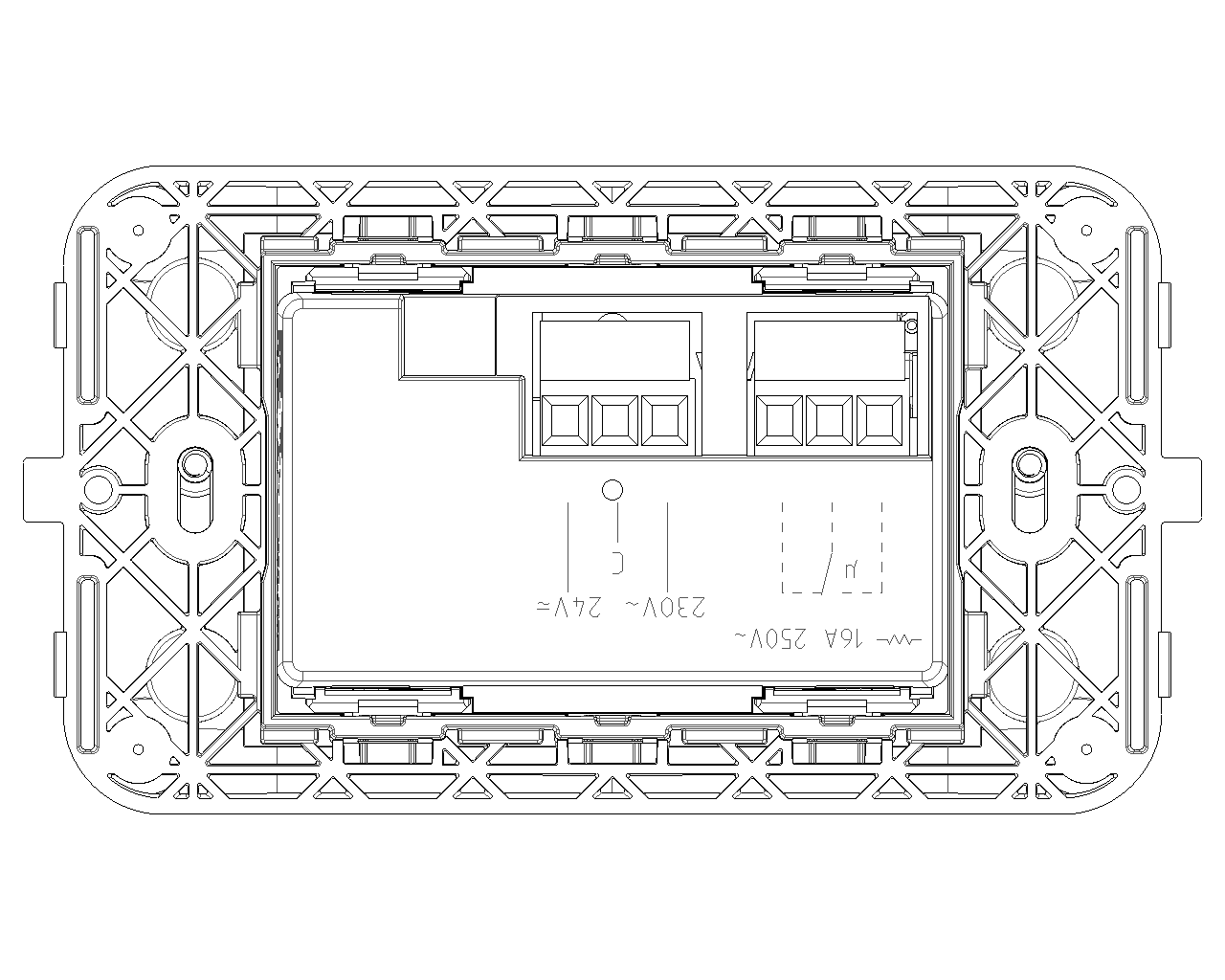

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
None

Type of reading technique
Data medium

Signalling
None

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
250,00 - 250,01 V

Operating voltage AC 60 Hz
250,00 - 250,01 V

Colour
White

Material
Plastic

Width
118,00 mm

Height
65,00 mm

Depth
56,60 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352664654

1 NR

13x8.6x6.85 [cm]

157.6 [g]
