Vertical badge switch 2M white - 09463

Pdf
09463

Neve Up / Systems / Access control system

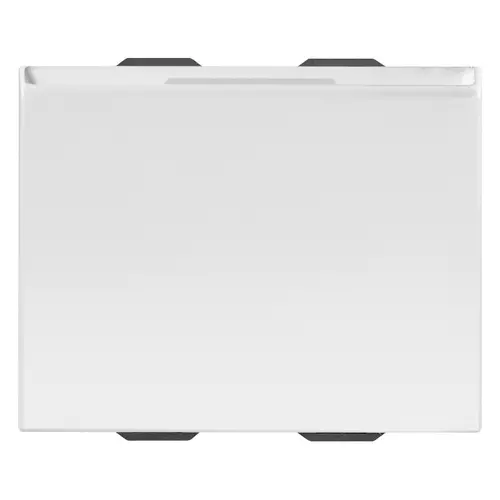

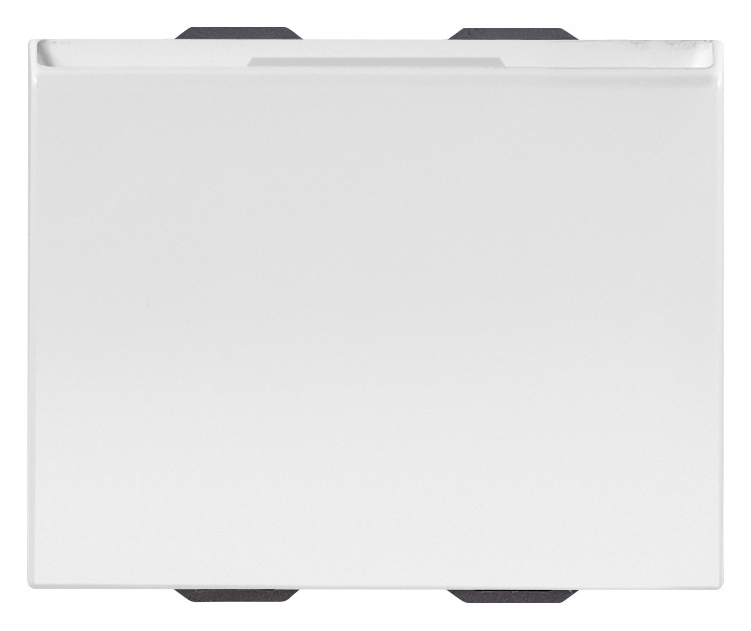

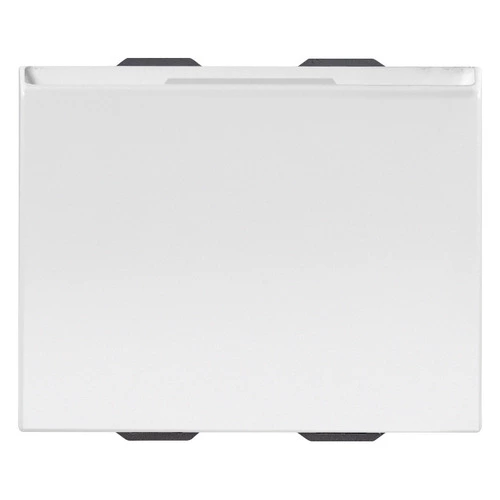

Vertical badge switch 2M white
Upright electronic badge switch, 4 A 250 V~ NO change-over relay output (NON SELV), 120-230 V~ 50-60 Hz power supply, pocket lighting to be visible in darkness, trimmer for regulating switch-off time after removing the card, white - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

You may also be interested in

Sheets, Manuals, Documentation

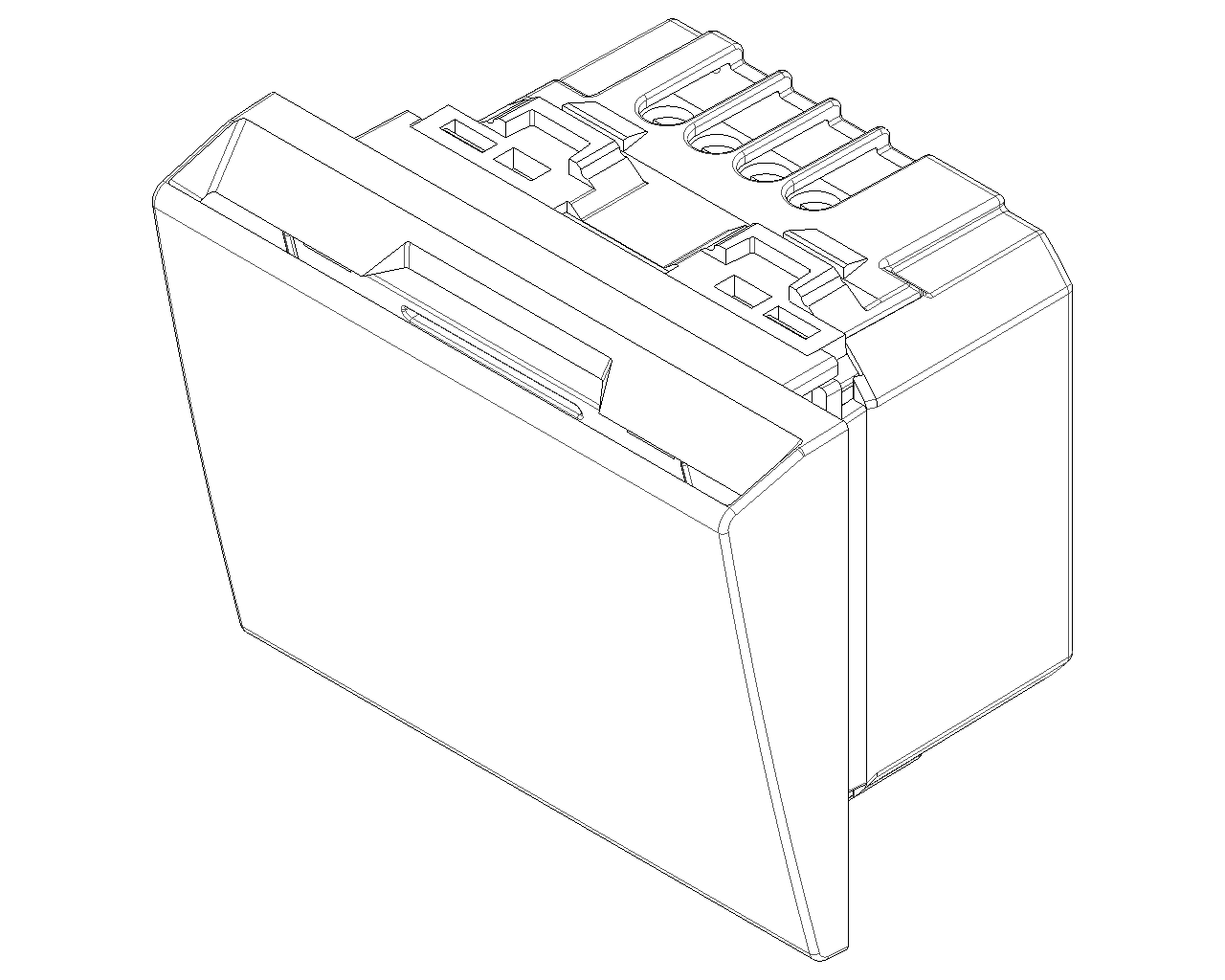

Drawings

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush mounted (plaster)
Operating voltage at AC 50 Hz
250,00 - 250,01 v
Operating voltage at AC 60 Hz
250,00 - 250,01 v
Colour
White
Material
Plastic
Width
59,00 mm
Height
47,00 mm
Depth
43,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352664616
1 NR
5.2x5.7x7.6 [cm]
69.2 [g]
Barcode Qty 5 NR
8007352664623
5 NR
21.4x11.6x6 [cm]
400.8 [g]
Barcode Qty 50 NR
8007352726055
50 NR
30.5x25.5x22.5 [cm]
4,008 [g]
