Dial thermostat 100-240V 2M whiteCode 09470
- 09470
- Wiring devices / Traditional wiring devices / NEVE UP / Devices

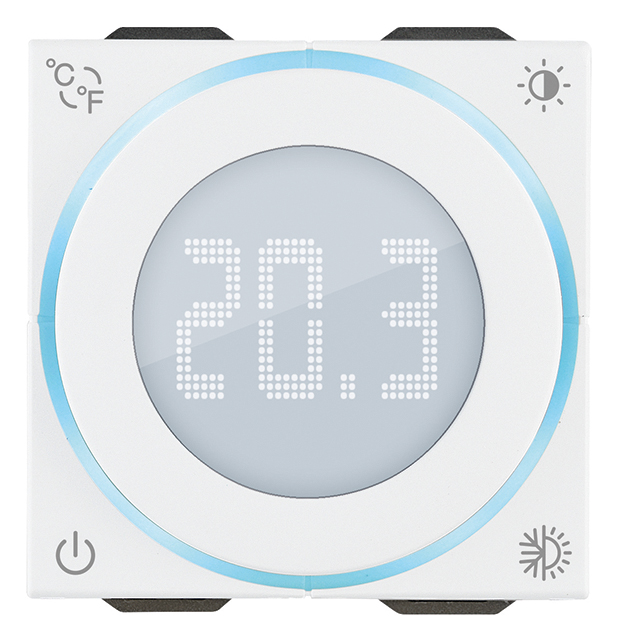

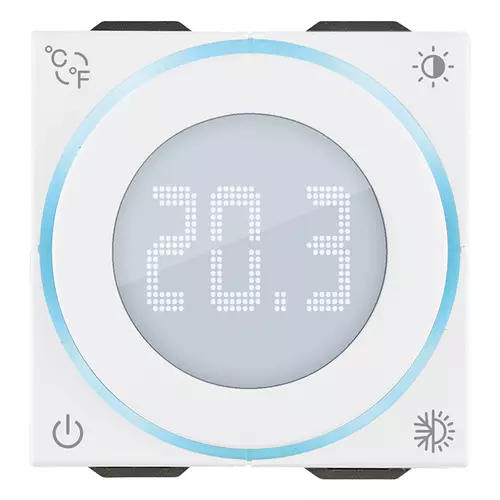

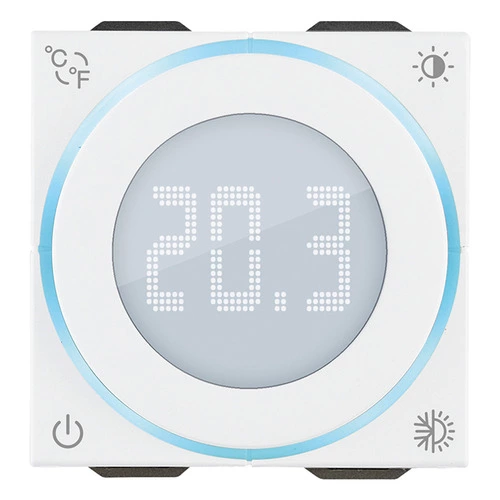

- Dial thermostat 100-240V 2M white
- Rotary, dial thermostat with relay output 5(2) A 240 V~, heating and air conditioning in ON/OFF mode, class I temperature control device (contribution 1%), white LED backlighting with brightness control, 100-240 V 50/60 Hz power supply, white - 2 modules
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation

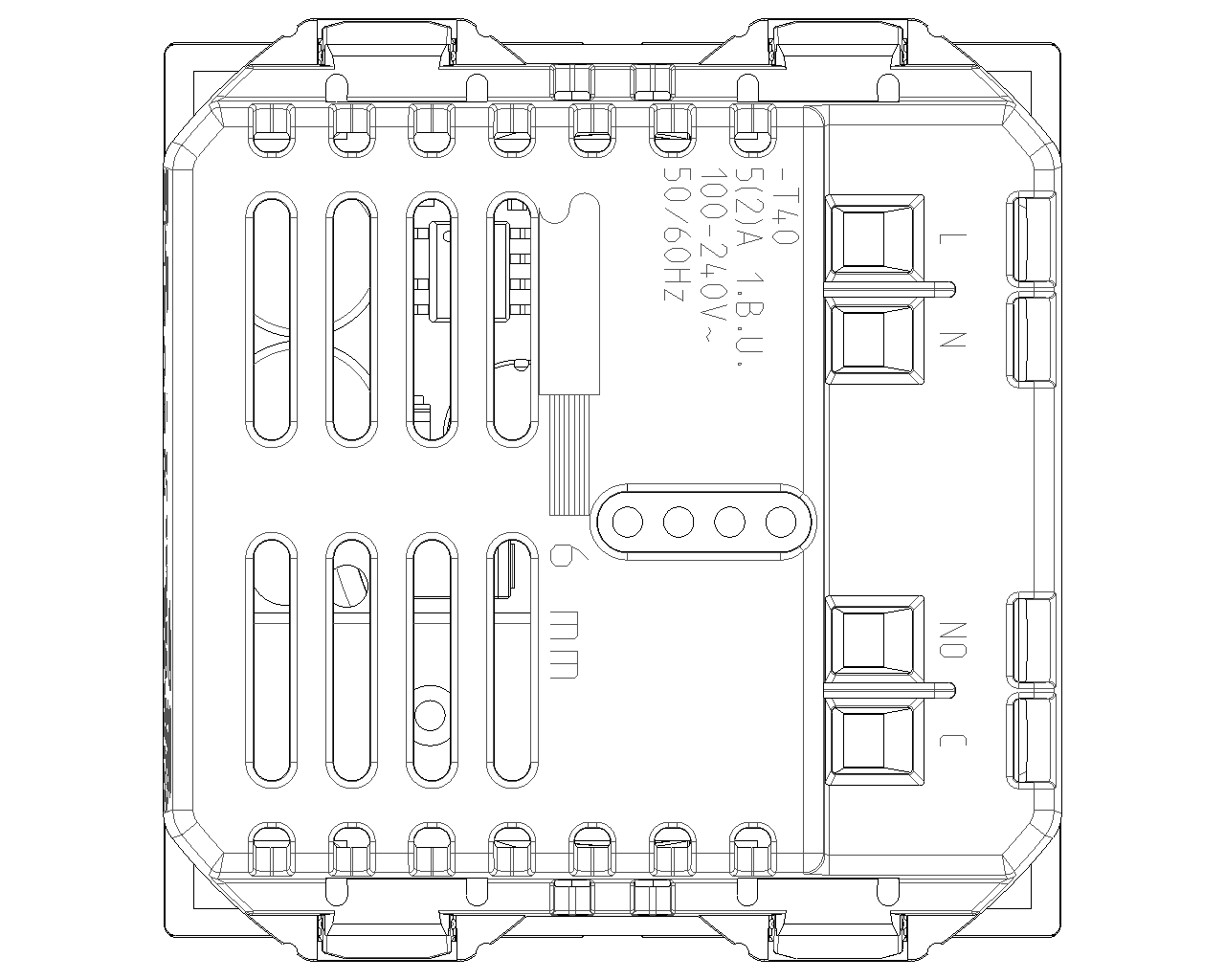

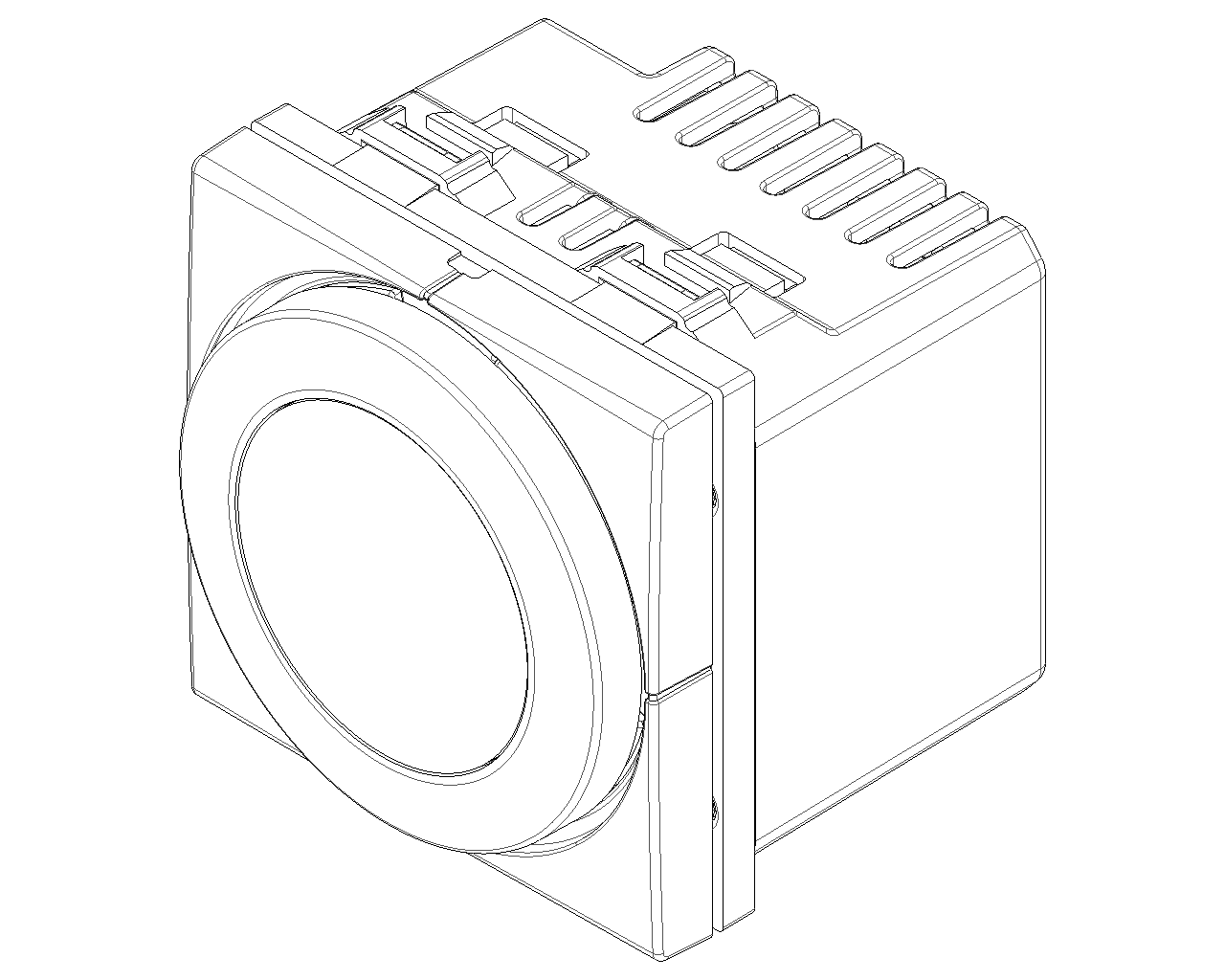

Drawings
Class group
Stats, switches and controllers
Stats, switches and controllers
Class
Room thermostat
Room thermostat
Temperature readable
No
No
Mounting method
Flush-mounted
Flush-mounted
Max. contact voltage
230 V
230 V
Colour
White
White
Height
47,00 mm
47,00 mm
Width
44,80 mm
44,80 mm
Depth
41,50 mm
41,50 mm
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352667228
1 NR
5.7x5.3x7.7 [cm]
81.8 [g]
8007352746510
60 NR
37.5x30x13.5 [cm]
5,250.84 [g]
