Button 1M +diffuser DND symb.white - 09026.DND

Pdf

09026.DND
Wiring devices / Traditional wiring devices / NEVE UP / Buttons

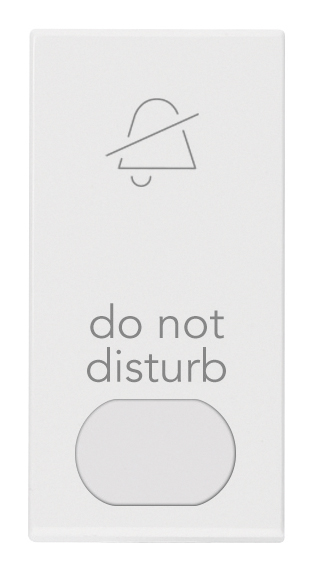

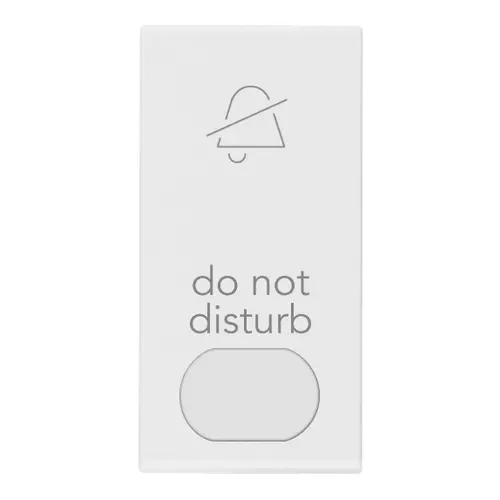

Button 1M +diffuser DND symb.white
1-module interchangeable button, lighTable Do Not Disturb symbol with speaker, white

Product Status
3 - Active

You may also be interested in

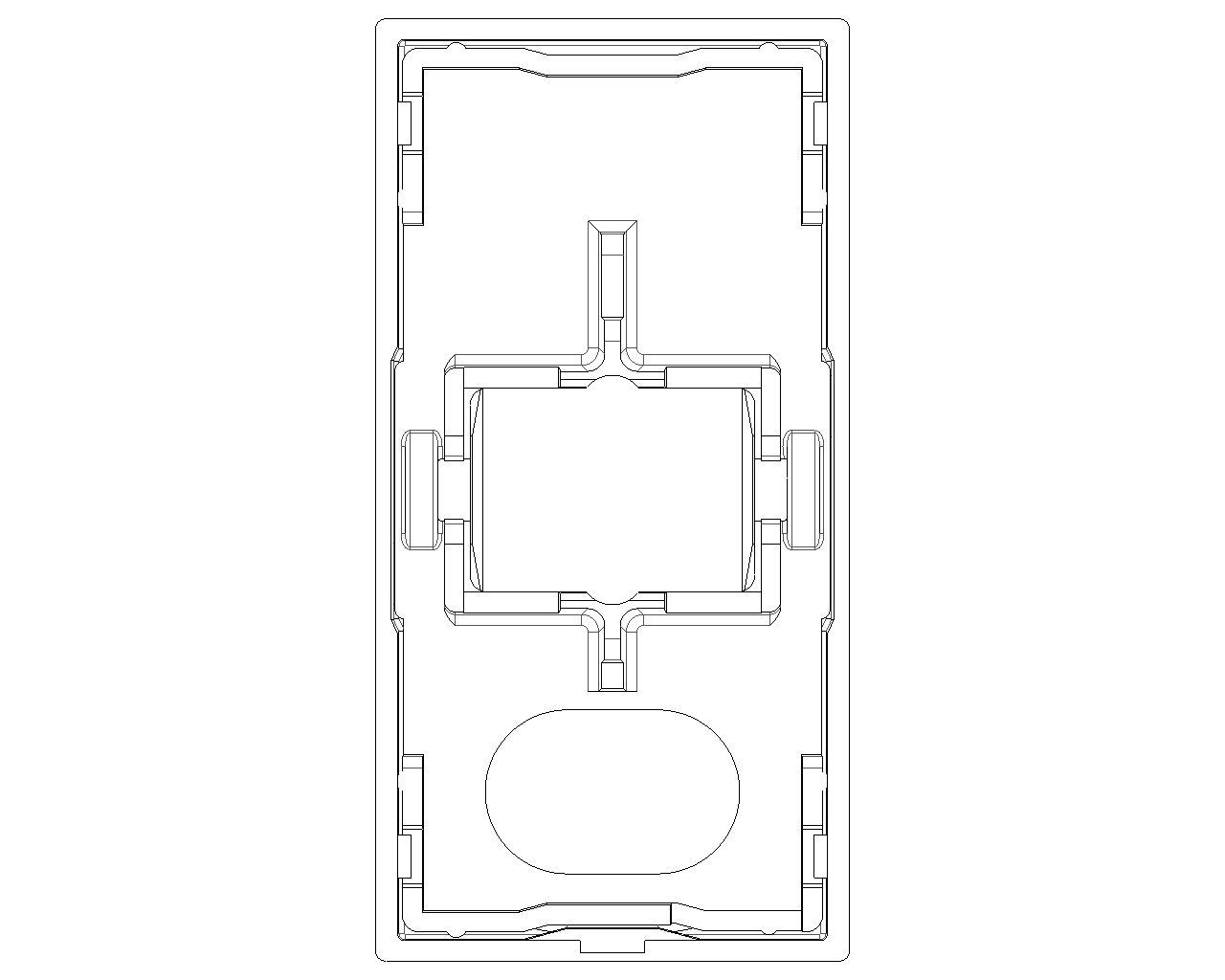

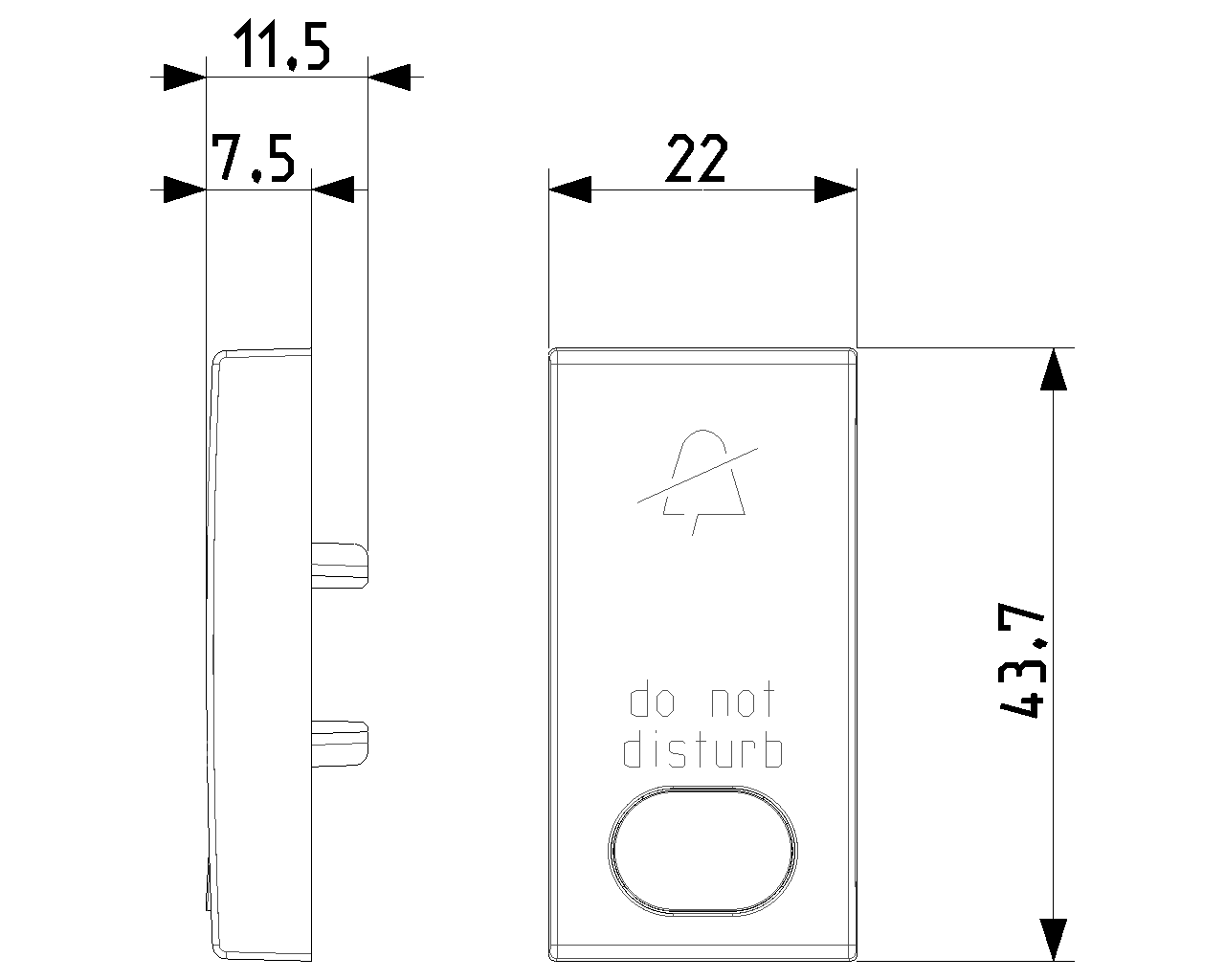

Drawings

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
Various symbols
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With exchangeable lens/symbol
Yes
Depth
750,00 mm

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352667846
1 NR
2.2x4.4x1.1 [cm]
6.388 [g]
Barcode Qty 5 NR
8007352667853
5 NR
5.1x2.8x5.3 [cm]
24.36 [g]
Barcode Qty 50 NR
8007352667860
50 NR
14.4x11.6x6 [cm]
284.42 [g]
Barcode Qty 600 NR
8007352668768
600 NR
36.5x33x13.5 [cm]
3,833.04 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
