1P NO 10A cord-operated push white - 09052

Pdf

Vimar - 09052 - 1P NO 10A cord-operated push white

09052
Wiring devices / Traditional wiring devices / NEVE UP / Devices

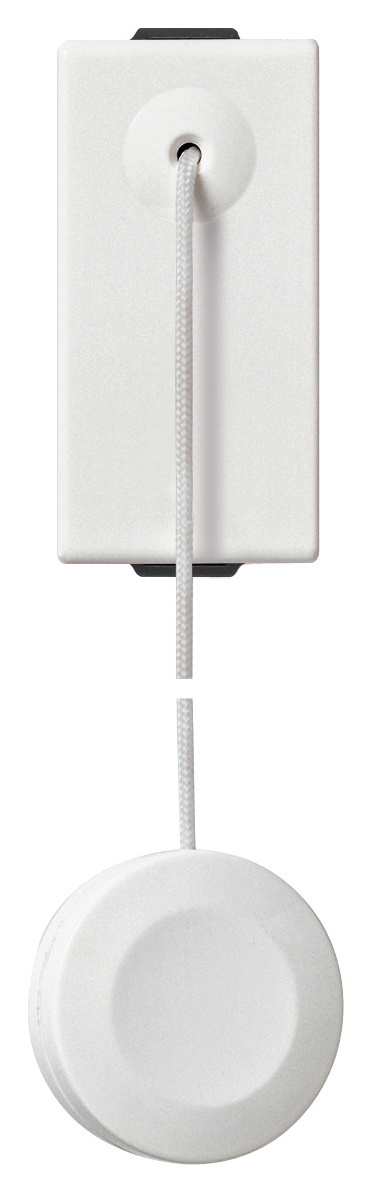

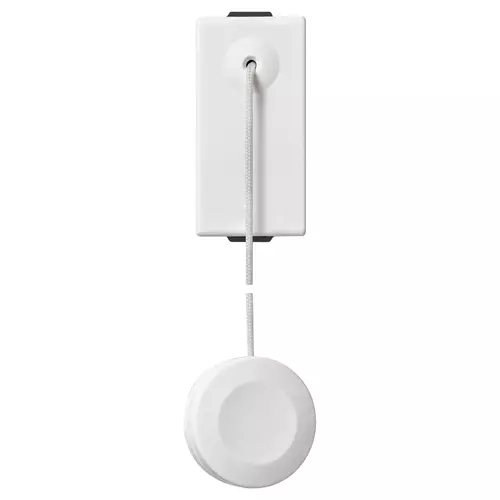

1P NO 10A cord-operated push white
1P NO 10 A 250 V~ push button, with pull-cord and 1.5 m cord and knob, white

Product Status
3 - Active

You may also be interested in

09470 - Dial thermostat 100-240V 2M white

09026.PLS - Button 1M +diffuser PLS symb.white

09026.DND - Button 1M +diffuser DND symb.white

09463 - Vertical badge switch 2M white

09290 - Shaver supply unit 230V white

09465 - Vertical pocket badge switch white

09257 - 2P+E13ASICURY multistandard outlet white

09181 - IR relay-switch 230V white

Drawings

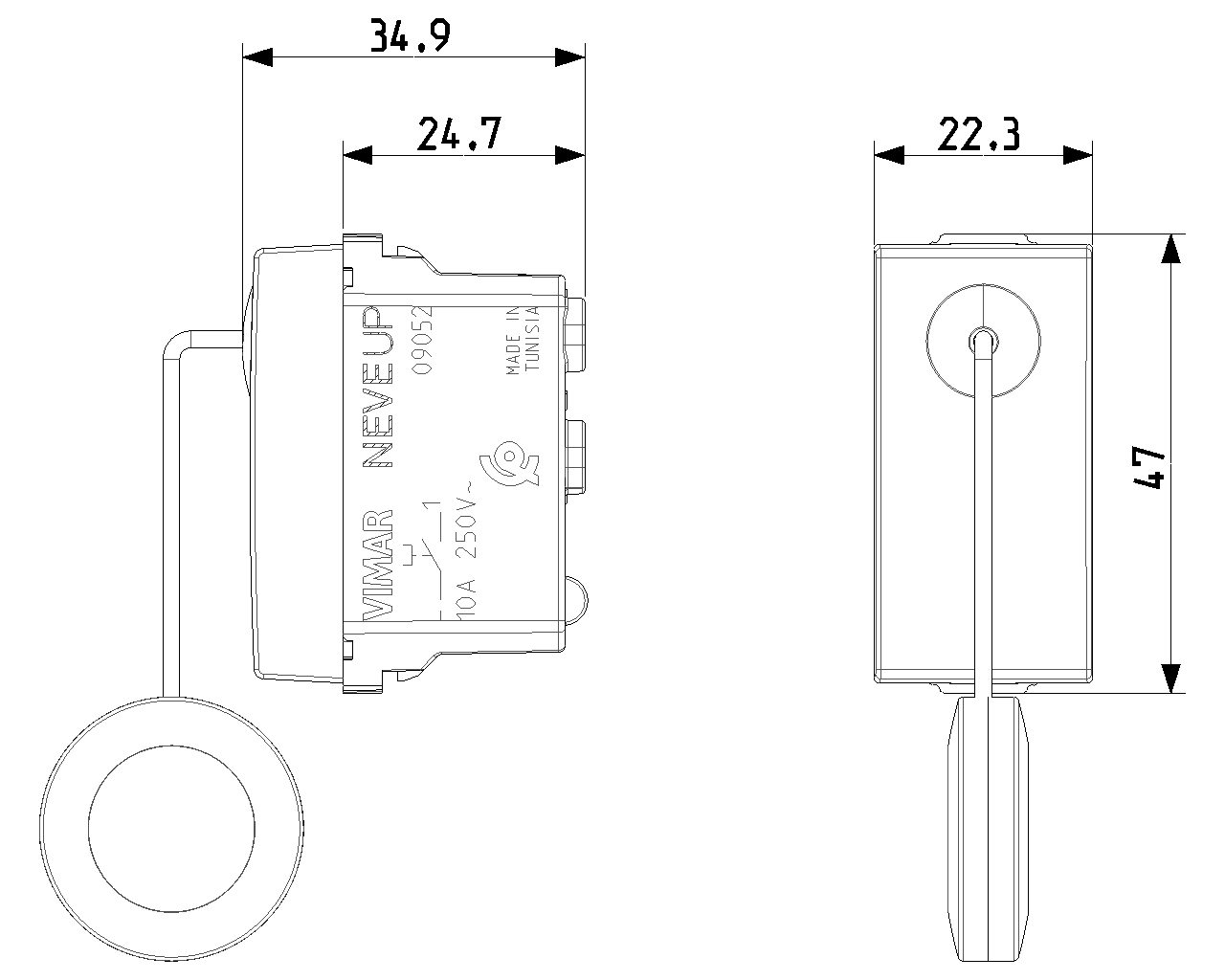

view encumbered art. 09052

PNG DXF

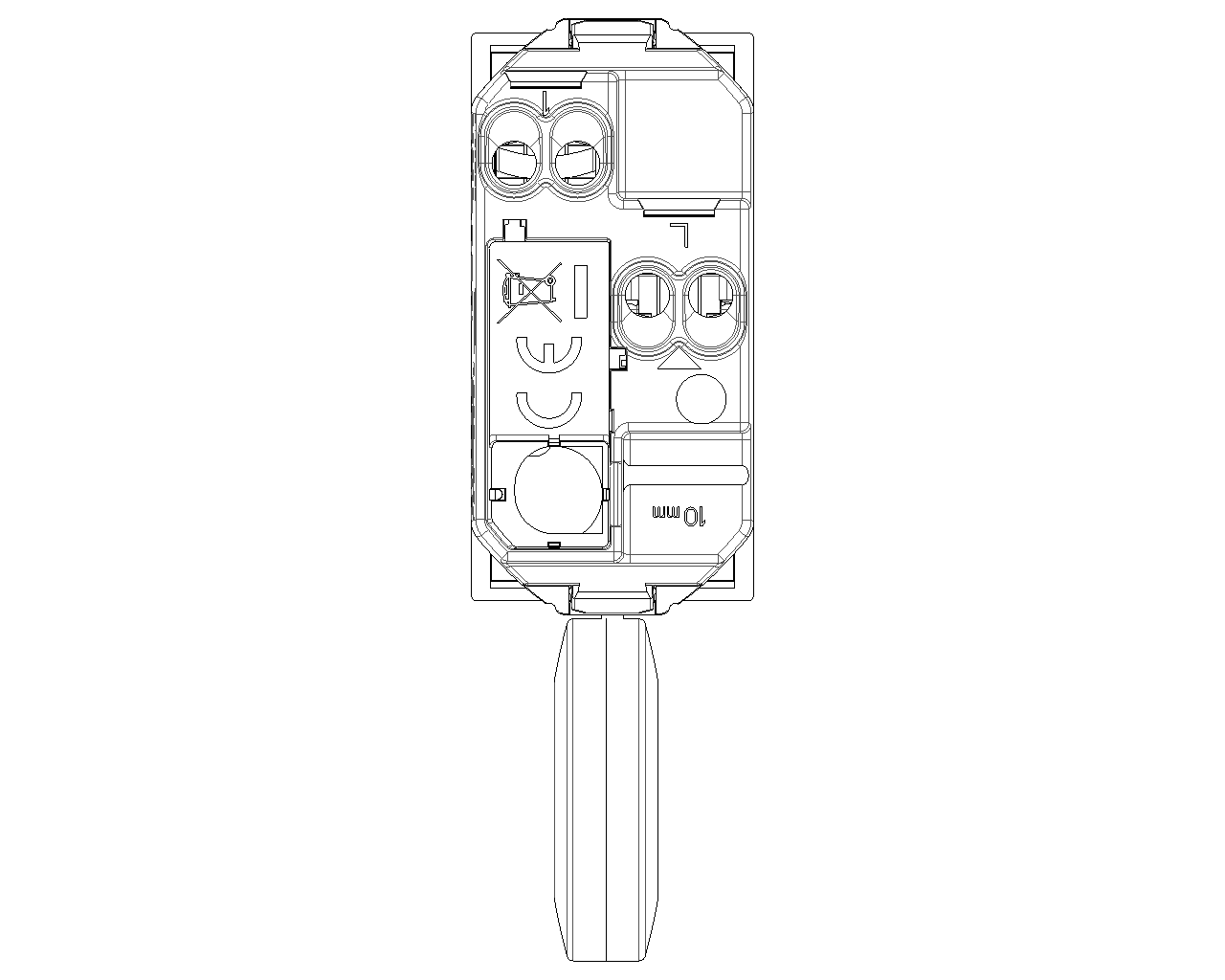

rear view art. 09052

PNG DXF

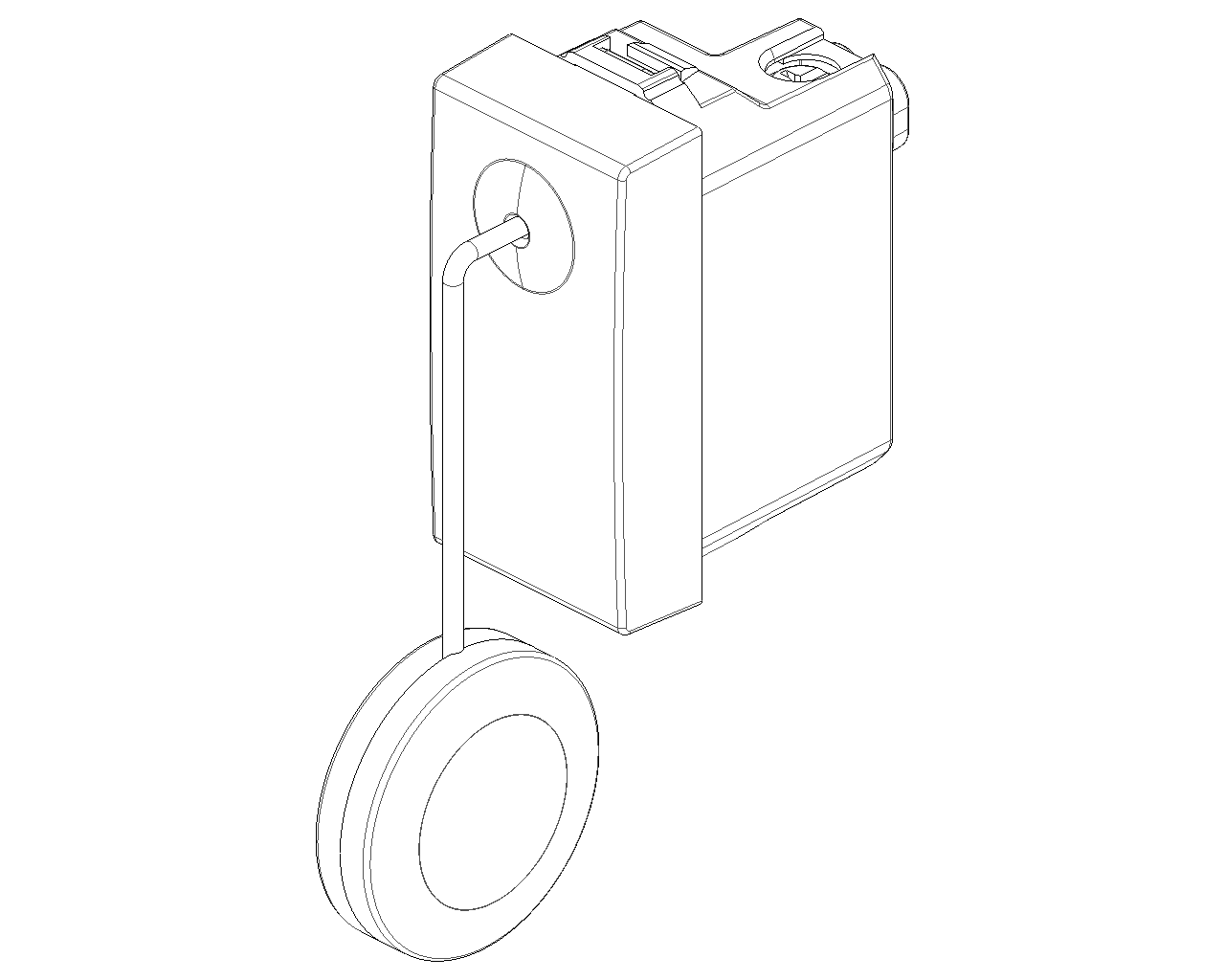

3D view art. 09052

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
0

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Anti-bacterial treatment
No

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Transparent
No

Label space/information surface
Yes

Device width
22,30 mm

Device height
47,00 mm

Device depth
34,90 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

8007352655072

1 NR

6x2.8x5.3 [cm]

30.2 [g]

8007352655089

20 NR

28.1x13.1x6 [cm]

690.8 [g]

8007352666986

240 NR

38.5x28x30 [cm]

8,771.6 [g]
