09595.0.120
Wiring devices / View Wireless wiring devices / NEVE UP / Devices
IoT connected dimmer mechanism 120V
Product Status
3 - Active
Sheets, Manuals, Documentation
- Light Multilanguage instructions sheet (1077 kb)
- ورقة الإرشادات Full (723 kb)
- Foglio istruzioni Full (659 kb)
- Notice technique Full (661 kb)
- Ficha de instrucciones Full (634 kb)
- Full instructions sheet (654 kb)
- Φυλλάδιο οδηγιών Full (807 kb)
- Anweisungsblatt Full (659 kb)
- Manuale app View Wireless (16695 kb)
- Manuel appli View Wireless (36896 kb)
- Manual app View Wireless (36835 kb)
- Manual View Wireless app (36774 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
- Installationsanleitung View Wireless (36685 kb)

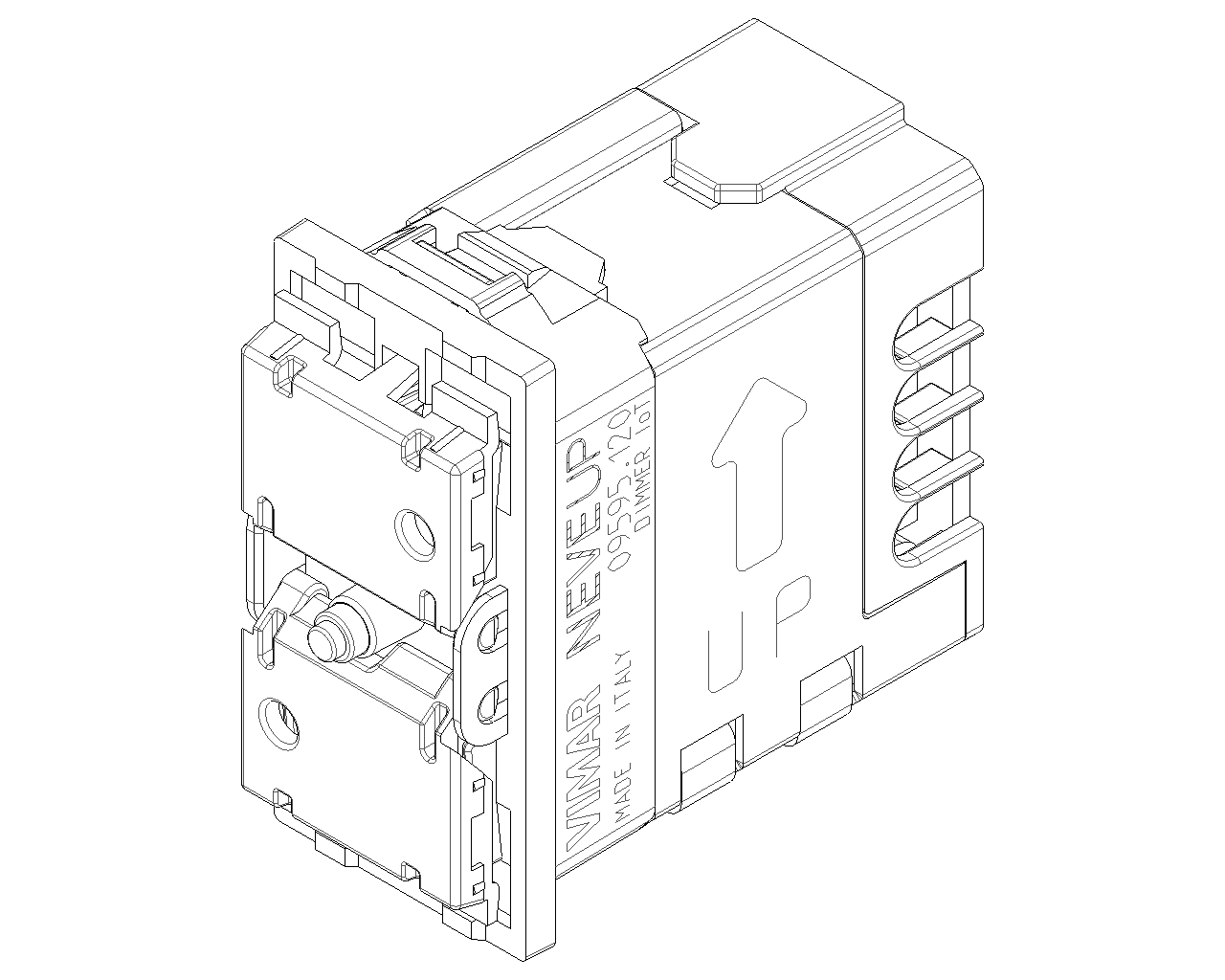

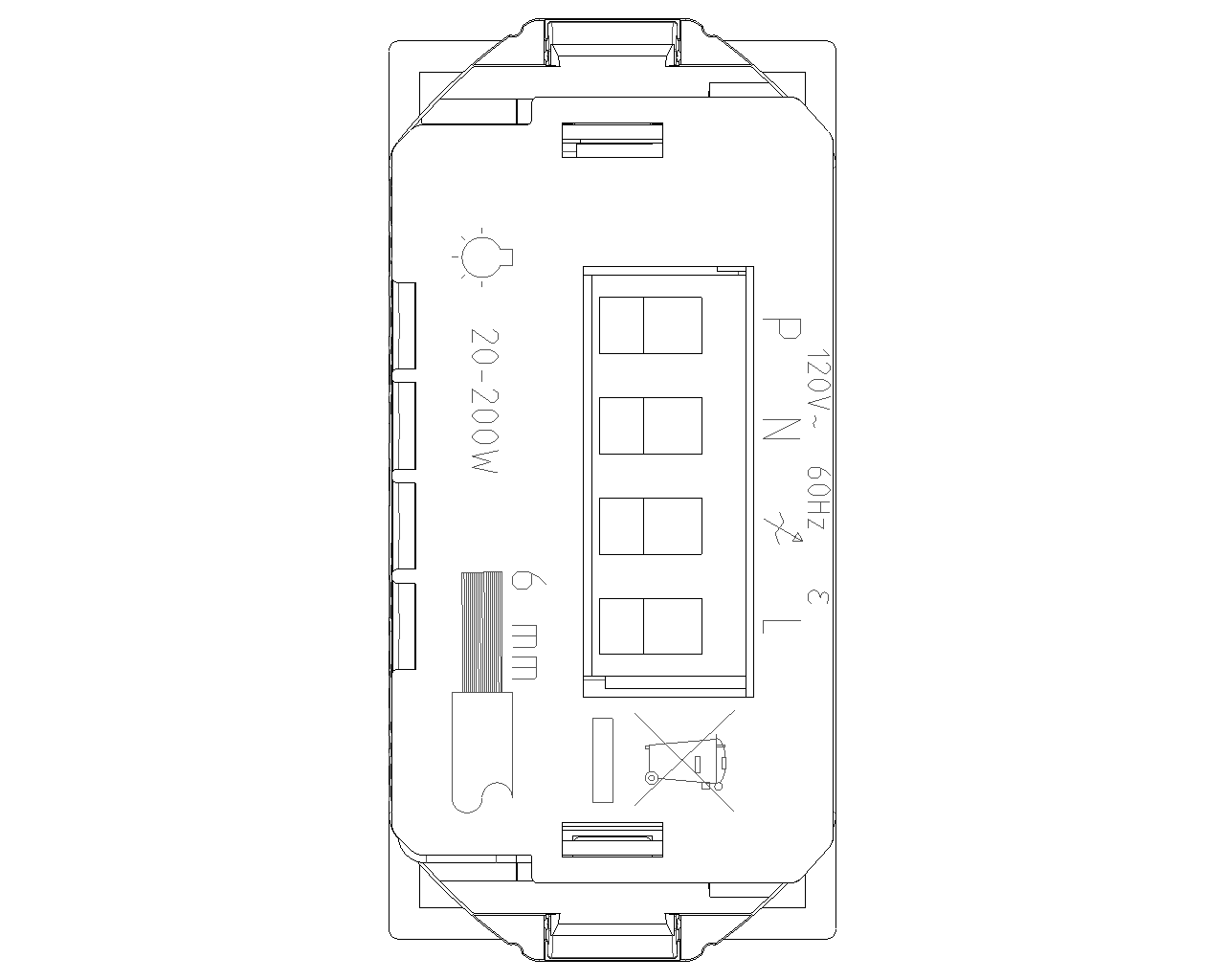

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Other
Other
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Built-in installation
Built-in installation
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
Green
Green
RAL-number (similar)
9003
9003
Label space/information surface
No
No
Illumination
Yes
Yes
Function lighting
Illuminated (on)
Illuminated (on)
Type of lighting
LED not exchangeable
LED not exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Not available
Not available
Nominal voltage
120 V
120 V
Rated current
0,00 A
0,00 A
Switching current for fluorescent lamps
0
0
Feedback-signal contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No

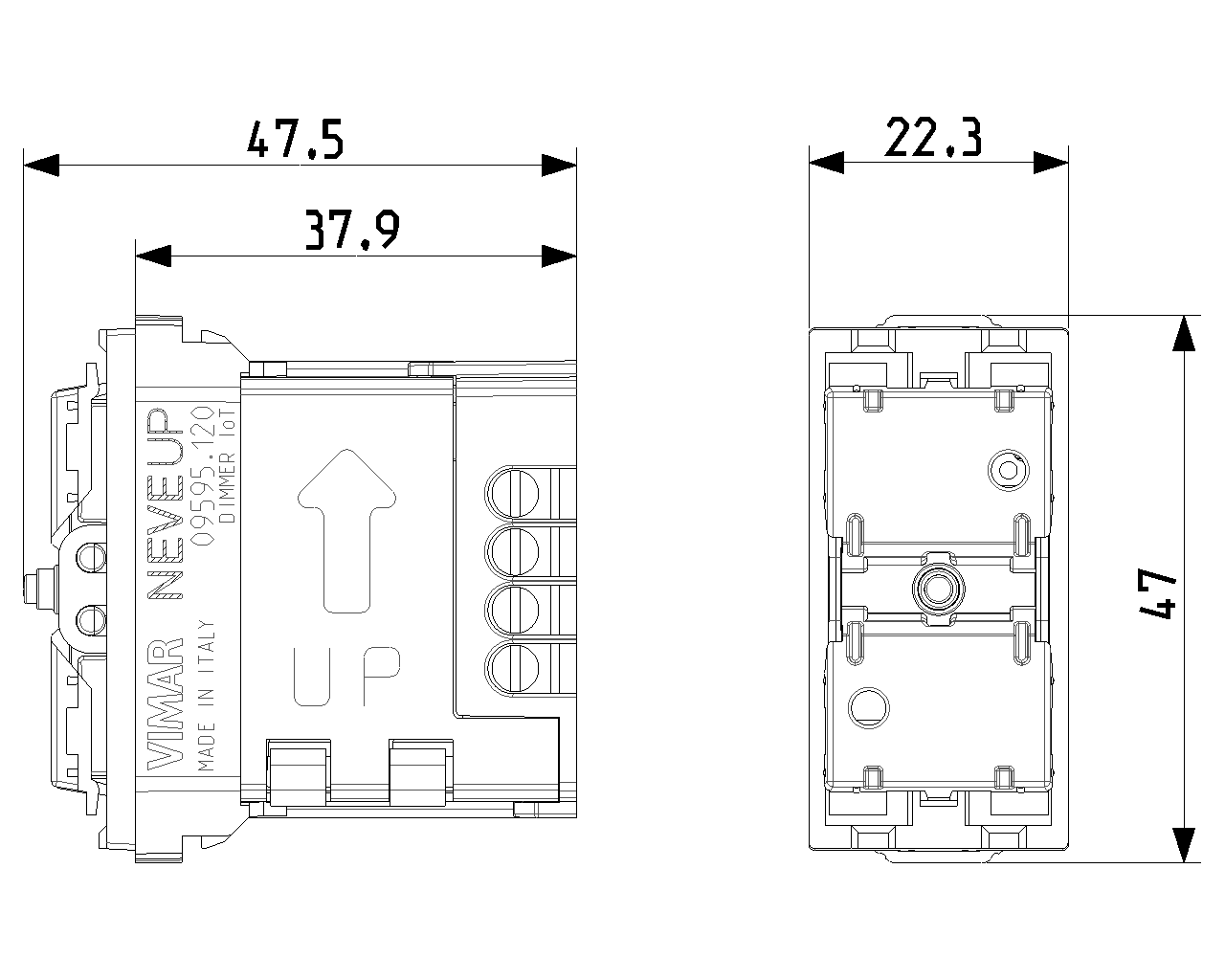

Device width
22,30 mm
22,30 mm
Device height
47,00 mm
47,00 mm
Device depth
47,40 mm
47,40 mm
Built-in depth
37,90 mm
37,90 mm
Min. depth of built-in installation box
40,00 mm
40,00 mm
Compatible with Apple HomeKit
Yes
Yes
Compatible with Google Assistant
Yes
Yes
Compatible with Amazon Alexa
Yes
Yes
IFTTT support available
Yes
Yes
00. CE Marking - EU
42. Zigbee certified
Minimum order quantity: 1 NR
Barcode
8007352732308
1 NR
5.2x3.5x5.3 [cm]
48.8 [g]
8007352732315
60 NR
27x23x12.5 [cm]
3,116 [g]
