Plate 6M (2+2+2)x71 techn.ivory - 09666.02

Pdf

09666.02
Wiring devices / Traditional wiring devices / NEVE UP / Cover plates

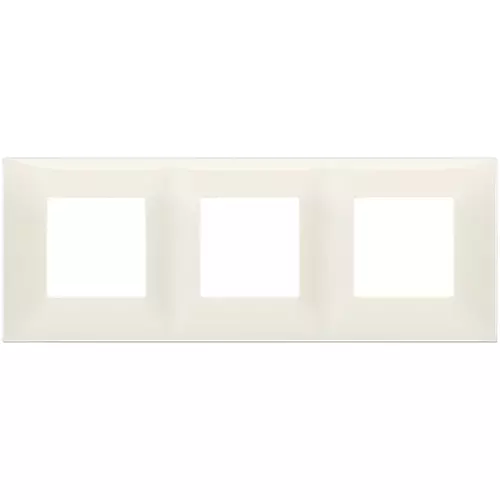

Plate 6M (2+2+2)x71 techn.ivory
6-module cover plate (2+2+2, distance between centres 71 mm), technopolymer, ivory

Product Status
3 - Active

You may also be interested in

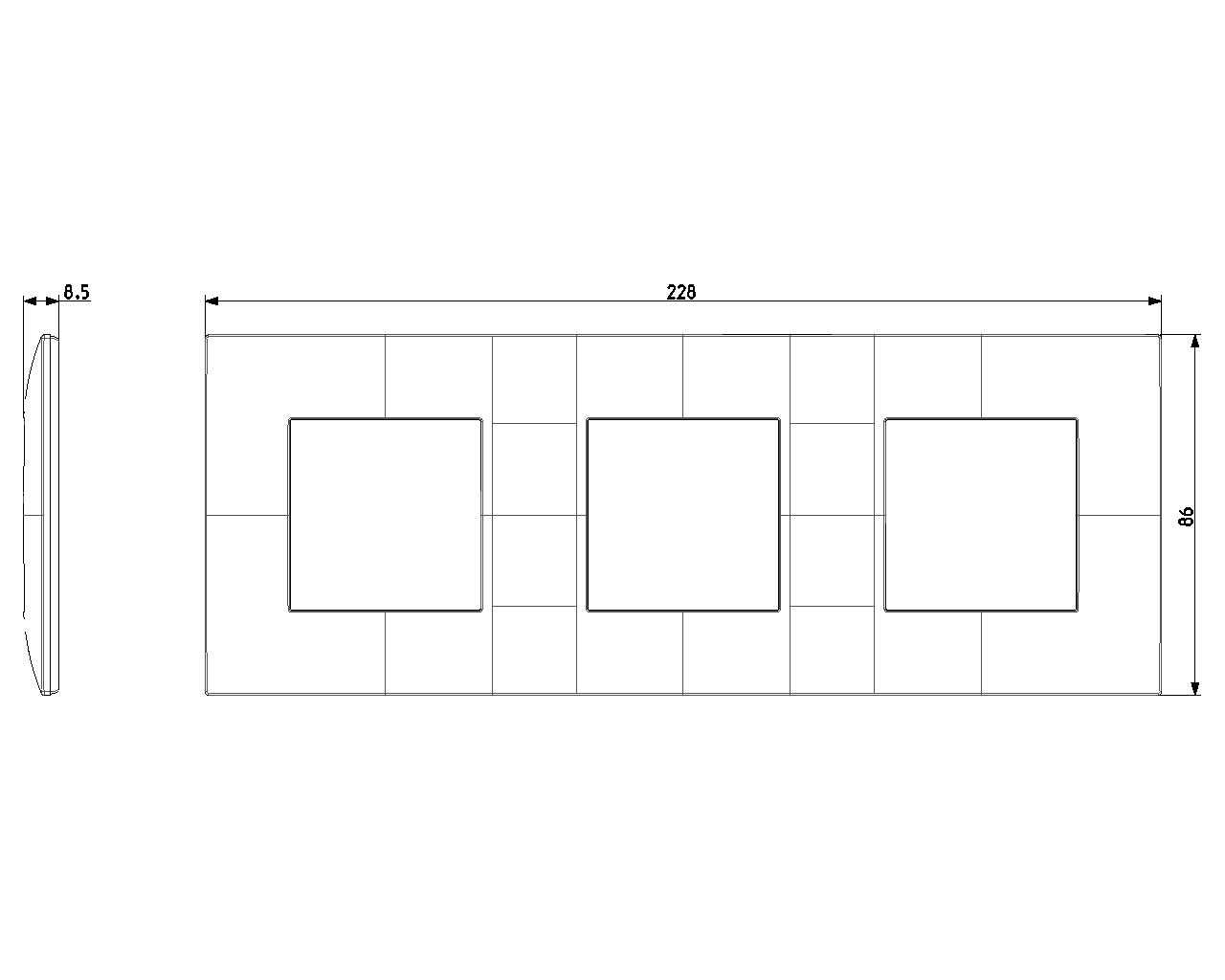

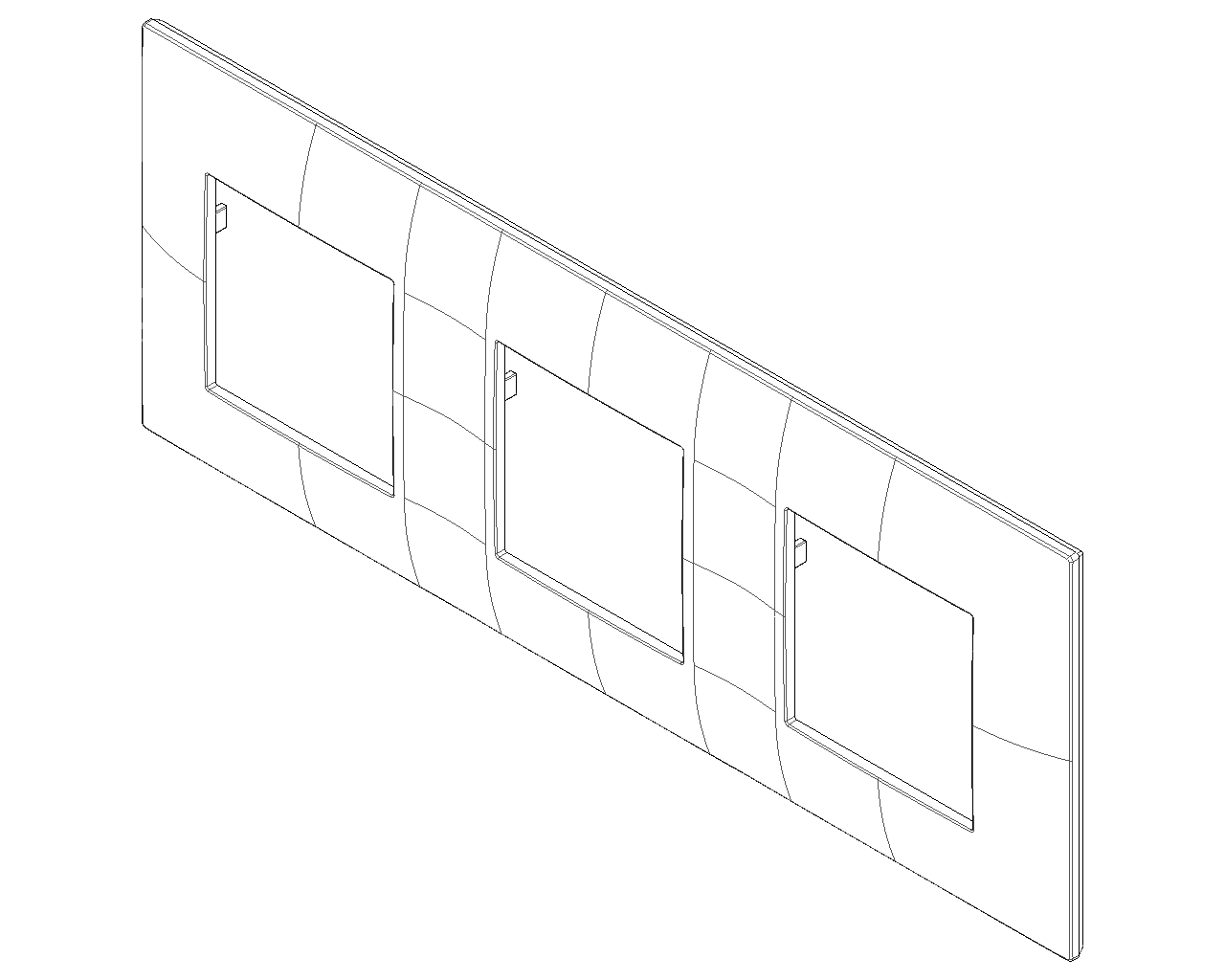

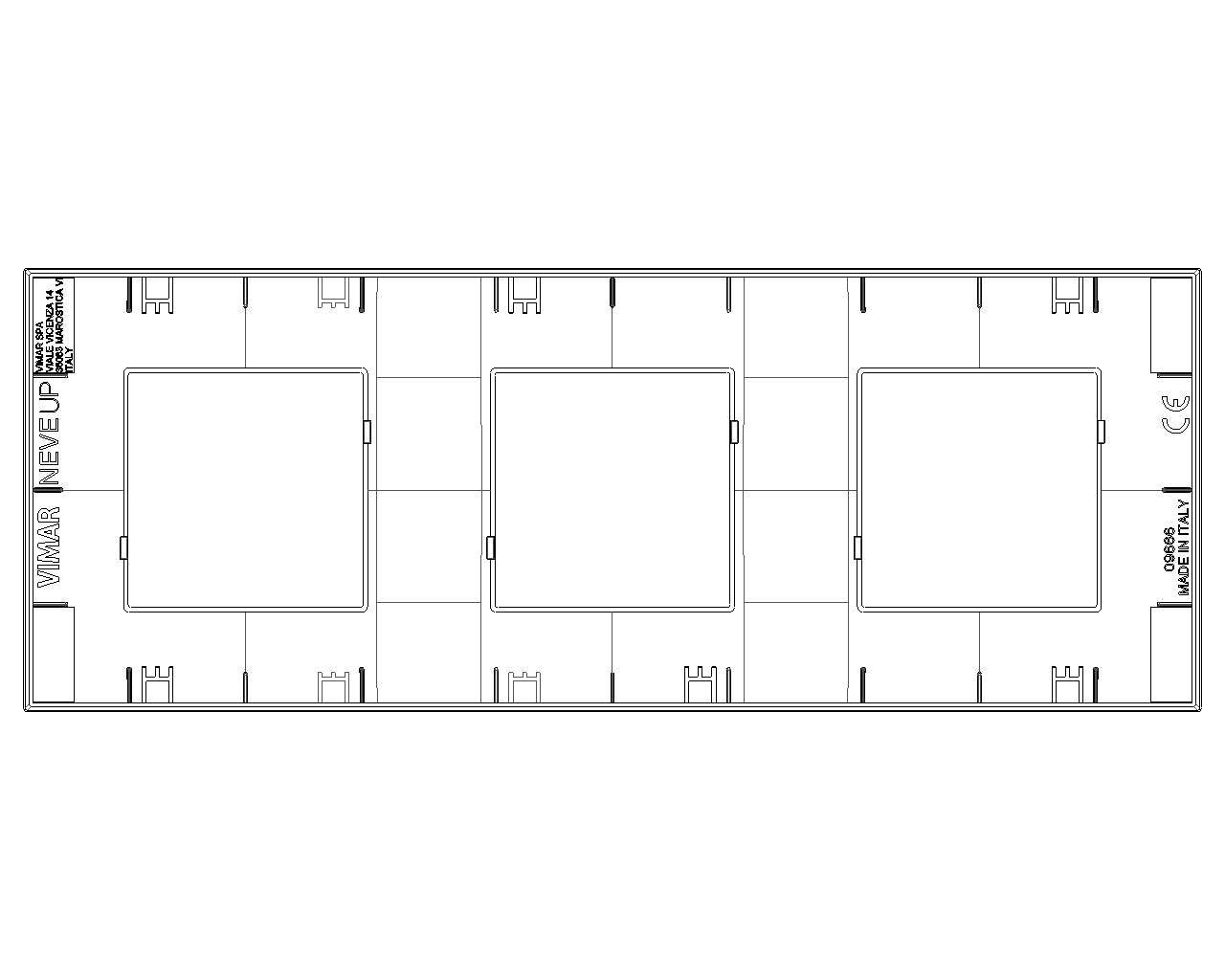

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
1013
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
224,00 mm
Height
86,00 mm
Depth
8,50 mm
Built-in width
224,00 mm

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352660403
1 NR
25x9x0.5 [cm]
33.07 [g]
Barcode Qty 5 NR
8007352660410
5 NR
10x4.5x29 [cm]
205 [g]
Barcode Qty 190 NR
8007352706132
190 NR
59.5x38.5x26.5 [cm]
7,790 [g]
