Classica plate 3M metal slate grey - 16733.46

16733.46

Idea / Cover plates / Metal Classica cover plates

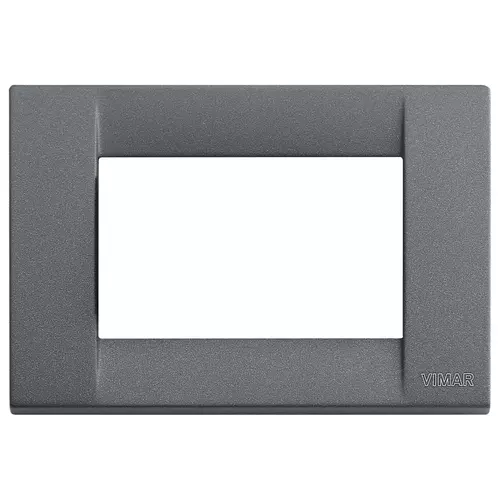

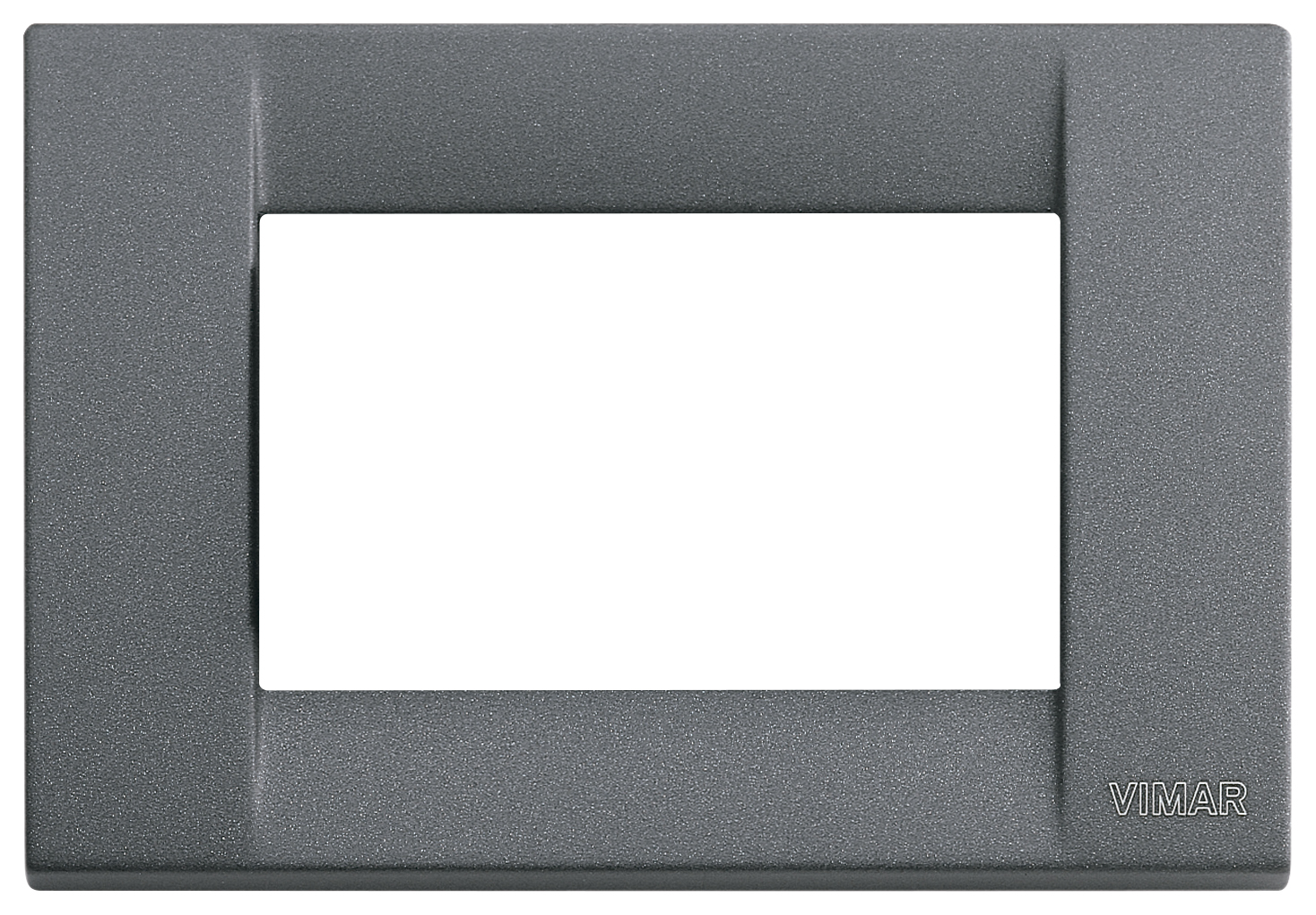

Classica plate 3M metal slate grey
3-module Classica cover plate, die-cast metal, slate grey

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devic
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (
3
Number of modules vertical (mo
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted ins
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installa
No
Label space/information surfac
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
9,25 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 1 NR

Barcode

8007352031173
1 NR
12.5x8.5x1.1 [cm]
114.28 [g]
8007352031180
10 NR
13.5x12.4x9.2 [cm]
1,200 [g]
8007352369061
80 NR
37.5x30x13.5 [cm]
9,600 [g]

Didn't find the answer you were looking for?

Ask a question

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
