Classica plate 1Mpan techn.graph.grey - 16786.15

Pdf

16786.15
Wiring devices / Traditional wiring devices / IDEA / Cover plates

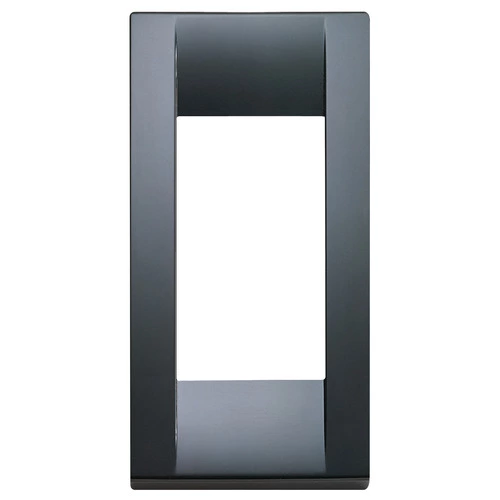

Classica plate 1Mpan techn.graph.grey
1-module Classica cover plate, technopolymer, for panel mounting, graphite grey

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Anthracite
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
40,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
40,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352080966
1 NR
4x8x0.9 [cm]
7.2 [g]
Barcode Qty 10 NR
8007352080973
10 NR
12.3x9.6x5.1 [cm]
104.73 [g]
Barcode Qty 240 NR
8007352637979
240 NR
59x38.5x30 [cm]
3,246 [g]
