Two half-buttons 2M I symbol grey - 16842.1

Pdf
Vimar - 16842.1 - Two half-buttons 2M I symbol grey
Vimar - 16842.1 - Two half-buttons 2M I symbol grey

16842.1
Smart systems&products / KNX / IDEA / Buttons

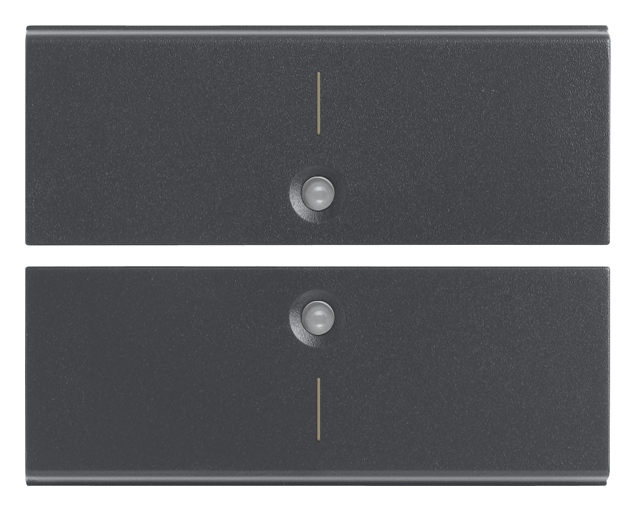

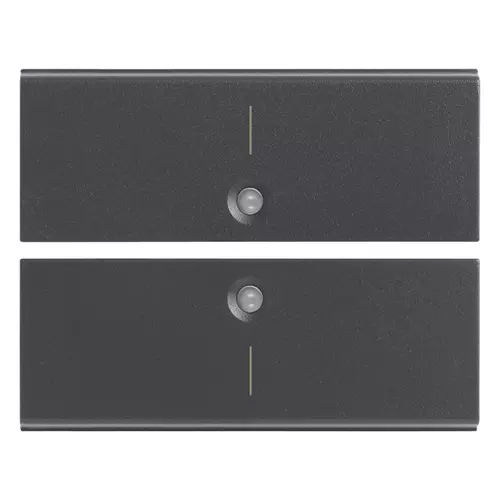

Two half-buttons 2M I symbol grey
Two interchangeable half-buttons, 2 modules, I symbol, grey

Product Status
3 - Active

Drawings

view encumbered art. 16842.1
PNG DXF
rear view art. 16842.1
PNG DXF
3D view art. 16842.1
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
Two-part button
Imprint/indication
Symbol ˝1˝
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
650,00 mm

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352384668
1 NR
5x3.7x0.6 [cm]
4.54 [g]
Barcode Qty 6 NR
8007352384675
6 NR
14.2x6.7x5.9 [cm]
58.15 [g]
