Wiring devices / View Wireless wiring devices / ARKÉ / Devices
IoT connected dimmer mechanism 220-240V
- Compatible with both LE and TE dimmable lamps
- Also configurable as a 1-way switch pending the installation of a dimmable lamp
- Bluetooth mode compatible with Amazon Alexa, Google Assistant, Apple Homekit and IFTTT voice assistants, via the dedicated Vimar gateway
- Zigbee mode compatible with the Amazon Alexa voice assistant, via Amazon Zigbee hub
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Foglio istruzioni multilingua Full (677 kb)
- Feuille d’instructions multilangues Full (677 kb)
- Hoja de instrucciones multilingüe Full (674 kb)
- Full Multilanguage instructions sheet (670 kb)
- Πολυγλωσσικό φύλλο οδηγιών Full (878 kb)
- Mehrsprachig-Gebrauchsinformation Full (675 kb)
- ورقة الإرشادات Full (750 kb)
- Light multilanguage instructions sheet (1024 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)

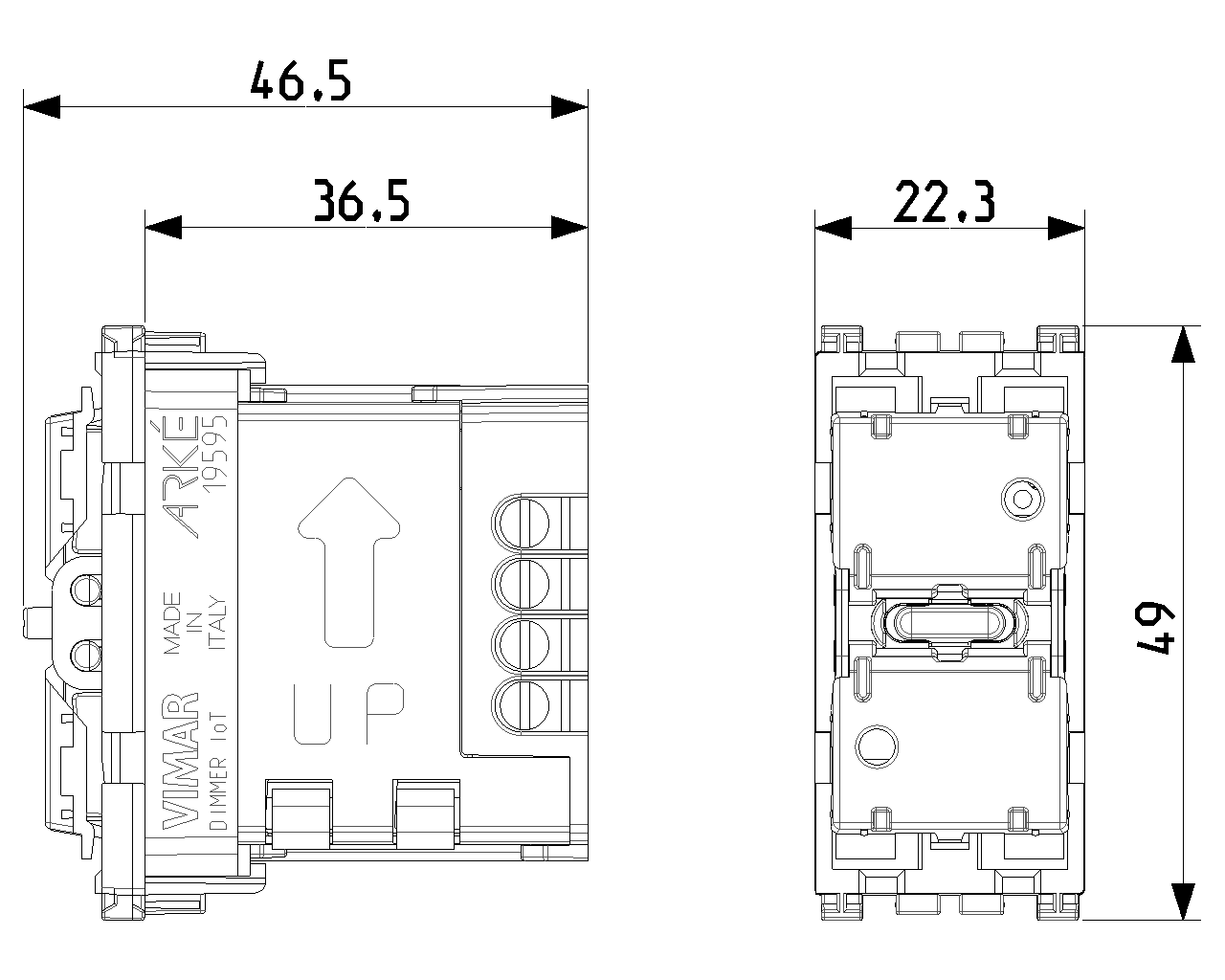

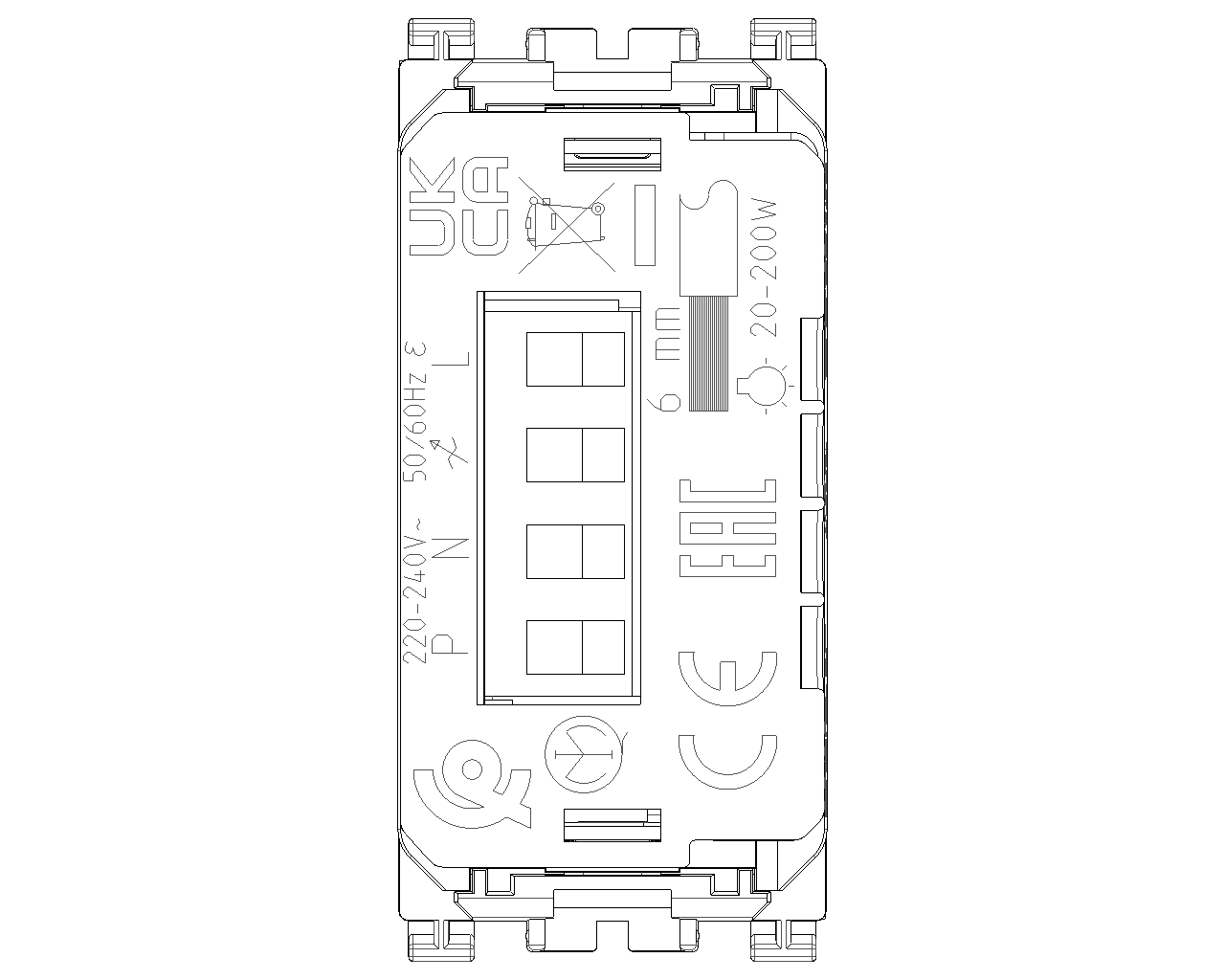

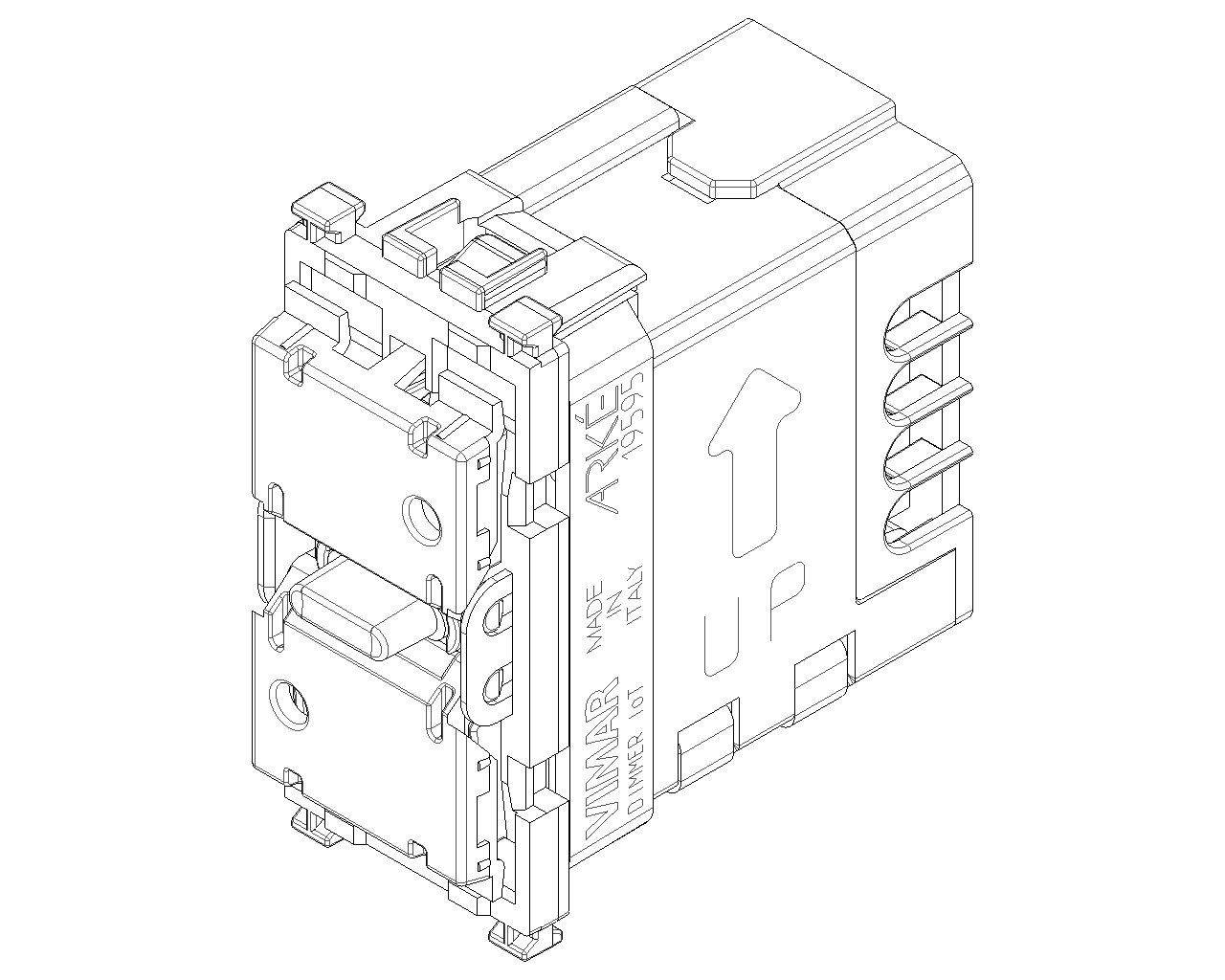

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Other
Other
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Blue
Blue
RAL-number (similar)
7015
7015
Label space/information surface
No
No
Lighting
Yes
Yes
Function lighting
Other
Other
Type of lighting
LED not exchangeable
LED not exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
240 V
240 V
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No
Device width
22,20 mm
22,20 mm
Device height
49,00 mm
49,00 mm
Device depth
46,40 mm
46,40 mm
Built-in depth
36,50 mm
36,50 mm
Min. depth of built-in installation box
41,00 mm
41,00 mm
Compatible with Apple HomeKit
Yes
Yes
Compatible with Google Assistant
Yes
Yes
Compatible with Amazon Alexa
Yes
Yes
IFTTT support available
Yes
Yes
00. CE Marking - EU
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
92. RoHS UAE
Minimum order quantity: 1 NR
Barcode

8007352707672
1 NR
5.2x3.5x5.3 [cm]
52.24 [g]

8007352707689
60 NR
27x23x12.5 [cm]
3,318 [g]
