Connected RFID outer switch Next - 20462.N

20462.N
Wiring devices / View Wireless wiring devices / EIKON / Devices

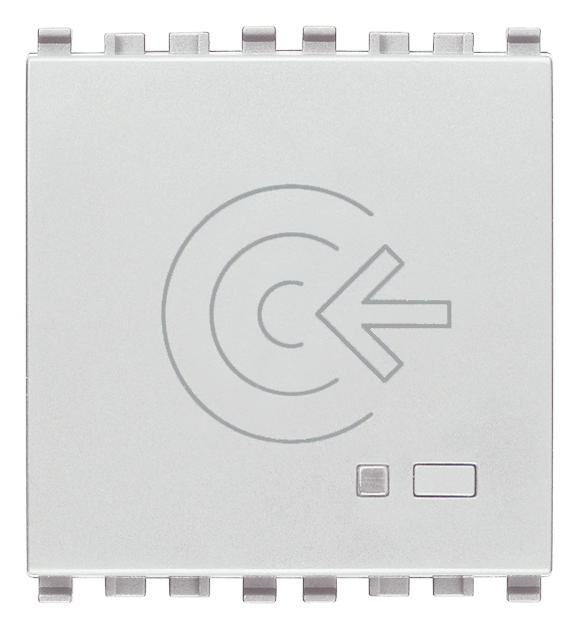

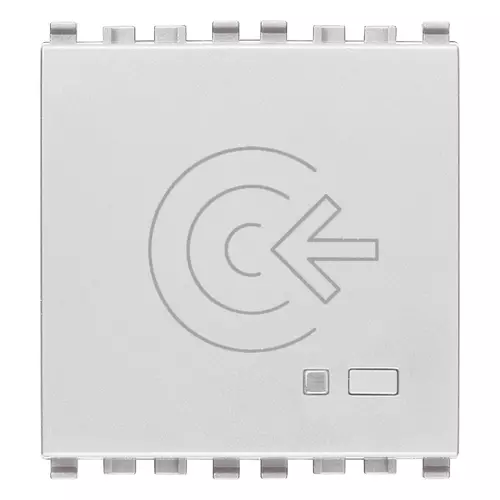

Connected RFID outer switch Next
RFID smart card landing reader, card configuration using View Wireless App, Bluetooth technology standard, IoT technology on Bluetooth technology 5.0 standard for the creation of View Wireless mesh system, 1 relay output NO 16 A 120-240 V~ 50/60 Hz, 1 DND input, LED with brightness control, 100-240 V~ 50/60 Hz power supply, Next - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (780 kb)
• Full Multilanguage instructions sheet (1333 kb)
• Manuale app View Wireless (15556 kb)
• Manuel appli View Wireless (37703 kb)
• Manual app View Wireless (37528 kb)
• Manual View Wireless app (37579 kb)
• Εγχειρίδιο τεχνικού εγκατάστασης (37781 kb)
• Installationsanleitung View Wireless (37508 kb)
• Manuale installatore Portale View Vimar (3245 kb)
• Manuel Portail View Vimar (2101 kb)
• Manual Portal Vimar View (2069 kb)
• Vimar View Portal installer manual (2173 kb)
• Εγχειρίδιο χρήσης Πύλη View Vimar (2210 kb)
• Bedienungsanleitung Portal View Vimar (2182 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Access control system

Standalone
Yes

Networkable
No

PC-binding
No

Type of interface
Other

Max. number of persons
200

Reading strategy
Code

Signalling
Light signal

Mounting method
Flush-mounted

Operating voltage AC 50 Hz
230,00 - 230,01 V

Operating voltage AC 60 Hz
230,00 - 230,01 V

Degree of protection (IP)
IP20

Colour
Silver

Model
Reader

Material
Plastic

Power over Ethernet (PoE)
Other

Width
44,90 mm

Height
49,00 mm

Depth
41,50 mm

00. CE Marking - EU

37. Marking - Morocco

40. Bluetooth technology

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352659896

1 NR

6x5.4x5.2 [cm]

74.8 [g]

8007352663244

10 NR

28.1x13.1x6 [cm]

824.8 [g]
