Plate 8(4+4)M crystal aqua - 21668.71

Pdf
21668.71

Eikon EVO / Cover plates / Crystal cover plates

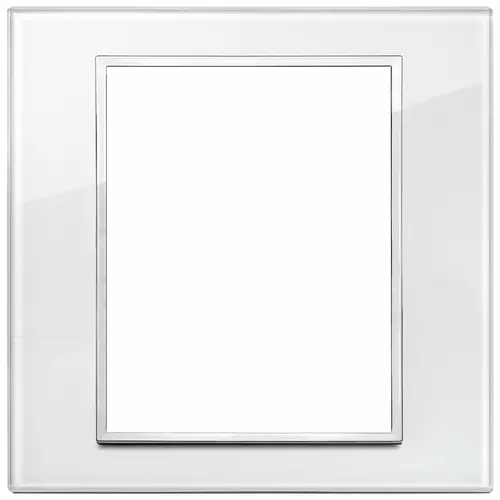

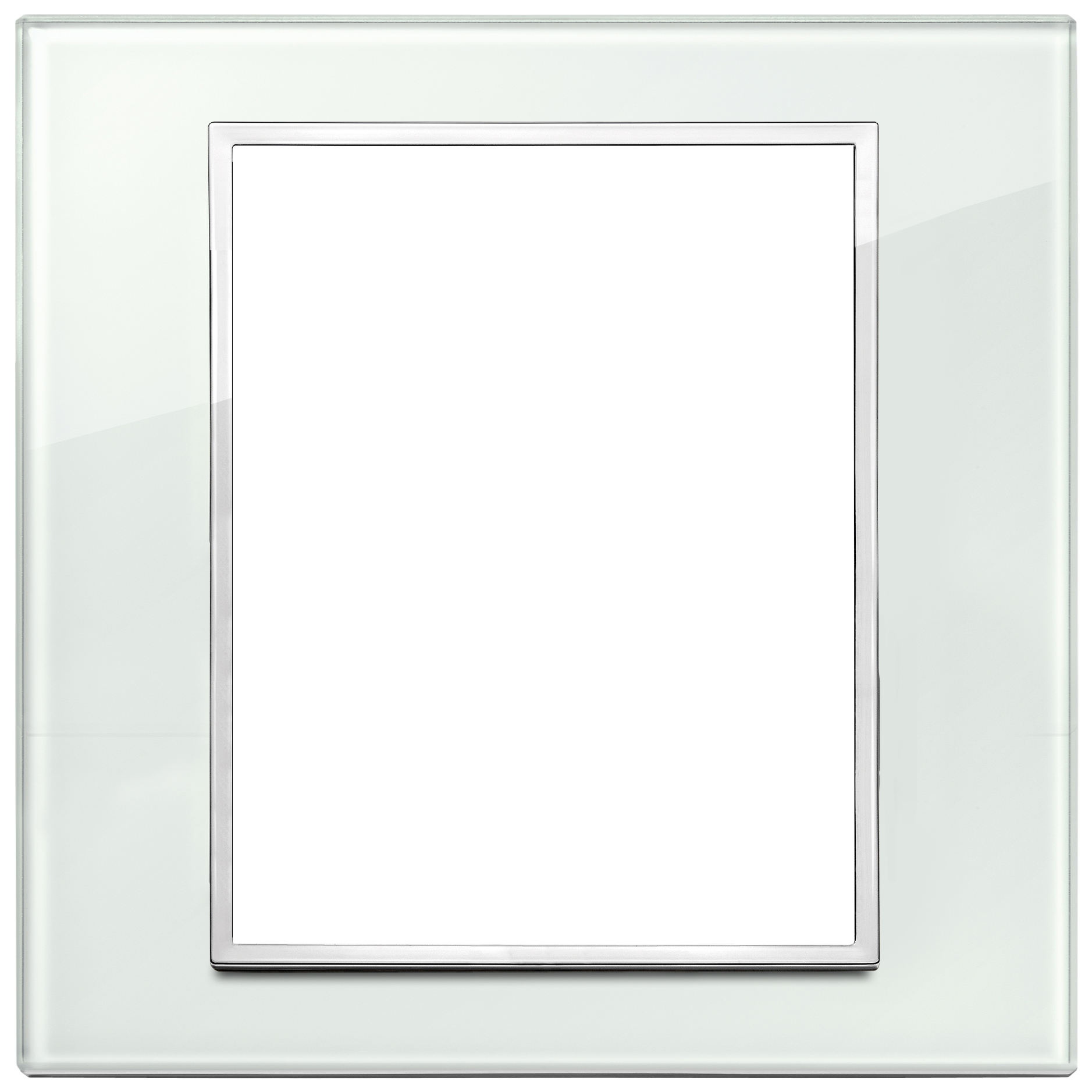

Plate 8(4+4)M crystal aqua
8 (4+4)-module cover plate, crystal, water

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Glass
Material quality
Real glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Cream white (electro white)
RAL-number (akin)
9018
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
155,20 mm
Height
155,20 mm
Depth
10,50 mm
Built-in width
155,20 mm
Built-in height
155,20 mm
Diameter bore hole (opening)
0 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352419834
1 NR
18.5x18.4x3.3 [cm]
247 [g]
