Button 2M key symbol canvas - 31000.2PC

Pdf
Vimar - 31000.2PC - Button 2M key symbol canvas
Vimar - 31000.2PC - Button 2M key symbol canvas

31000.2PC
Wiring devices / Traditional wiring devices / LINEA / Buttons

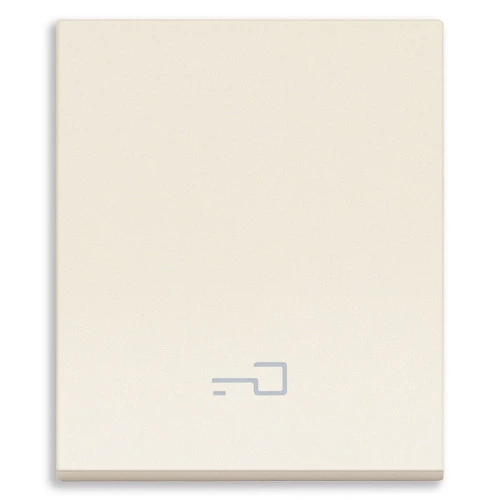

Button 2M key symbol canvas
Aligned 2-module interchangeable button, lightable key symbol, canvas

Product Status
3 - Active

You may also be interested in

30000.2
30000.2 - Axial 1P 10AX 1-way switch mechanism 2M
30004.2
30004.2 - 1P 10AX 2M axial 2-way switch mechanism
30008.2
30008.2 - 1P NO 10A 2M axial button mechanism
30012.2
30012.2 - 1P 10AX 2M axial reversing switch mech.

Drawings

view encumbered art. 31000.2PC
PNG DXF
rear view art. 31000.2PC
PNG DXF
3D view art. 31000.2PC
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
Symbol ˝key/door˝
Scannable symbol/barrier free
No
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
Beige
RAL-number (similar)
7032
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Width
4.460,00 mm
Height
5.270,00 mm
Depth
800,00 mm

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

96. Electrotechnical expert

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352697089
1 NR
10x7.5x0.8 [cm]
6.9 [g]
Barcode Qty 10 NR
8007352697096
10 NR
11.2x9.2x9.8 [cm]
134 [g]
